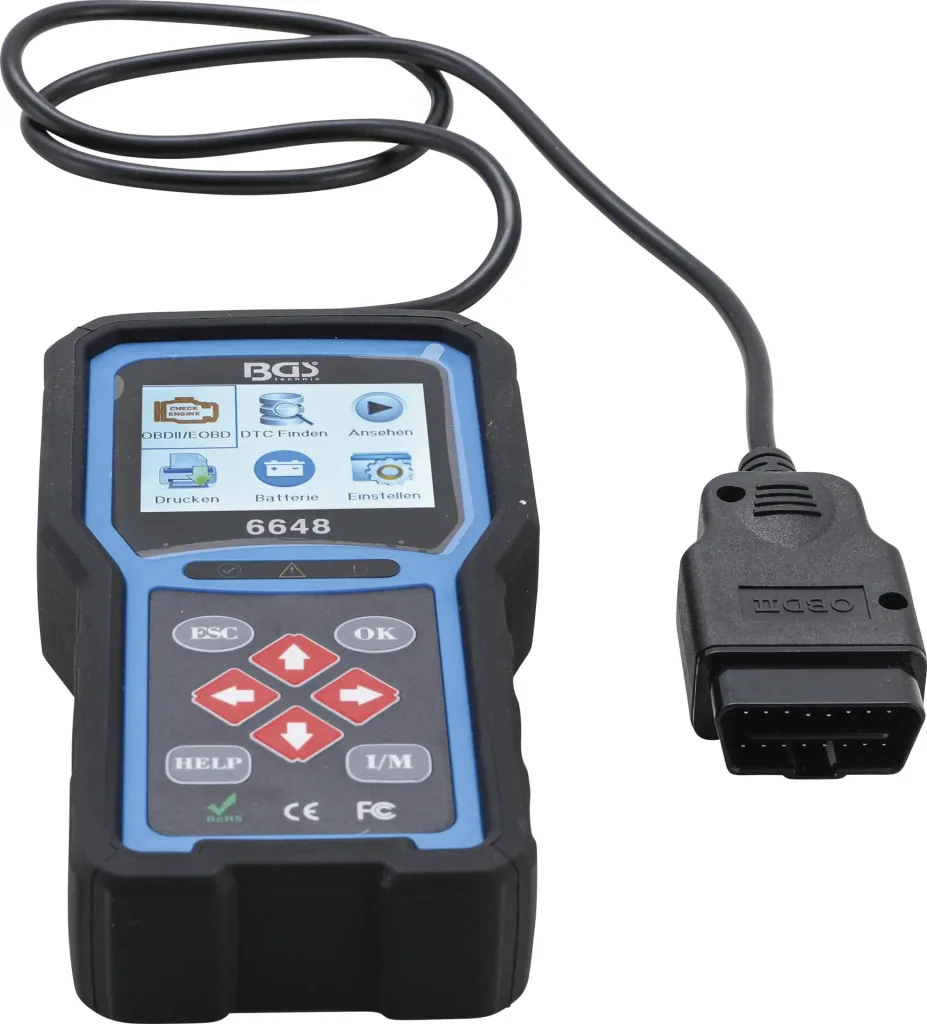

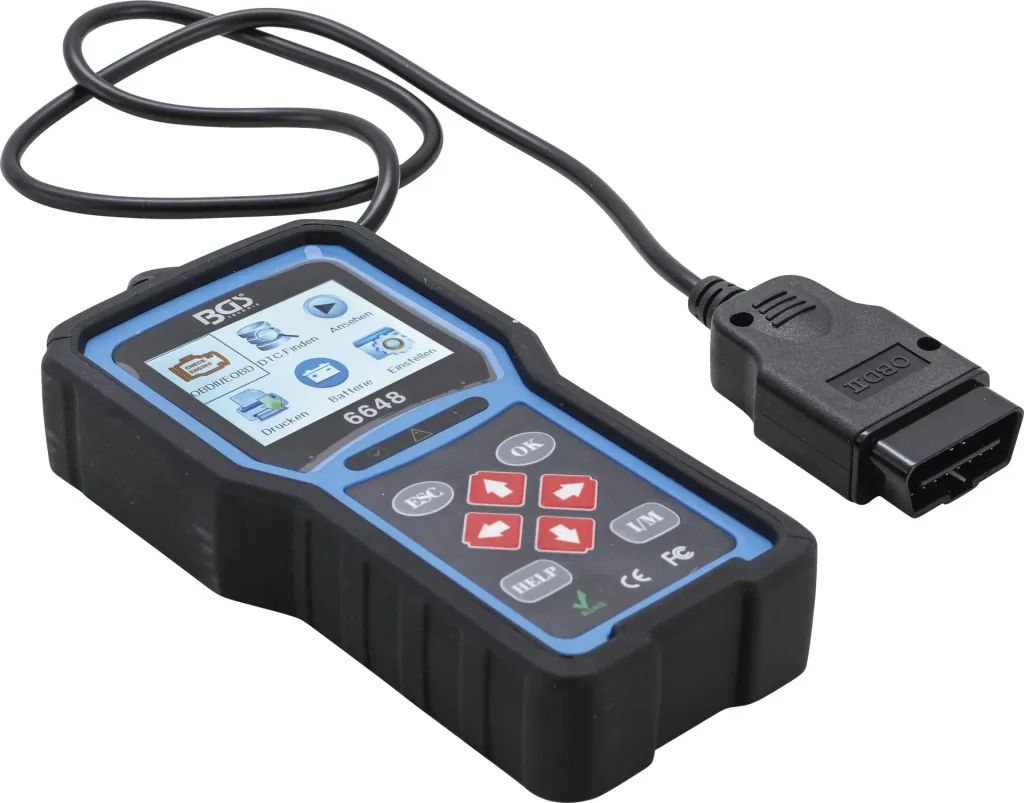

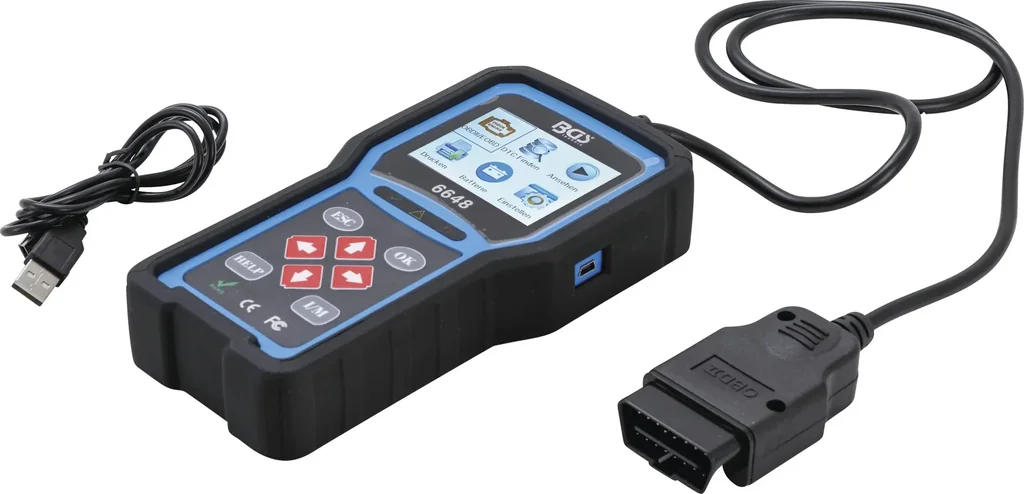

OBD II fault diagnostic device
About this item:
- Allows reading and clearing of OBD2 fault codes
- Easy to use
Guaranteed Secure Checkout
| Item number | WF-601667 |
| Brand | BGS |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Allows reading and deleting OBD2 error codes
- No error code list necessary, as all error codes are displayed in plain text
- Display of stored values (Freeze Frame), an important function for locating an error
- Reading of readiness codes, indicates the readiness of the emission systems
- Live data display allows reading of individual parameters in real time

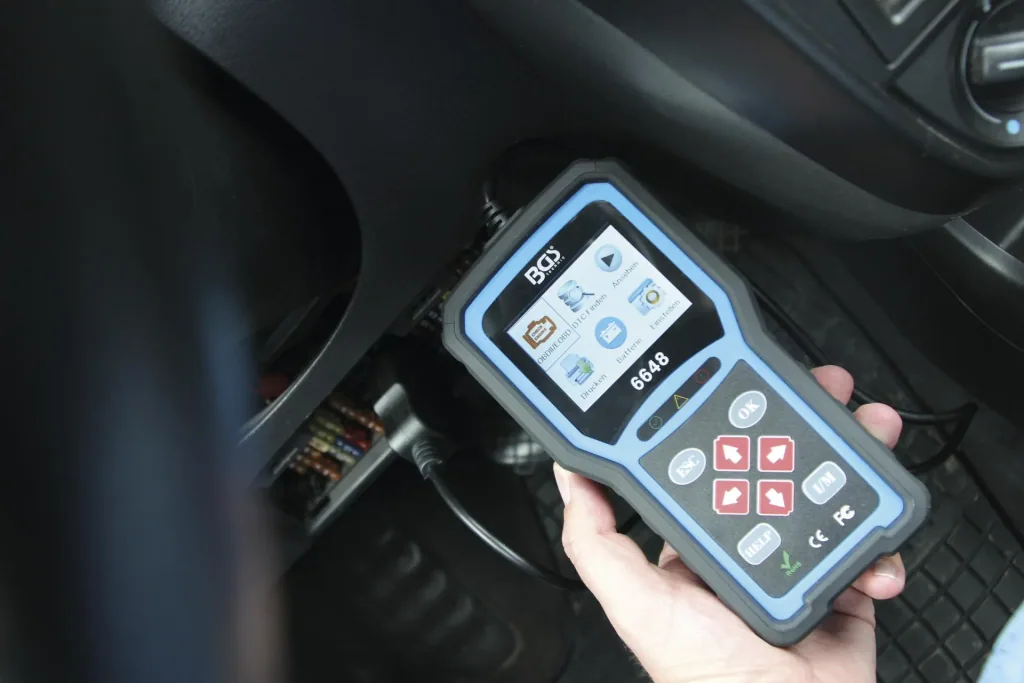

- Power supply via OBD2 socket (DLC) in the vehicle
- Easy to use
- Menu languages: German, English, French, Spanish, Italian
- OBD2 error codes = engine control error codes; reading of comfort and safety systems such as airbags, ABS, radio, seat heating, etc. is not possible
Technical data
- Display: 2.8-inch TFT color screen
- Operating temperature: 0 to 60°C
- Storage temperature: -20 to 70°C
- Power supply: 8-18 volt vehicle voltage
- Supported protocols: J1859-PWM, J1850-VPW, ISO9141, KWP2000 (ISO 14230) and CAN (Control Area Network ISO 11898)
Dimensions: 125 x 80 x 24 mm
Weight: 0.5 kg

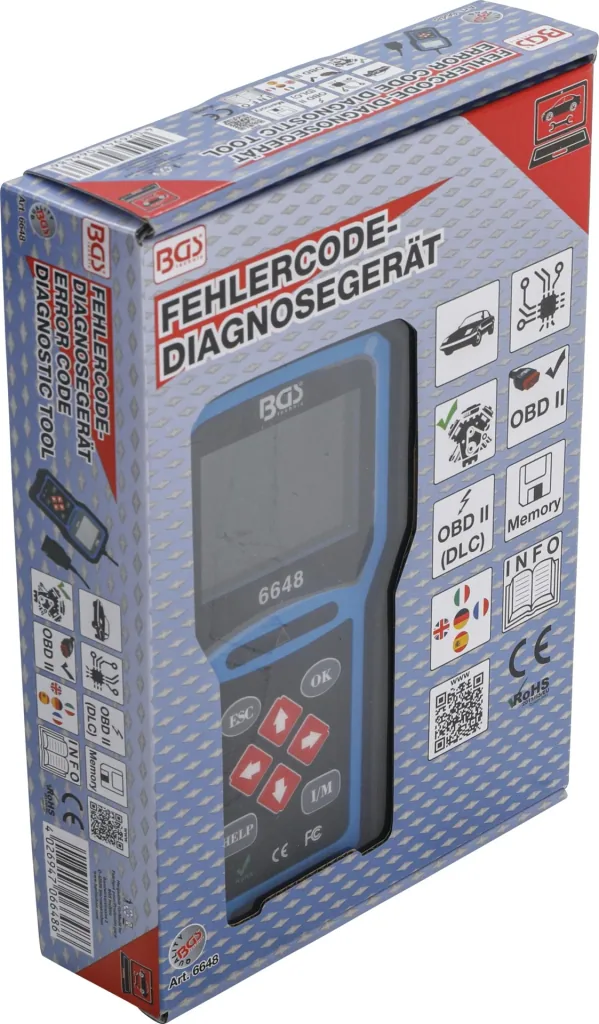

Scope of delivery: 1 x OBD II fault diagnostic device
| External dimensions | |
|---|---|
| External dimensions | 125x80x24 mm |
| Weight | |
| Weight | 0.5 kg |
