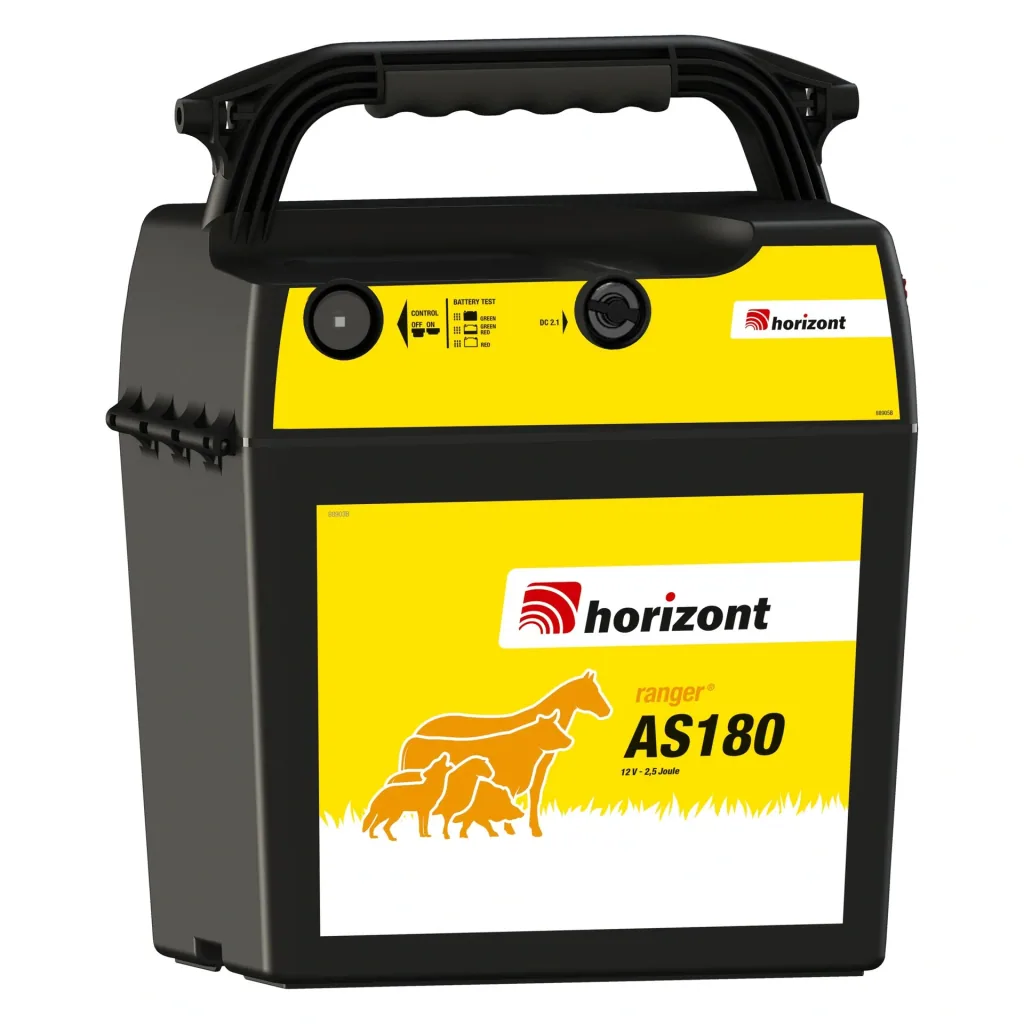

Solar electric fence energizer ranger AS180

The horizont AS devices are solar devices and offer the advantage of being delivered completely and therefore ready for immediate use. You can choose between four different angles of installation to ensure optimal use of solar energy. A transport position for the solar panel is also possible.

The horizont AS devices are delivered with a U-shaped ground stake. This can already secure the grounding on small pastures under favorable conditions. For larger pastures or dry soil conditions, additional galvanized T-shaped stakes at least 1 m long should be used. The U-shaped ground stake also ensures stability with these devices. The U-shaped ground stake allows the devices to be set up securely even in windy conditions and on uneven ground.

The installed solar modules are characterized by their high efficiency. This is evident in the small surface area with the nominal outputs of 20 and 30 watts. A solar charge controller is built into the devices.

The modules are mounted on a plastic carrier plate and covered with a transparent plastic layer. For stability, the modules are enclosed in a polycarbonate plastic frame.

In the modules of the horizont AS devices, the cells are placed closely together on the module to generate a lot of power in a relatively small area.

The battery indicator shows the capacity – the charge level – of the battery in three stages. If the capacity drops too much, for example, off-season – in the barn – the battery can be easily recharged using the included power adapter. The power adapter can be easily connected to the DC socket on the housing.

The new electric fence series is characterized by its ECO Power mode. The power-saving circuit automatically adjusts power consumption to the condition of the fence, resulting in less energy consumption, less pollution, and lower costs. In addition, the electric fence energizer automatically switches to solar operation, which eliminates the strain on the other power source. The solar charging controller is installed in a weatherproof manner and guarantees trouble-free charging of various battery types. Furthermore, the electric fence energizer is controlled by a microprocessor.

The modules are mounted on a plastic carrier plate and coated with a transparent plastic layer. For stability, the modules are enclosed in a polycarbonate plastic frame. This makes the entire unit more flexible, yet still highly stable.

• High-impact device - ideal for fence lengths of up to 14 km and higher demands
• 11,100 volts maximum voltage, 2.5 joules input / 1.8 joules output
• Environmentally friendly use of solar energy + compact unit of electric fence energizer and 30 W solar module
• Integrated eco-saving circuit automatically adjusts power consumption to the fence condition
• Dual device - 230 V / 12 V parallel operation
• Ideal for calm grazing animals and normal operating conditions
• Mount for solar module with 4 different angles and a transport position
• Solar charging control built into the device, weatherproof - easy charging of various battery types
• Particularly stable housing, impact-resistant plastic with UV stabilizer
• Integrated Ground stake
• Secure installation of the device even in windy conditions and on uneven ground thanks to the U-ground stake
• 3-stage battery capacity indicator
• High efficiency of the built-in solar modules
• Plastic frame made of polycarbonate
• The modules are mounted on a plastic carrier plate and covered with a transparent plastic layer

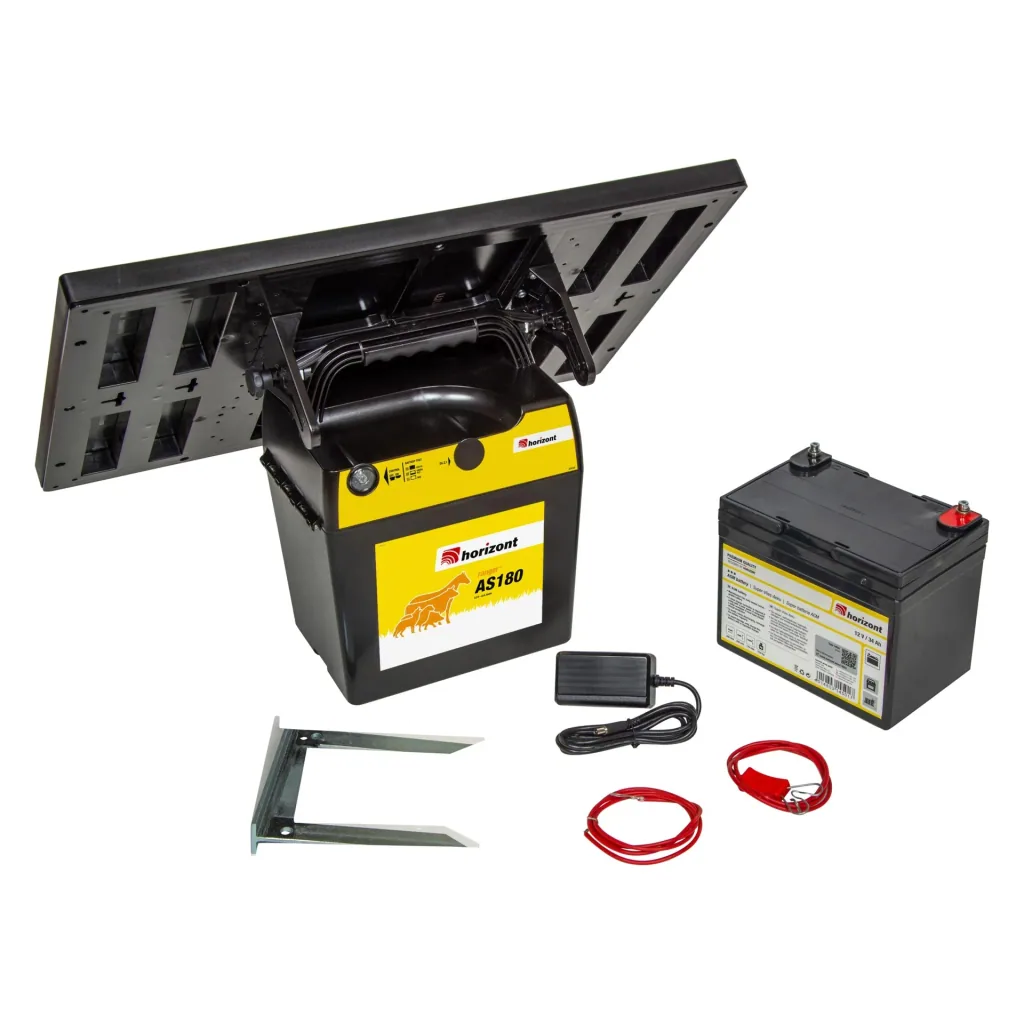

Scope of delivery:

• Electric fence energizer
• 30-watt solar module
• 12 V/34 Ah battery
• Ground stake (double spike)
• Fence and ground connection cable
• Power adapter
