Big Wheeler 514.3 R LI-ES lawn mower - 4.8 HP - 51 cm
Guaranteed Secure Checkout
| Item number | WF-602577 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- 4-stroke Power-Engine engine
- Sturdy powder-coated sheet steel chassis
- Li-Ion electric starter
- Reverse starter

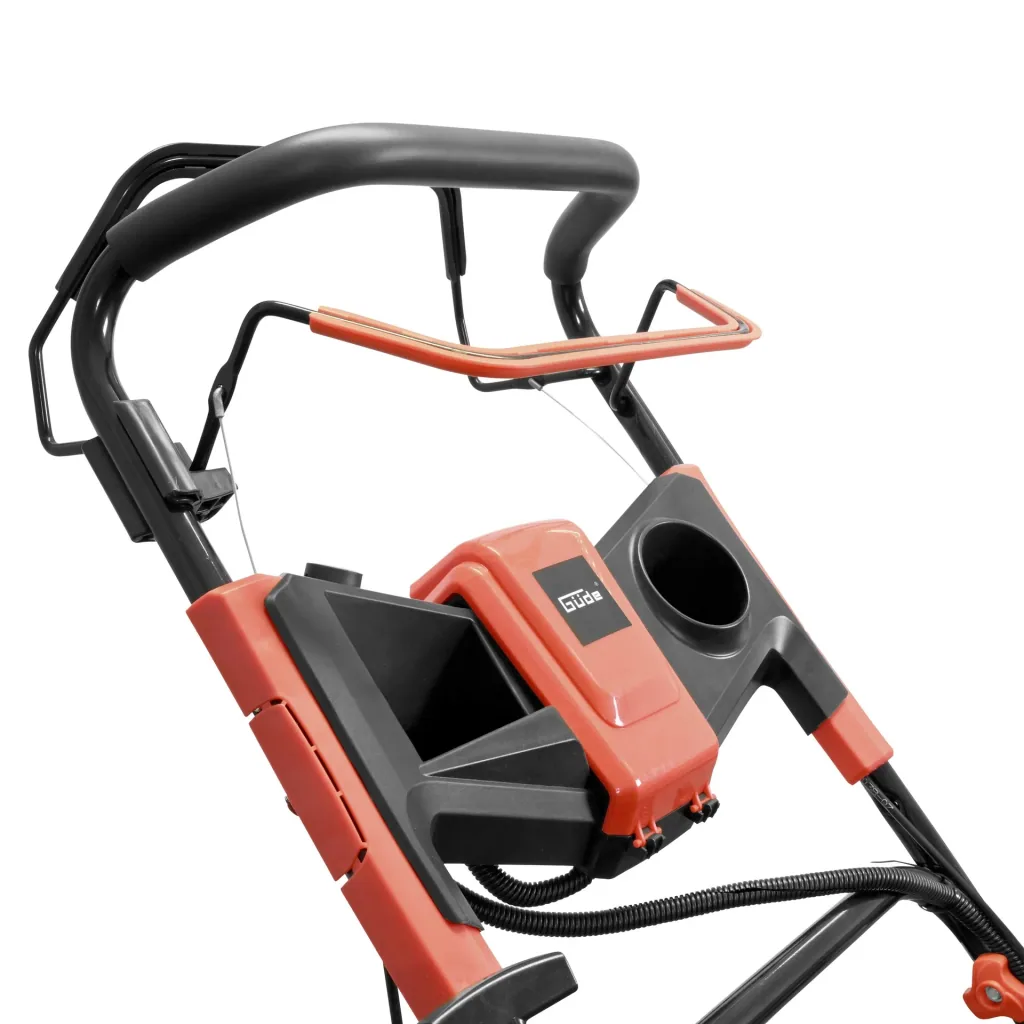

- Ergonomically shaped handlebar

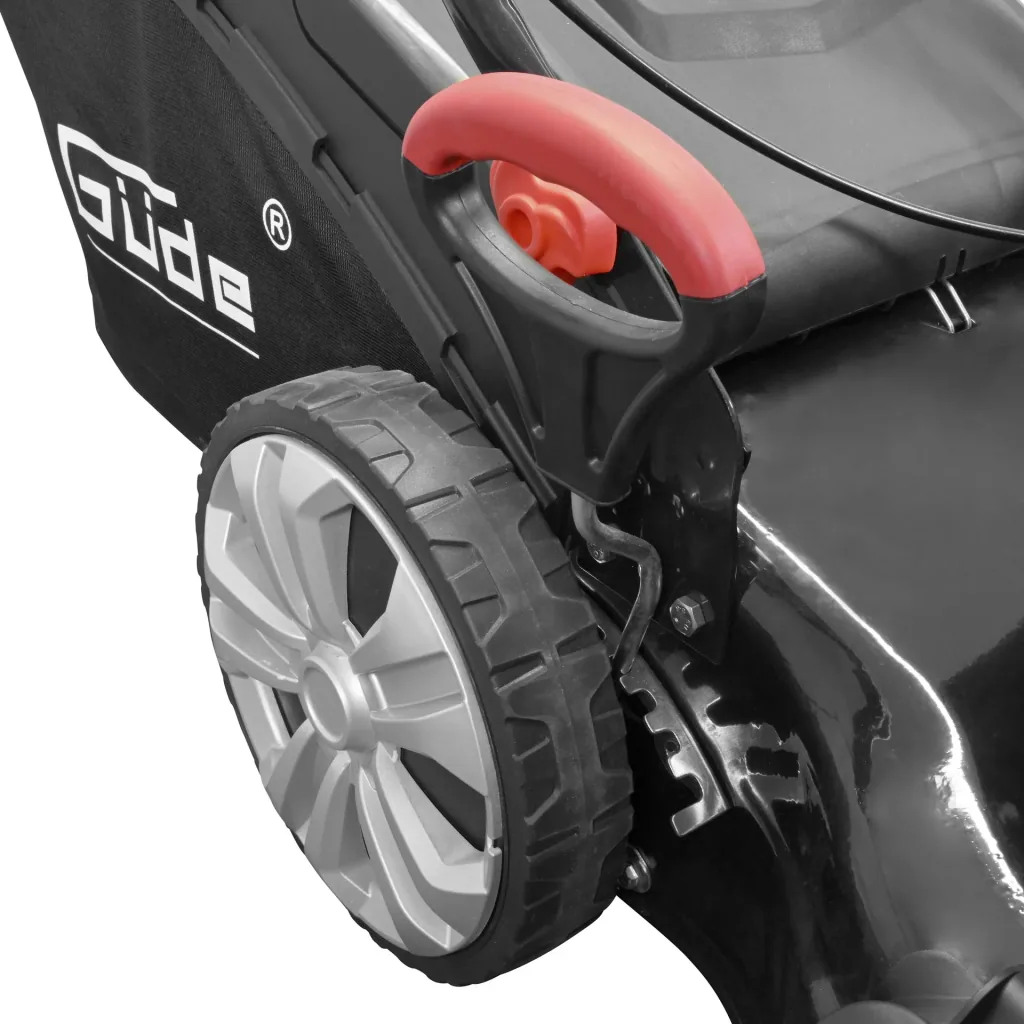

- 8-way central cutting height adjustment
- 60-liter grass catcher bag
- 254 mm Ø rear wheels and 178 mm Ø front wheels
- Mulching plug

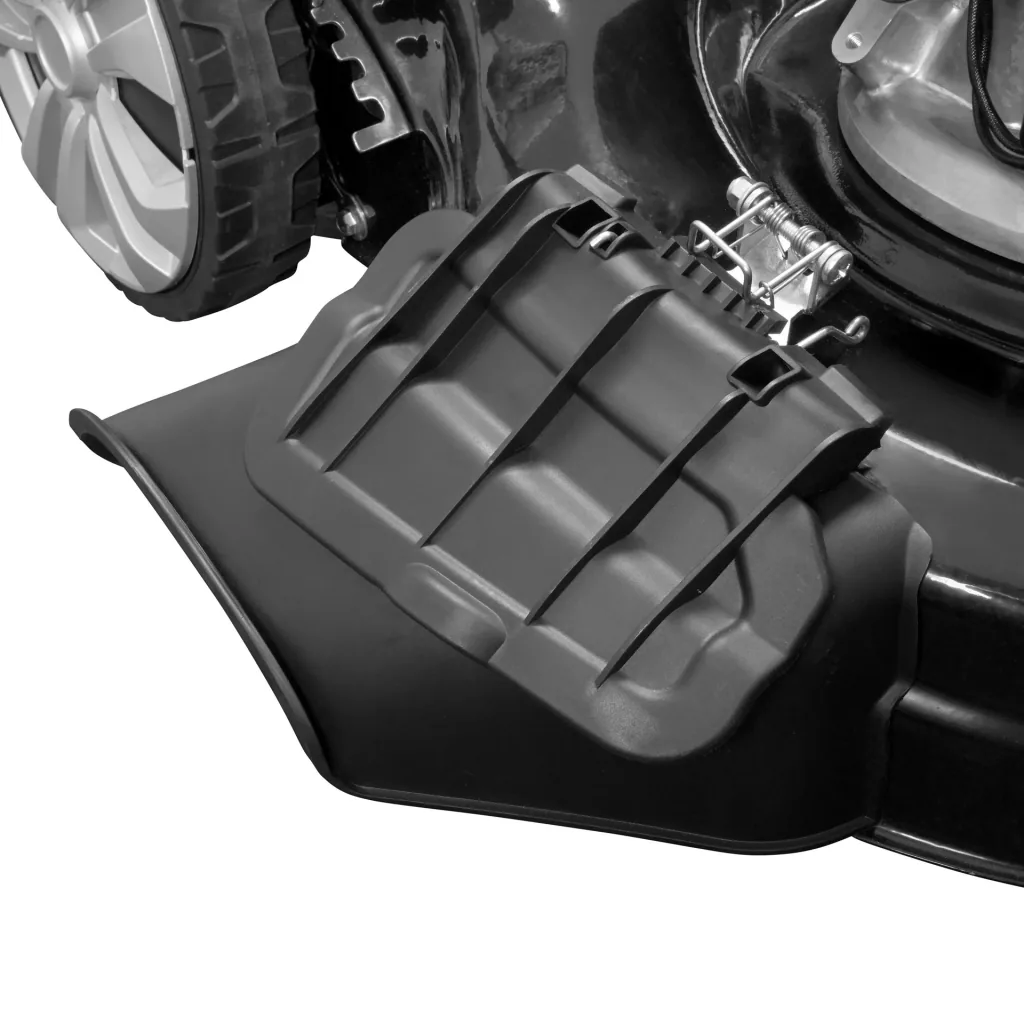

- Side discharge
Technical specifications

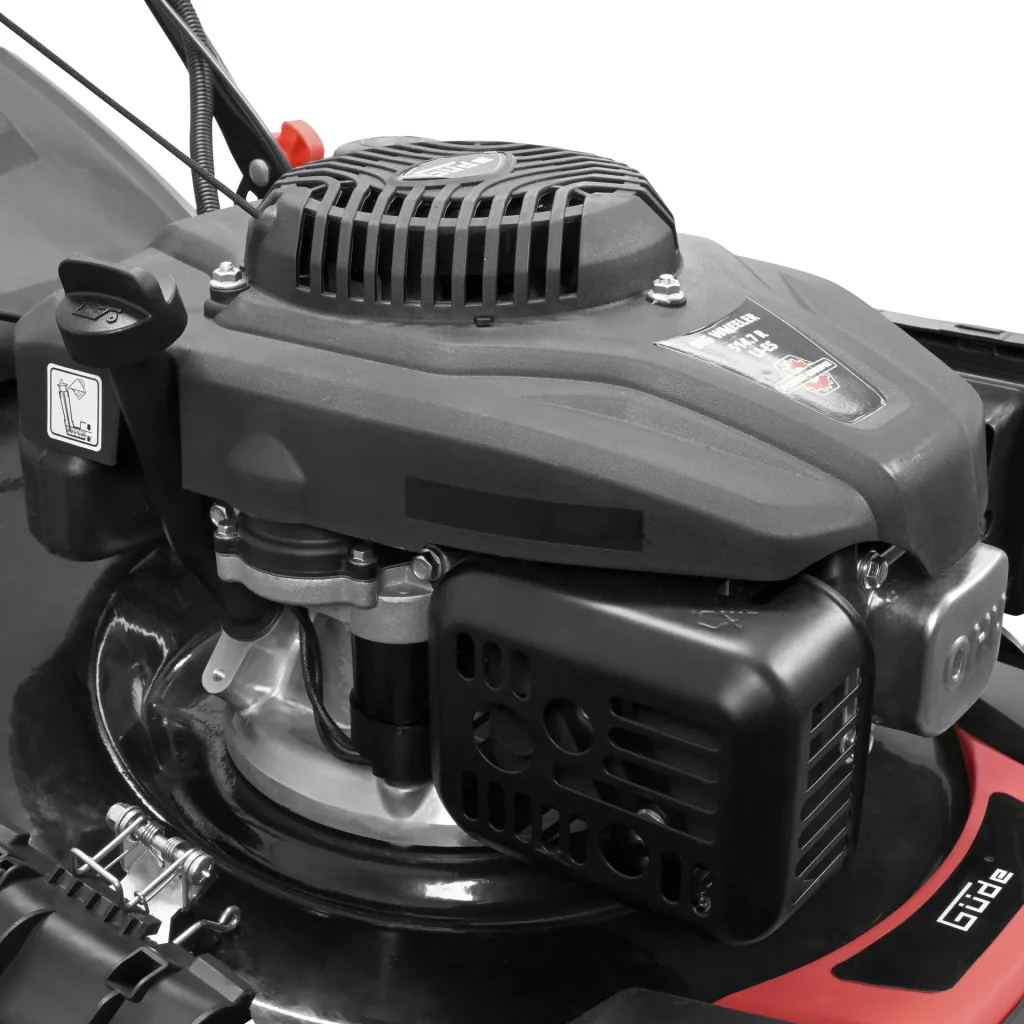

- Engine: Power-Engine S 592 EV
- Engine type: 4-stroke
- Engine power: 3.5 kW - 4.8 HP
- Displacement: 196 cm³
- Rated speed: 3000 rpm
- Working speed: 3.6 km/h
- Tank capacity: 1 liter
- Fuel: Gasoline
- Starting system: Electric and recoil start
- Engine oil: 0.5 liters
- Engine oil type: 10W40
- Battery:
- Battery voltage: 12 volts
- Battery type: Li-Ion
- Battery capacity: 2 Ah
- Battery power: 24 Wh
- Charger:
- Input voltage: 100-240 volts
- Charger frequency: 50-60 Hz
- Output voltage: 12.6 volts
- Output current: 0.8 A
- Charger protection class: II
- Noise level LWA: 98 dB
Dimensions
- Lawn mower Big Wheeler 514.3 R LI-ES (L x W x H) 1560 x 650 x 1020 mm
- Cutting width: 508 mm
- Collector volume: 60 Lier
- Type of cutting height adjustment: Central 8-way
- Cutting height adjustment: 25-80 mm
- Tire size rear: 254 mm
- Tire size front: 178 mm
Color: black/red
Material: metal/plastic
Scope of delivery: 1 x Lawn mower Big Wheeler 514.3 R LI-ES - 4.8 HP - 51 cm
| Oil tank capacity | |
|---|---|
| Oil tank capacity | 0.5 l |
| Discharge | |
| Discharge | Side discharge |
| External dimensions | |
| External dimensions | 1560 x 650 x 1020 mm |
| Cutting adjustment | |
| Cutting adjustment | 8-way |
| Front wheel diameter | |
| Front wheel diameter | 254 mm |
| Grass catcher capacity | |
| Grass catcher capacity | 60 l |
| Cutting width | |
| Cutting width | 508 mm |
| Functions | |
| Functions | Side discharge |
| Functions | Collecting |
| Functions | Mowing |
| Functions | Mulching |
| Tank capacity | |
| Tank capacity | 1 l |
| Engine displacement | |
| Engine displacement | 196 cc |
| Drive | |
| Drive | Petrol |
| Cutting height | |
| Cutting height | 25-80 mm |
| Engine power | |
| Engine power | 4.8 HP |
| Rear wheel diameter | |
| Rear wheel diameter | 178 mm |
| Cutting adjustment type | |
| Cutting adjustment type | Central |
| Lawn area | |
| Lawn area | 1800 m² |
| Engine power | |
| Engine power | 3.5 kW |
| Weight | |
| Weight | 32.5 kg |
| Top speed | |
| Top speed | 3.6 km/h |
