Insulated wire end ferrules assortment with pliers and screwdriver
Guaranteed Secure Checkout
| Item number | WF-742114 |
| Brand | NWS |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews

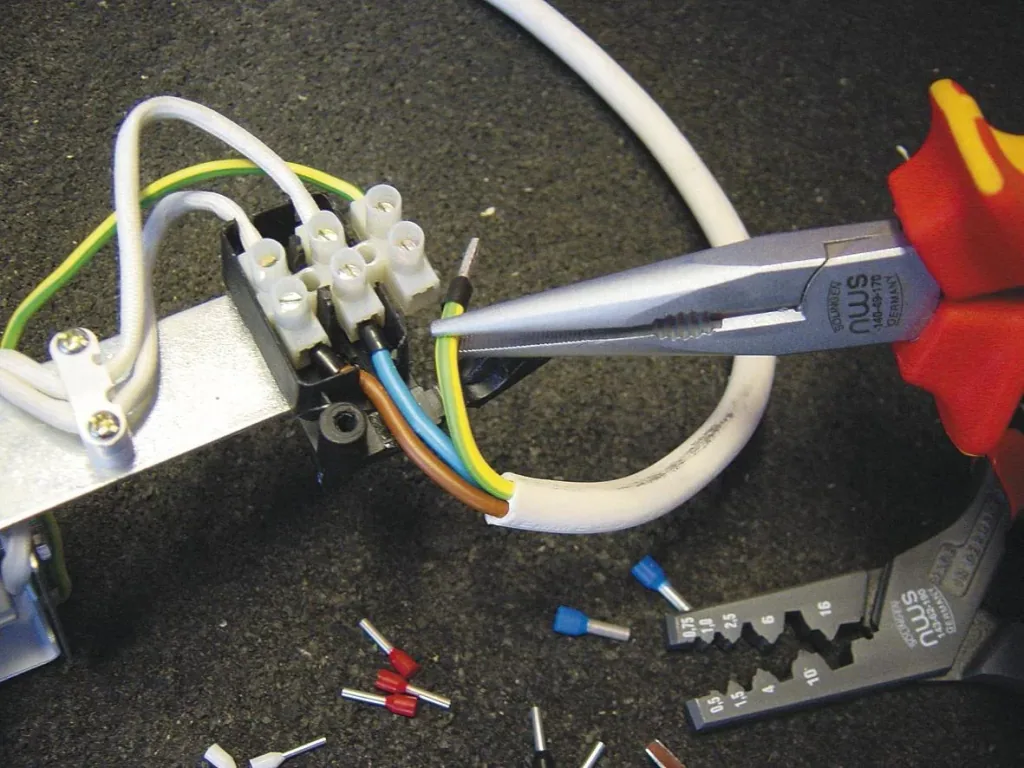

Expert tip: Flexible cables are usually used to connect devices and ceiling lights. The stripped ends must not simply be twisted or soldered in screw connections.

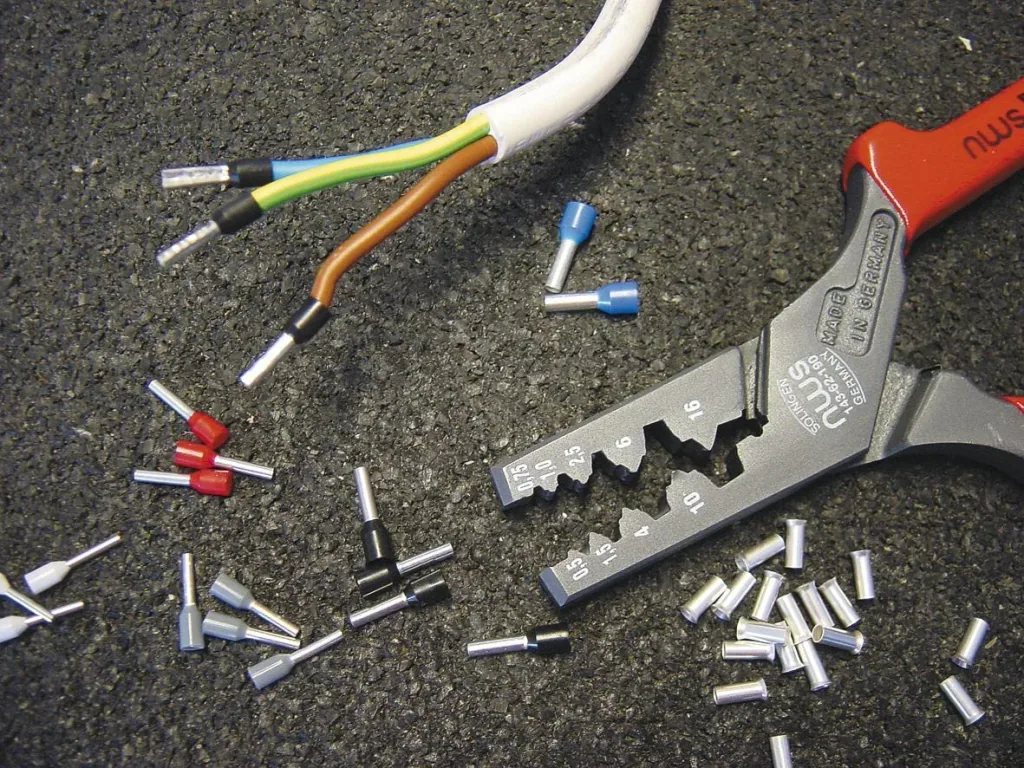

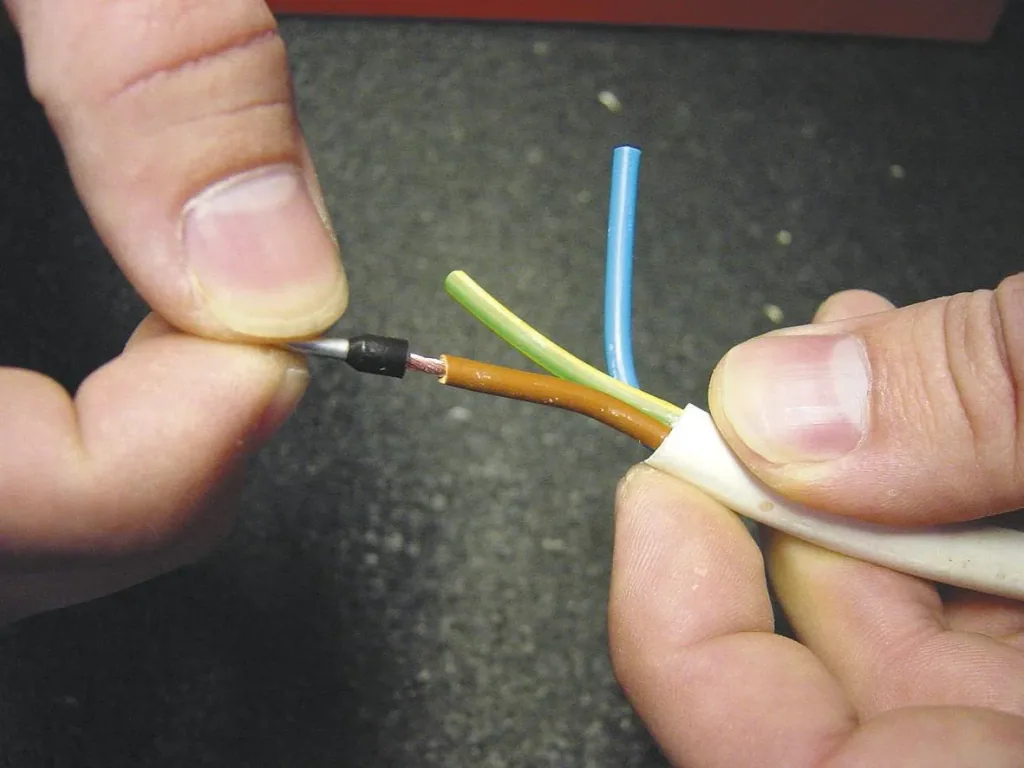

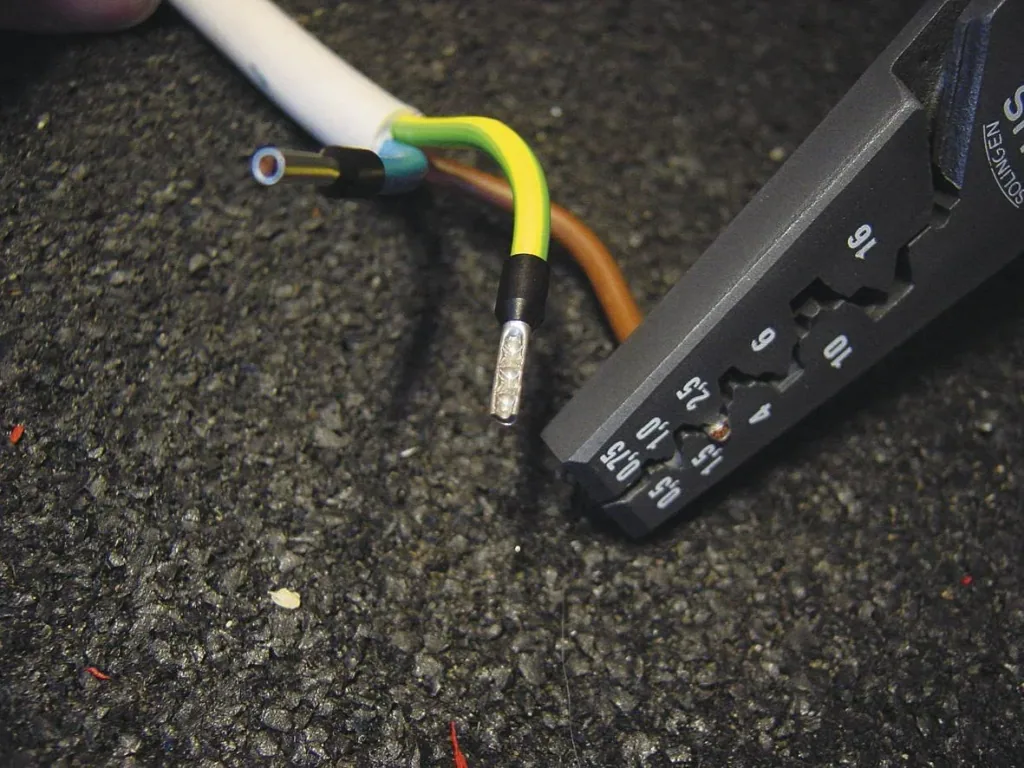

Experience has shown that such connections in lamp terminals or similar can quickly come loose and build up high contact resistance (risk of fire from sparks). Flexible individual wires must therefore be fitted with wire end ferrules, which are then crimped using special wire end ferrule pliers.

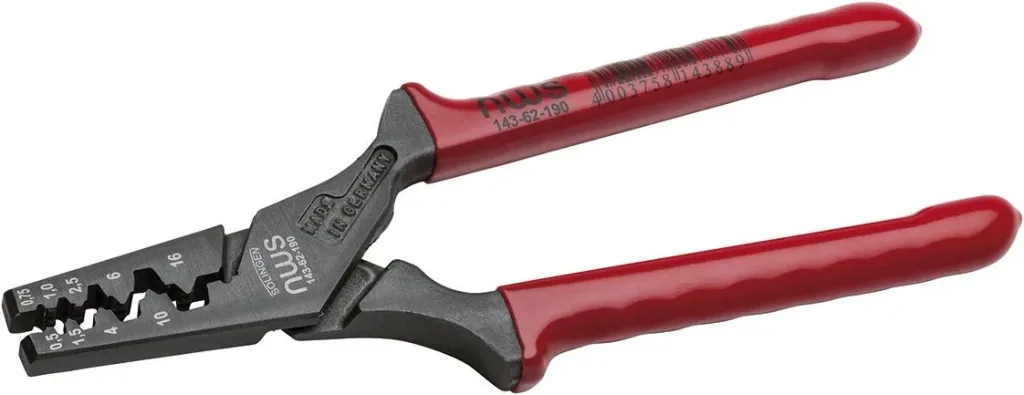

The advantages at a glance: Crimping of insulated and uninsulated sleeves, forged jaws for optimal pressing pressure. Universal wire end ferrules.

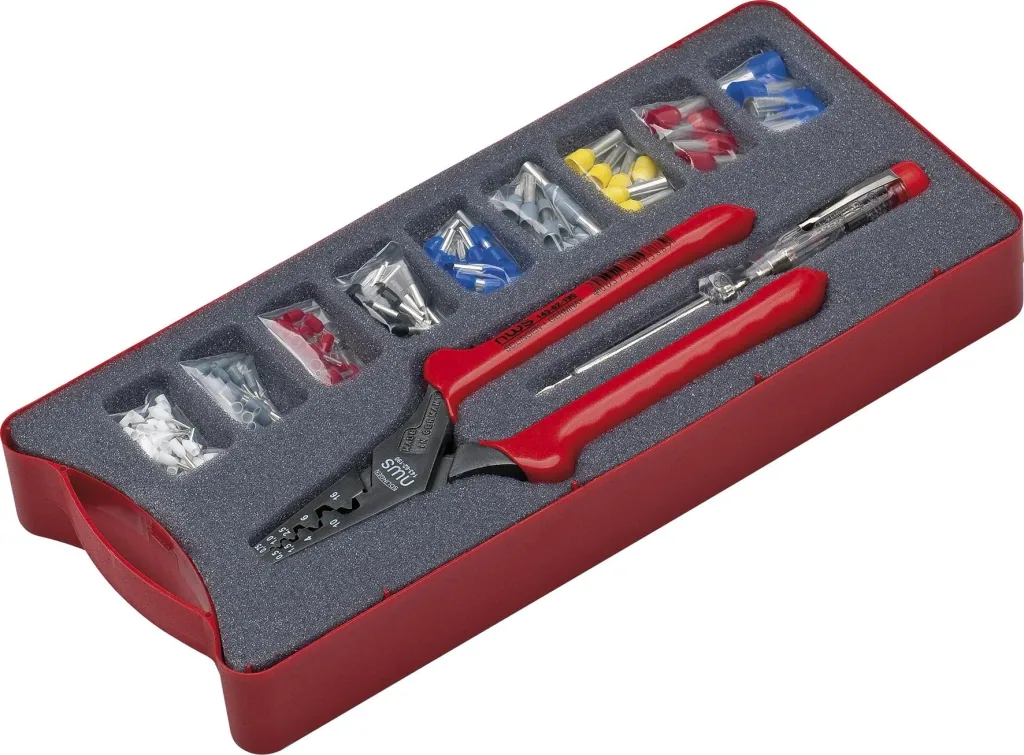

Contents:
* 25 each of wire end ferrules in sizes 0.5 mm², 0.75 mm², 1 mm², 1.5 mm², and 2.5 mm²
* 10 each in sizes 4 mm²
* 7 each in sizes 6 mm²
* 6 each in sizes 10 mm²
* 5 each in sizes 16 mm²
Complete with pliers and a screwdriver. In a transparent box.
Experience has shown that such connections in lamp terminals or similar can quickly come loose and build up high contact resistance (risk of fire from sparks). Flexible individual wires must therefore be fitted with wire end ferrules, which are then crimped using special wire end ferrule pliers.
The advantages at a glance: Crimping of insulated and uninsulated sleeves, forged jaws for optimal pressing pressure. Universal wire end ferrules.
Contents:
* 25 each of wire end ferrules in sizes 0.5 mm², 0.75 mm², 1 mm², 1.5 mm², and 2.5 mm²
* 10 each in sizes 4 mm²
* 7 each in sizes 6 mm²
* 6 each in sizes 10 mm²
* 5 each in sizes 16 mm²
Complete with pliers and a screwdriver. In a transparent box.
