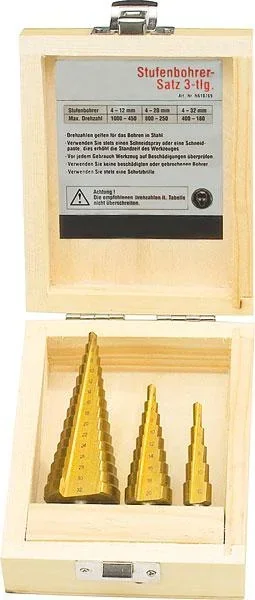

Step drill, 3-piece

Price:

25.20 €

Step drill, 3-piece

https://www.westfalia.uk/web/image/product.template/73805/image_1920?unique=6b660d2
2 reviews
4 sold in the last 24 hours
UVP: 31.25 € -19%

25.20 € 25.2 EUR 25.20 € Pay 8.40 € now with Klarna

29.99 € 39.29 €

(0.00 € / Units)
* incl. VAT,  inclShipping costs

8 people are viewing this right now

1.26 € Cashback with this purchase · 5 %
In Stock
About this item:
  • Drilling without deformation
  • No pre-drilling required
  • TiN coated
  • Increased service life
  • In wooden box
Secure Checkout
Guaranteed Secure Checkout
Item number WF-767137

Finally, a step drill set at a reasonable price.

Depending on your needs, you can drill holes in sizes 4 to 12 mm, 4 to 20 mm, and 4 to 32 mm with just one drill.

The drill bits are divided into two steps:


  • 4 6 8 10 12
  • 4 6 8 10 12 14 16 18 20
  • 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32

These are titanium-coated drill bits.

The cutters have three different shanks.


  • Small 4-12 mm with 6 mm shank
  • Medium 4-12 mm with 8 mm shank
  • Coarse 4-32 mm with 10 mm shank

  • 4-12 mm = 450 - 1000 rpm maximum
  • 4-20 mm = 250 - 800 rpm maximum
  • 4-32 mm = 180 - 400 rpm maximum


The drill bits are 63, 75 and 100 mm long.

Ideally suited for all common industrial metals, thermoplastics and thermosetting plastics up to a thickness of 3 mm. Even the thinnest sheets can be drilled without deformation. The special cutting edge geometry allows for drilling and deburring without pre-drilling. The special TiN coating creates up to 600% greater surface hardness, noticeably increasing the service life of the tools.

Complete 3-piece set in a neatly crafted wooden box.

Packing unit
Packing unit 3
Carrying case
Carrying case yes
Drill bit total length
Drill bit total length 63-100 mm
Drill bit diameter
Drill bit diameter 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 mm
EU-Responsible Name: Westfalia Werkzeug Commerce GmbH
EU-Responsible Street: Industriestrasse
EU-Responsible House No: 1
EU-Responsible Post Code: 58093
EU-Responsible Town: Hagen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

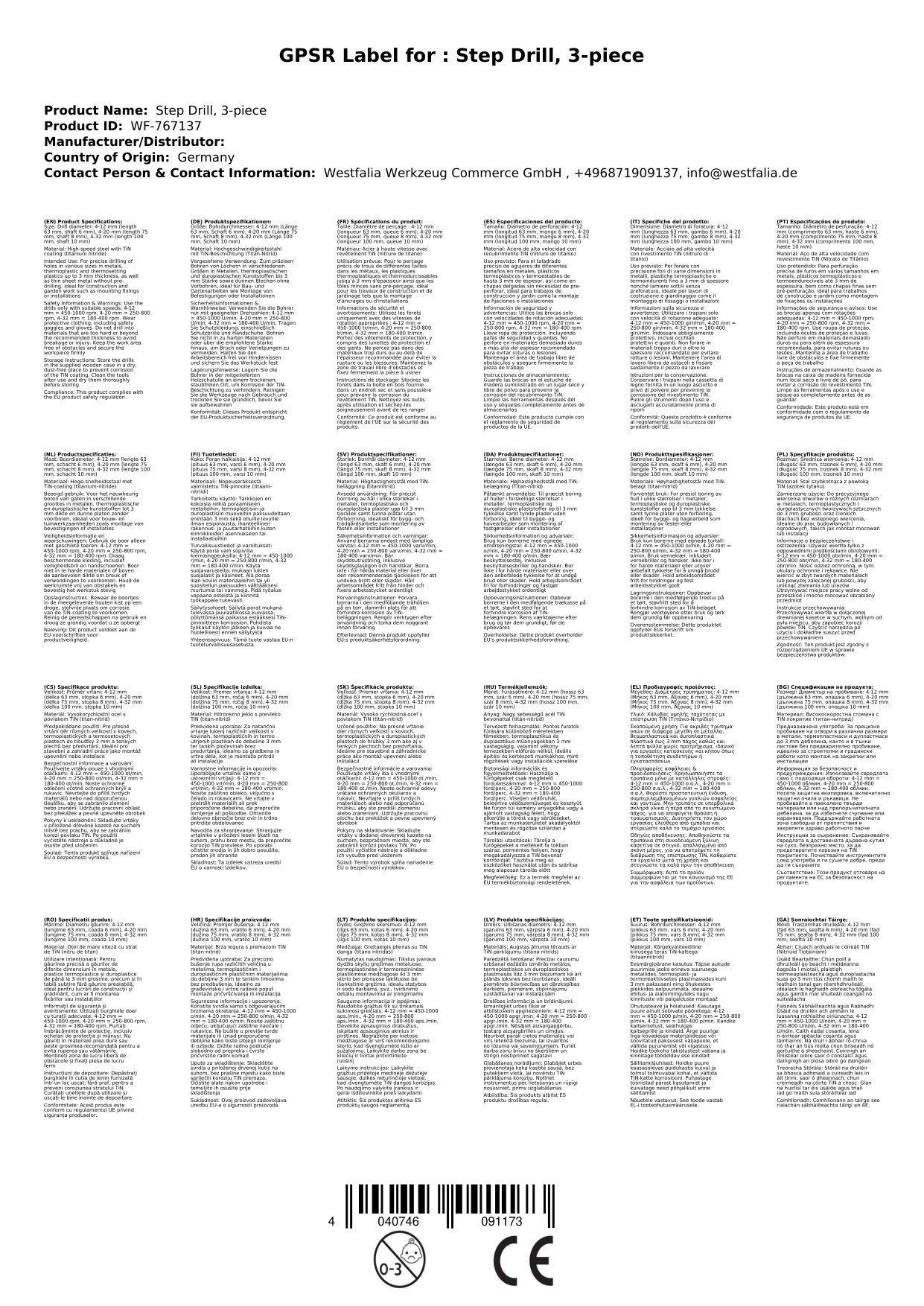

GPSR attachment: Download
