Powerful deep well pump GTT 900, flow rate 3,300 l/h
| Item number | WF-816156 |
| Brand | Güde |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0

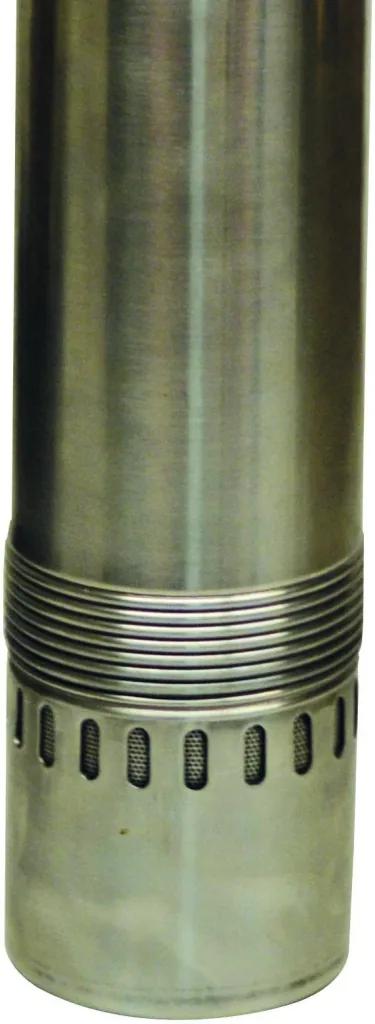

• Stainless steel casing

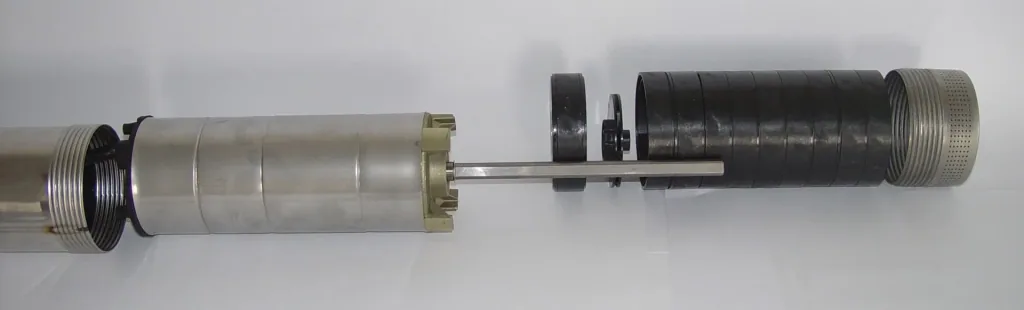

• 9 impellers made of glass fiber reinforced plastic
• Mechanical seal
• 20 m connection cable
• Thermal protection
• Stainless steel shaft

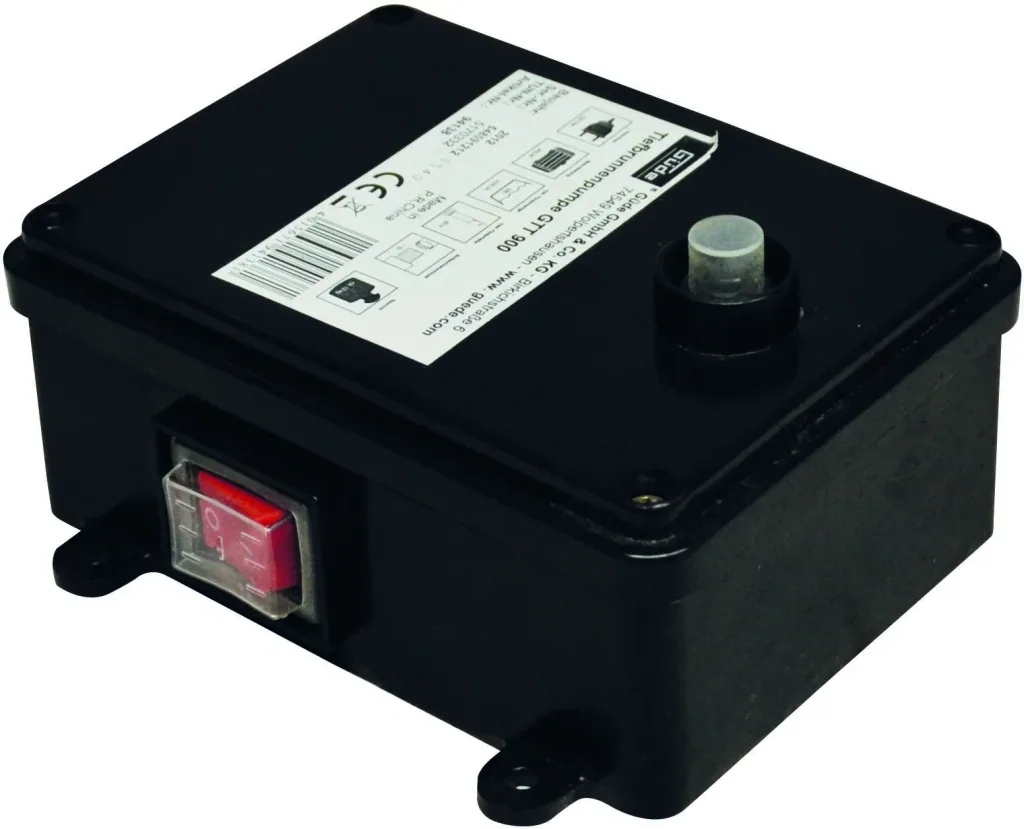

• Switch box with on/off switch and motor protection switch

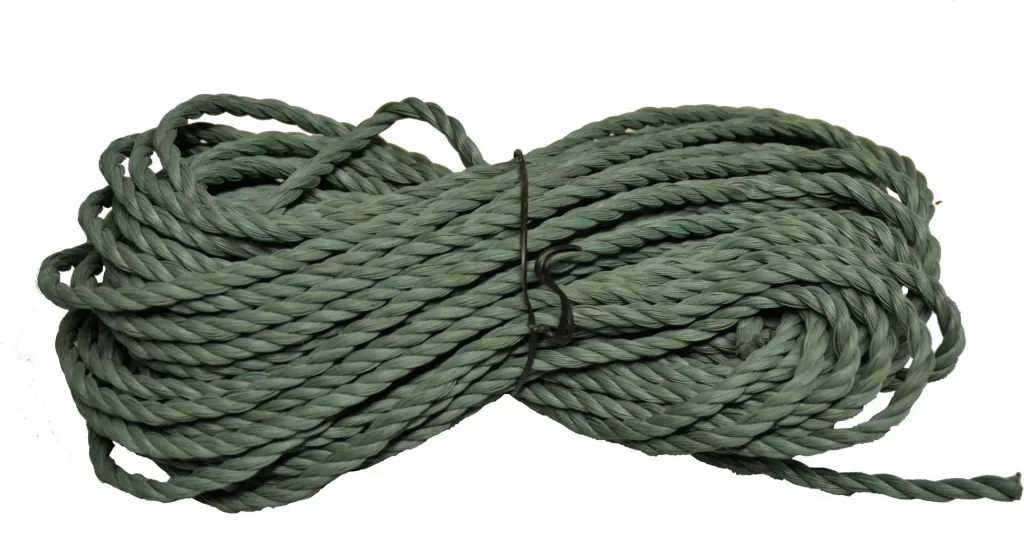

• 20 m nylon rope
Areas of application:
Only suitable for clear water.
For pumping from great depths and narrow wells.
Pump body diameter only 100 mm.
Mains voltage: 230 V
Frequency: 50 Hz
Motor power (P1): 900 W
Pump protection class: IPX8
Switch box protection class: IPX4
Number Impellers: 9
Ø-Pump: 100 mm
Discharge volume: 4500 l/h max.
Delivery head: 55 m max.
Immersion depth: 15 m
max. Grain size: 1 mm
max. Water temperature: 35 °C
Connection thread: 1" female
Length of connection cable: 2000 cm
Length: 100 mm
Width: 100 mm
Height: 630 mm
Net weight: 11.4 kg
Gross weight: 12.56 kg
