Solar pump system "Siena" - with LED lighting

The garden hit!

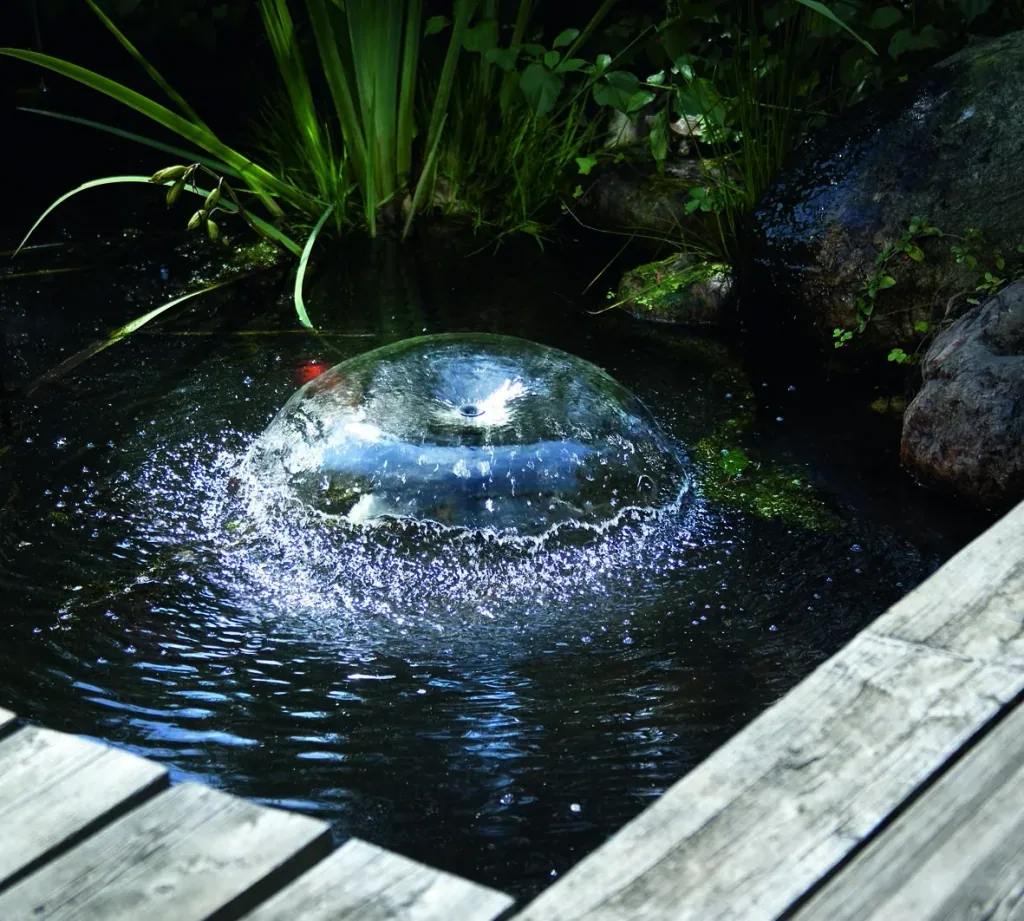

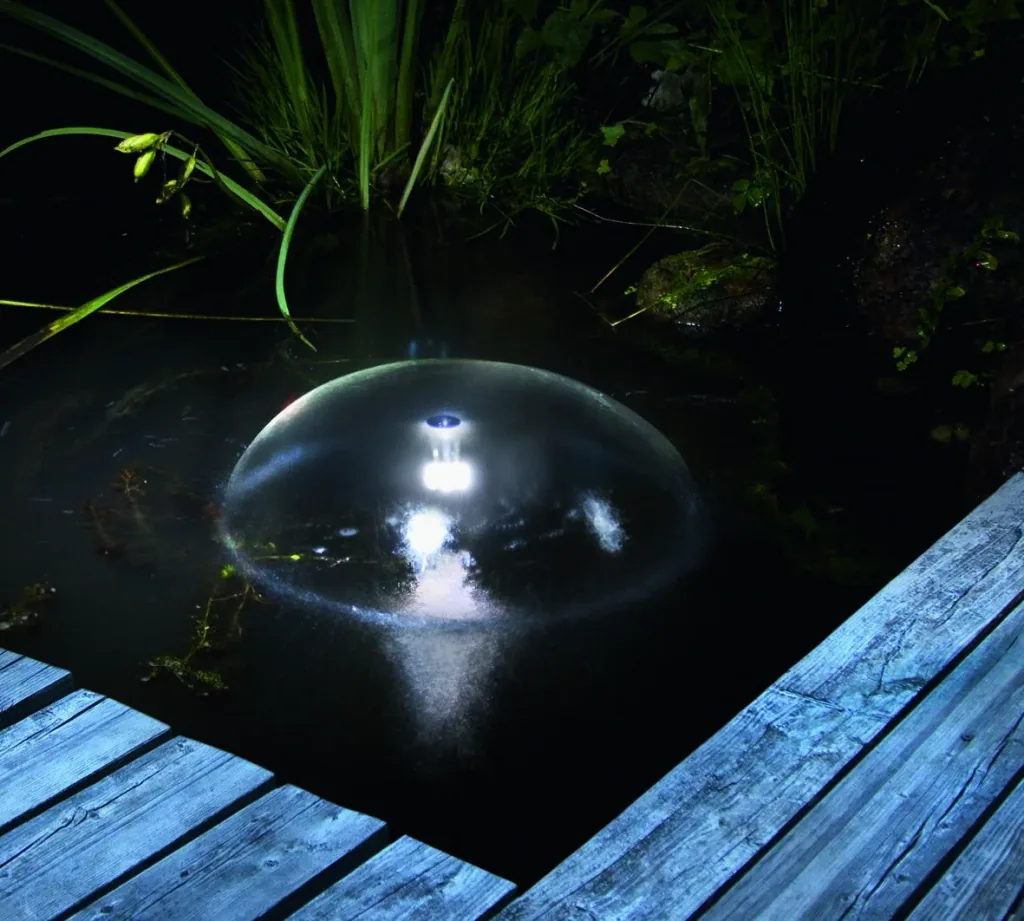

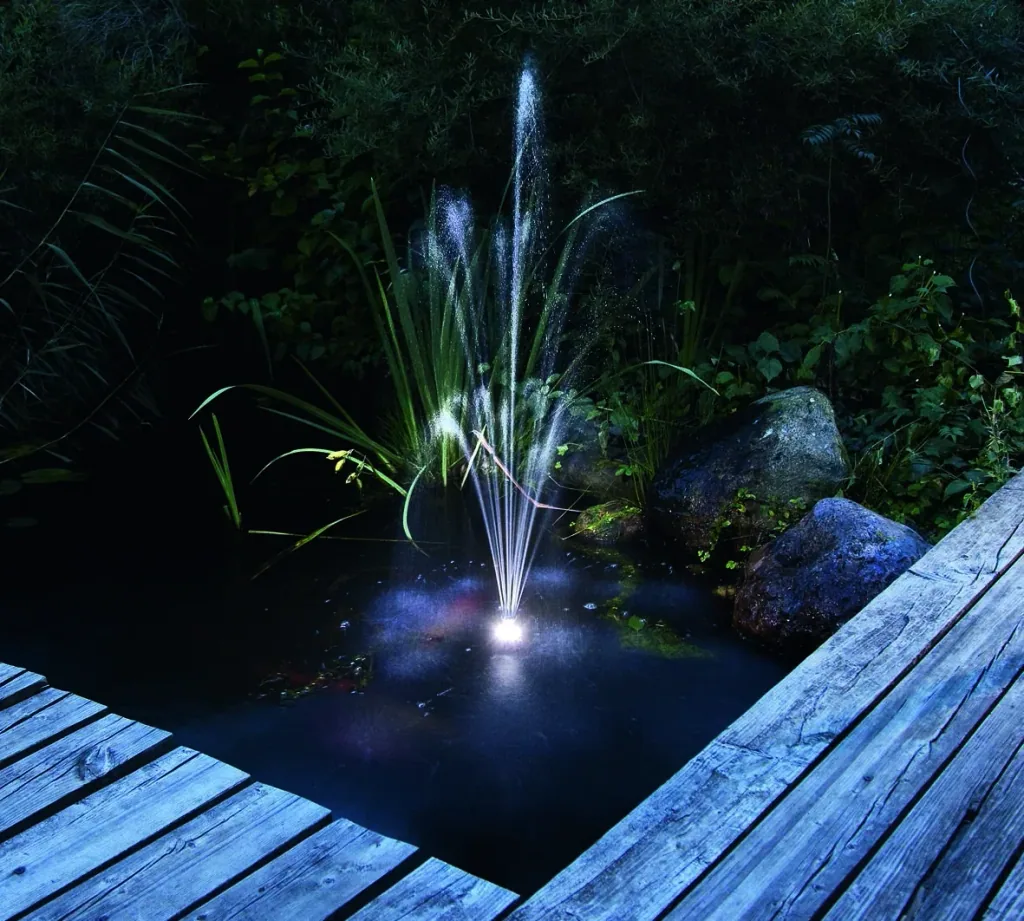

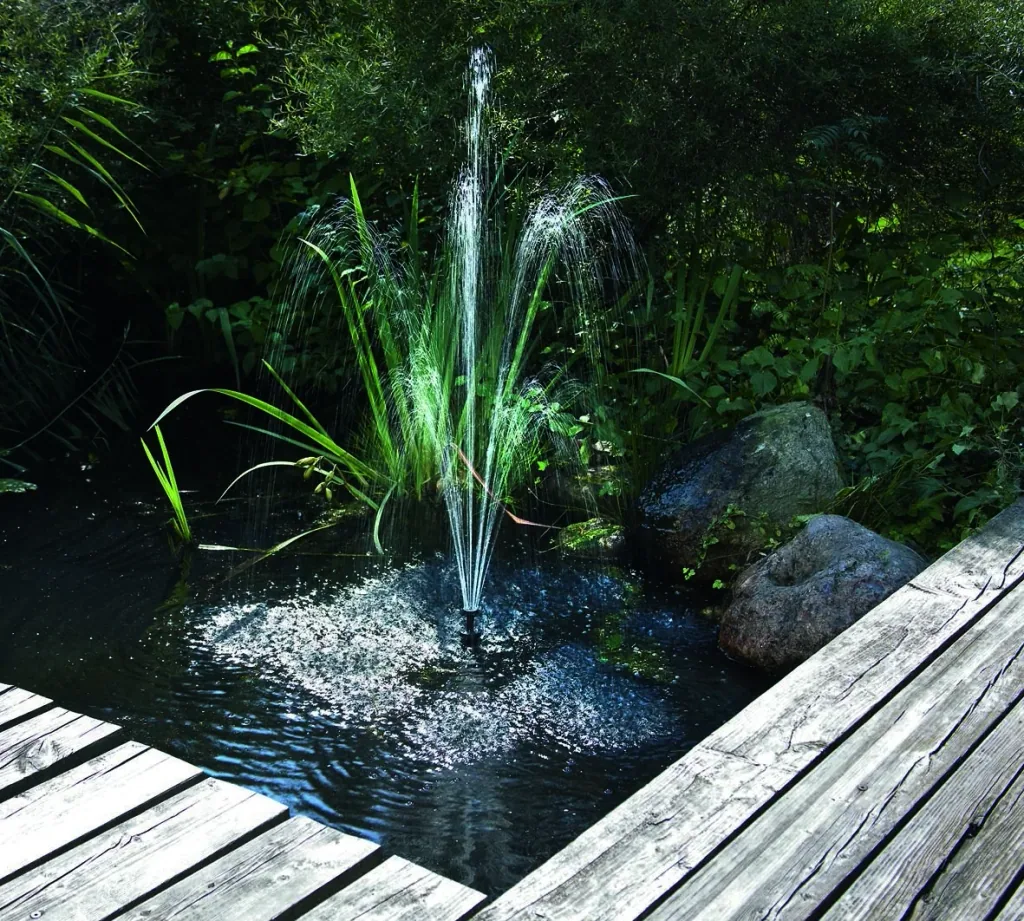

An effectively illuminated fountain for the garden pond or decorative lighting design for a fountain stone at night.

The solar module generates enough energy in full sunshine in summer to operate the pump with light and simultaneously charge the battery.

• LED lighting of the water feature (removable)
• 20 W crystalline solar module
• Delivery head: up to max. 2.8 m
• Battery box with voltage regulation 12 V to 24 V
• Delivery rate: up to max. 1500 l/h
• Durable, low-wear pump
• 4 riser pipes and 2 different sprinkler attachments
• LED light ring can also be used for fountain stones

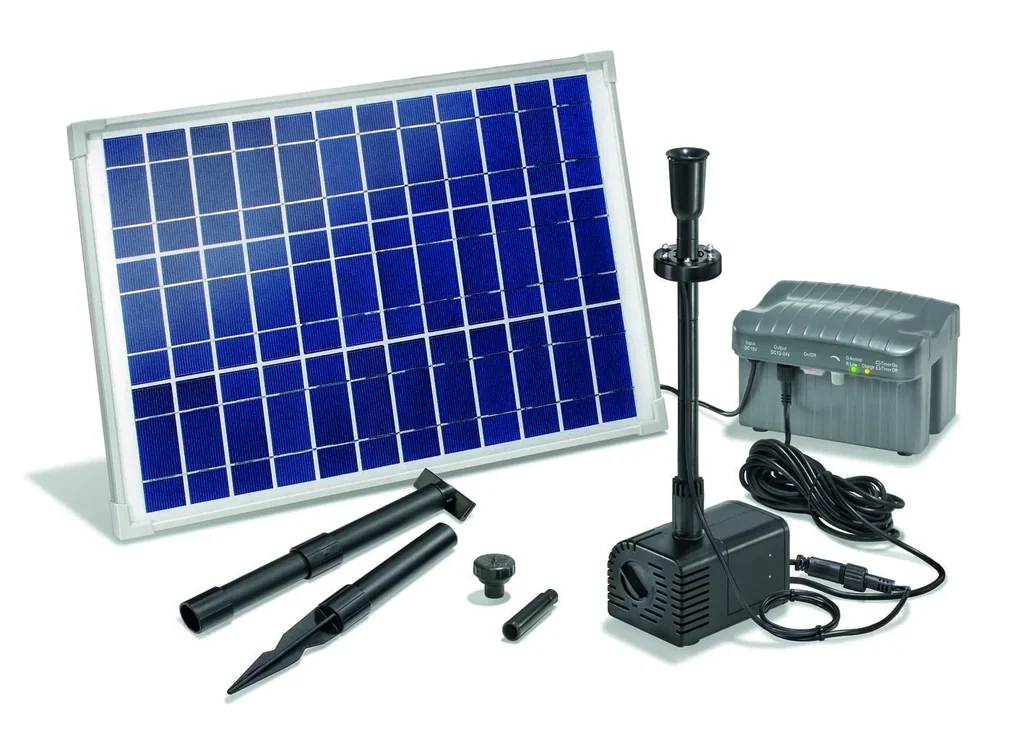

Perfect combination of solar module, battery storage with adjustable output voltage, submersible pump and LED ring (with twilight sensor) for effect lighting at night.


Three operating modes:

• Continuous operation
• Timer operation
• Charging operation

Plug-in system with high-quality, brushless pump with dry-run and overload protection as well as long-lasting LED lighting. Different fountains can be created with the included 4 riser pipes and 2 different sprinklers (3-stage fountain and water bell).

Technical specifications:

Solar module:

• Power: 20 Wp
• Nominal voltage: 17.28 V
• Nominal current: 1.15 A
• Protection class: IP 65
• Dimensions (L x W x H): 520 x 355 x 25 mm
• Weight: 2.1 kg.

Pump:

• Operating voltage range: DC 12-24 V
• Flow rate 12 V/ 24 V: 900 l/h / 1500 l/h
• Delivery head 12 V/ 24 V: 0.8 m/ 2.8 m
• Cable length: 5 m
• Protection class: IP 68
• Dimensions (L x W x H): 129 x 85 x 91 mm
• Hose connection: 13 mm or 1/2" internal thread
• Weight: 950 g.

Battery box:

• Battery: Lead/Gel 12 V/ 7 Ah
• Max. connectable module power: 20 Wp
• Max. output current: 600 mA
• Overcharge protection: 13.8 V
• Deep discharge protection: 11.8 V
• Restart voltage: 12.6 V
• Display: LED
• Dimensions (ø x H): 182 x 152 x 125 mm
• Weight: 3 kg

LED light ring: 6 white LEDs with twilight sensor

Nozzle set: 4 riser pipes, each 85 mm long
