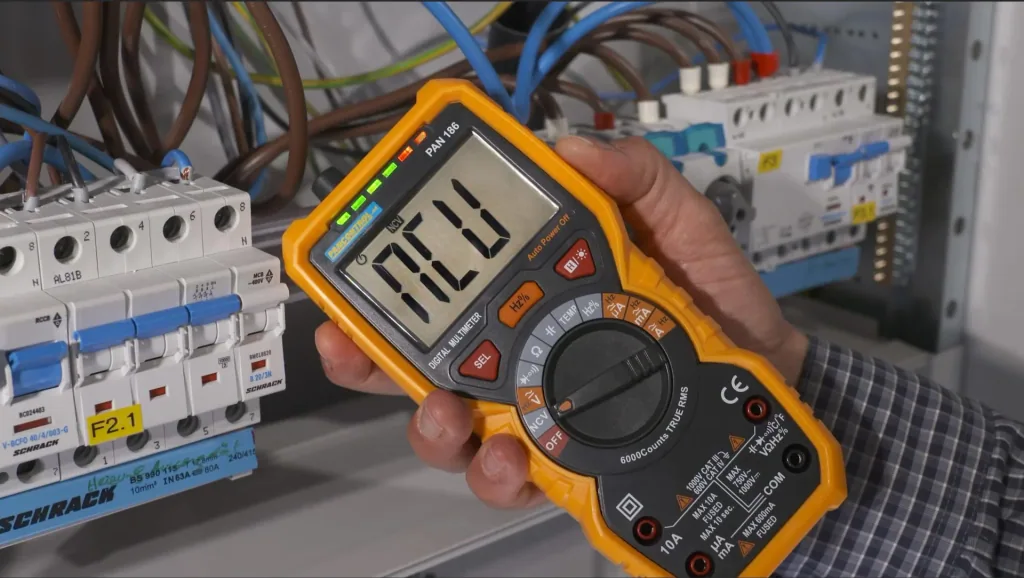

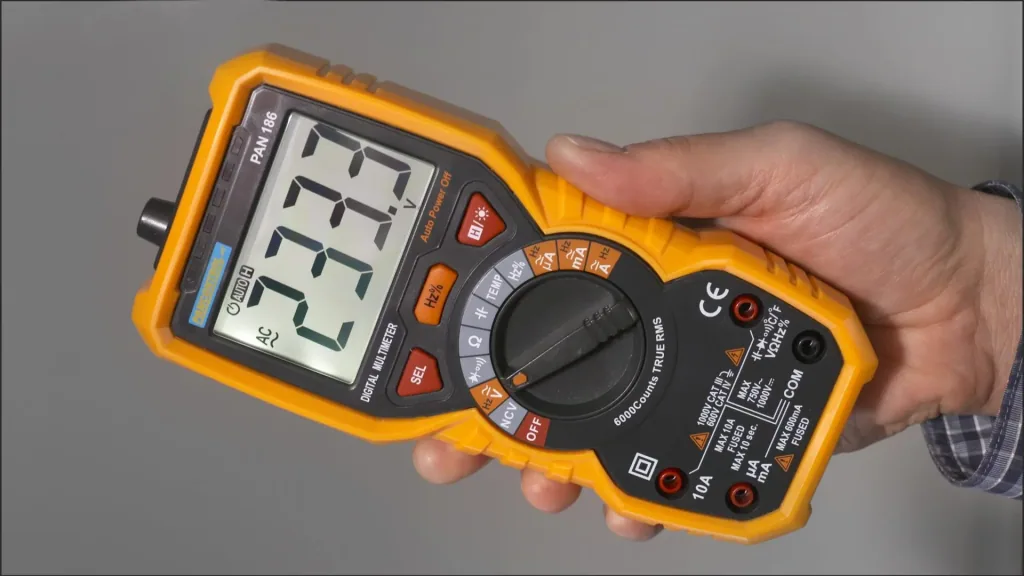

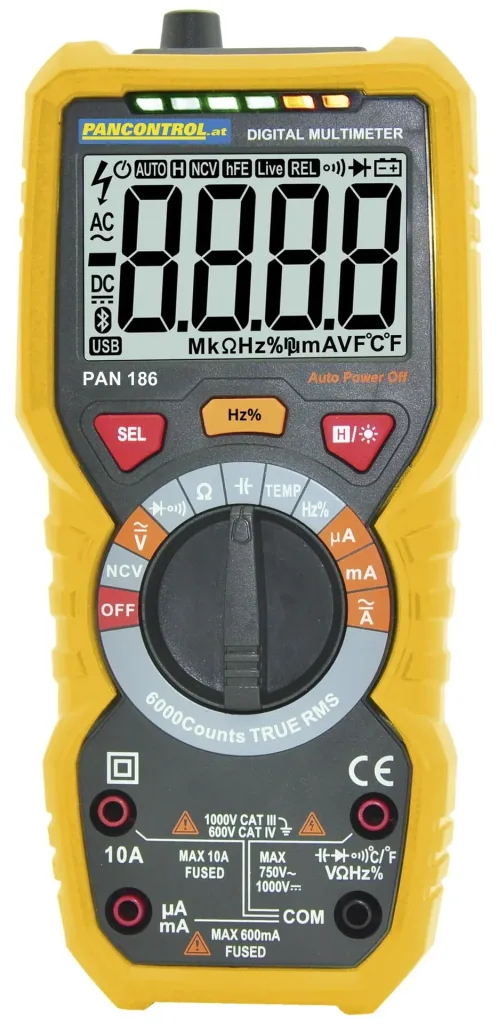

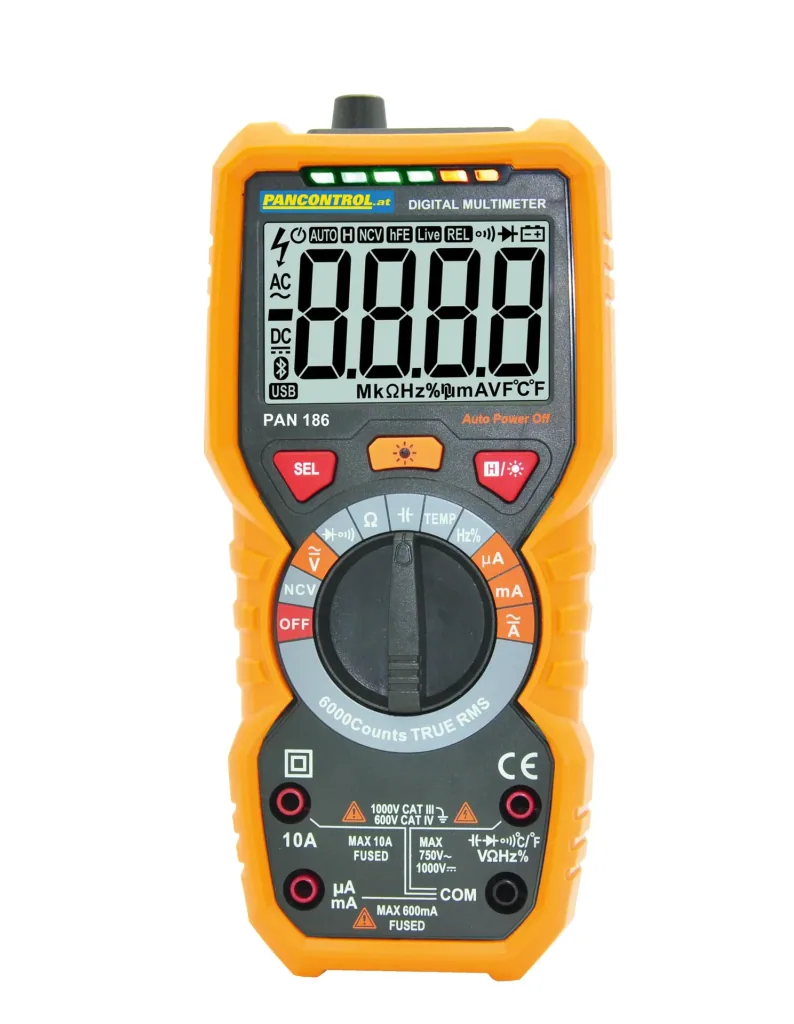

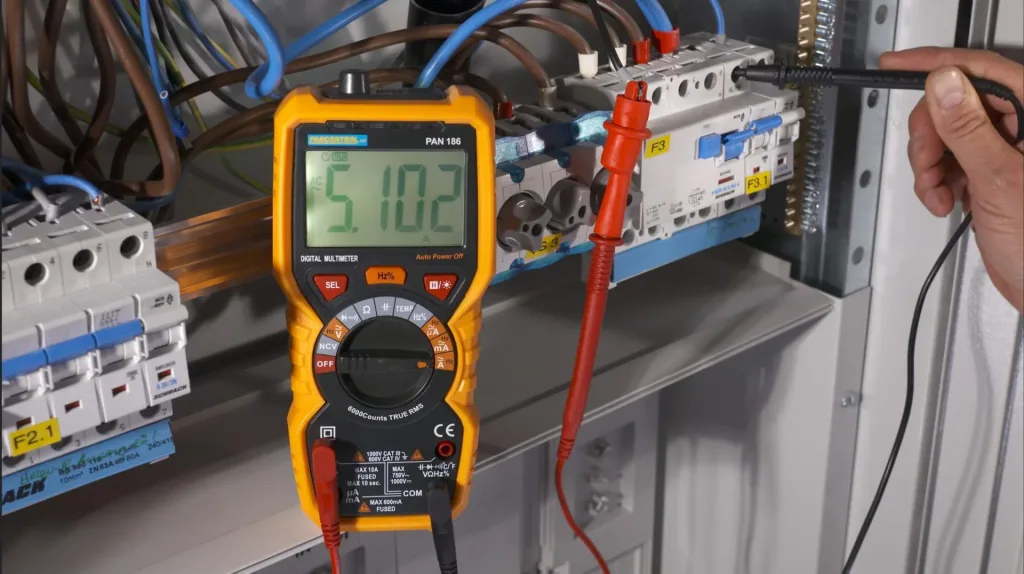

PAN 186 - Digitalmultimeter IP67
Guaranteed Secure Checkout
| Item number | WF-842587 |
| Brand | Pancontrol |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- True RMS (true effective value measurement)
- 3-stage contactless voltage tester (NCV)
- 27 mm digital display
- Backlight
- Display value up to 5999
- Automatic range selection
- Capacitance measurement
- Frequency measurement
- 1-pole phase tester
- Duty cycle in % (PBM) 5 - 95%

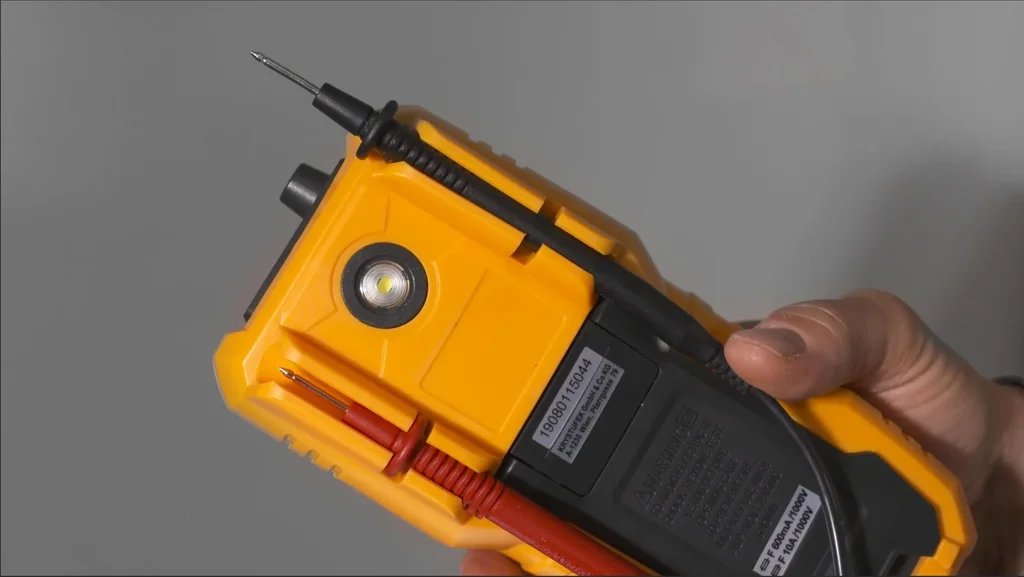

- LED flashlight
- Temperature measurement
- Data hold
- Automatic shutdown
Technical specifications:
- DC voltage (V =): 0.1 mV - 1000 V
- AC voltage (V ~): 0.1 mV - 750 V
- Direct current DC (A =): 0.1 μA - 10 A
- Alternating current AC (A ~): 0.1 μA - 10 A
- Resistance (Ω) 0.1 Ω - 60 MΩ
- Frequency (Hz): 0.001 Hz - 10 MHz
- Capacitance (F): 0.01 nF - 100 mF
- Temperature (°C) (Sensor Type K): -20 °C - +1000 °C
- Acoustic continuity tester •))): < 40 Ω
- Accuracy (%): 0.5% - 5%
Dimensions: 190 x 89 x 50 mm
Weight (gross / net) 652 / 335 g
Required battery(ies): 4 x 1.5 V AAA
Measurement category (CAT) CAT III 1000 V / CAT IV 600 V
Scope of delivery:
- Operating instructions
- Test cable
- Type-K temperature sensor
| Number of batteries | |
|---|---|
| Number of batteries | 4 |
| Weight | |
| Weight | 335 g |
| External dimensions | |
| External dimensions | 190 x 89 x 50 mm |
| Battery type | |
| Battery type | Primary alkaline manganese (AlMn) cells up to 50 g |
