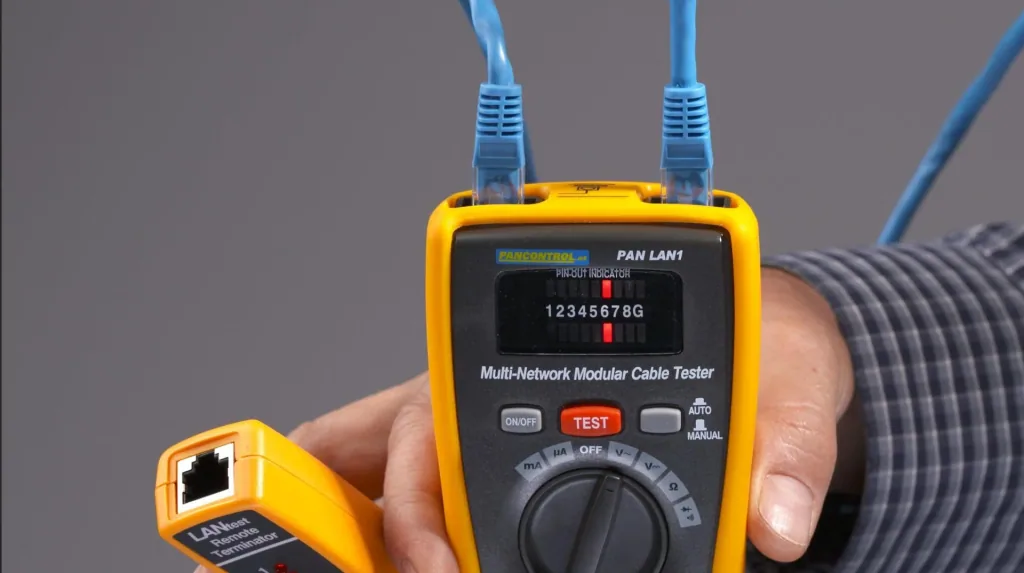

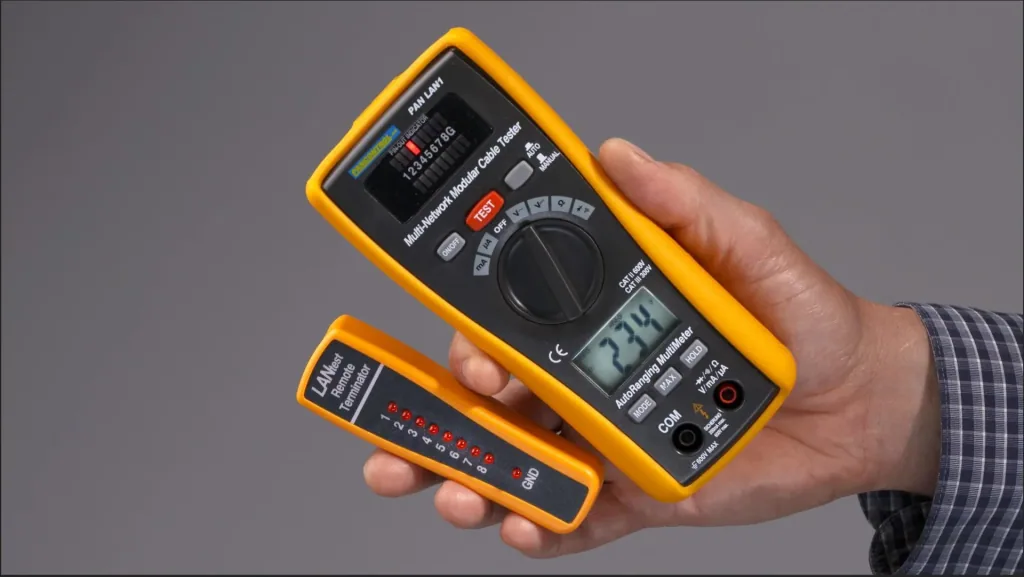

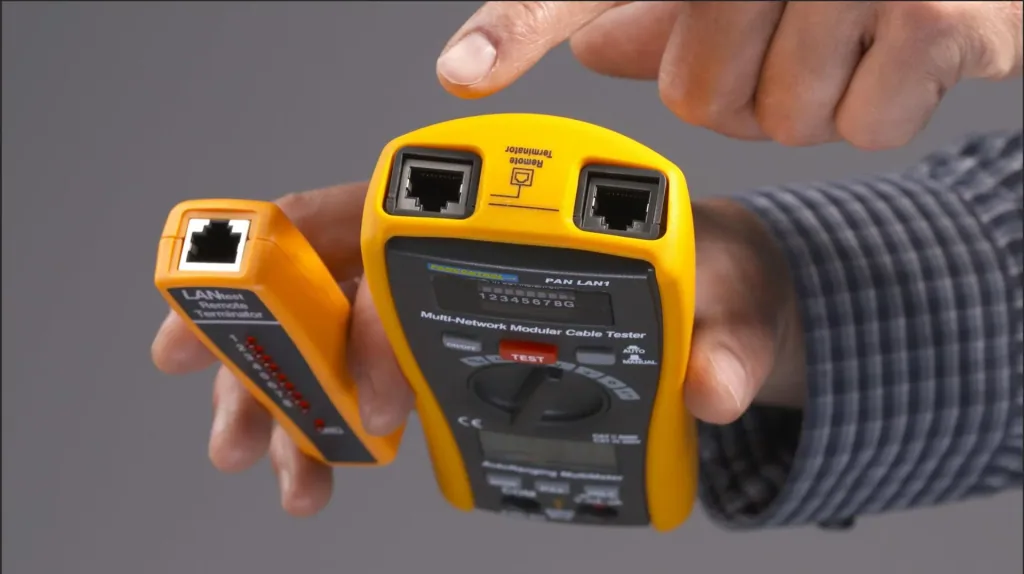

PAN LAN1 - LAN tester and digital multimeter
Guaranteed Secure Checkout
| Item number | WF-842592 |
| Brand | Pancontrol |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Digital display 21 mm
- Display value up to 1999
- Diode test
- Data hold
- Maximum value memory
- LAN - test for continuity, open circuit, short circuit and reversed conductors (RJ45, RJ11, BNC)
- Automatic shutdown
- Automatic range selection
- Continuous test function
Technical specifications:
- DC voltage (V =): 0.1 mV - 600 V
- AC voltage (V ~): 10 mV - 600 V
- DC current (A =): 0.1 μA - 200 mA
- AC current (A ~): 0.1 μA - 200 mA
- Resistance (Ω): 0.1 Ω - 20 MΩ
- Acoustic continuity tester (Ω): 150 Ω
- Accuracy (%): 0.5% - 2%
Dimensions: 162 x 74.5 x 44 mm
Weight (gross / net) 750 / 245 g
Required battery(ies): 1 x 9V 6LR61 + 2 x 1.5 V AAA
Measurement category (CAT) CAT II 600 V / CAT III 300 V
Scope of delivery:
- Instruction manual
- Test cable
- Bag
