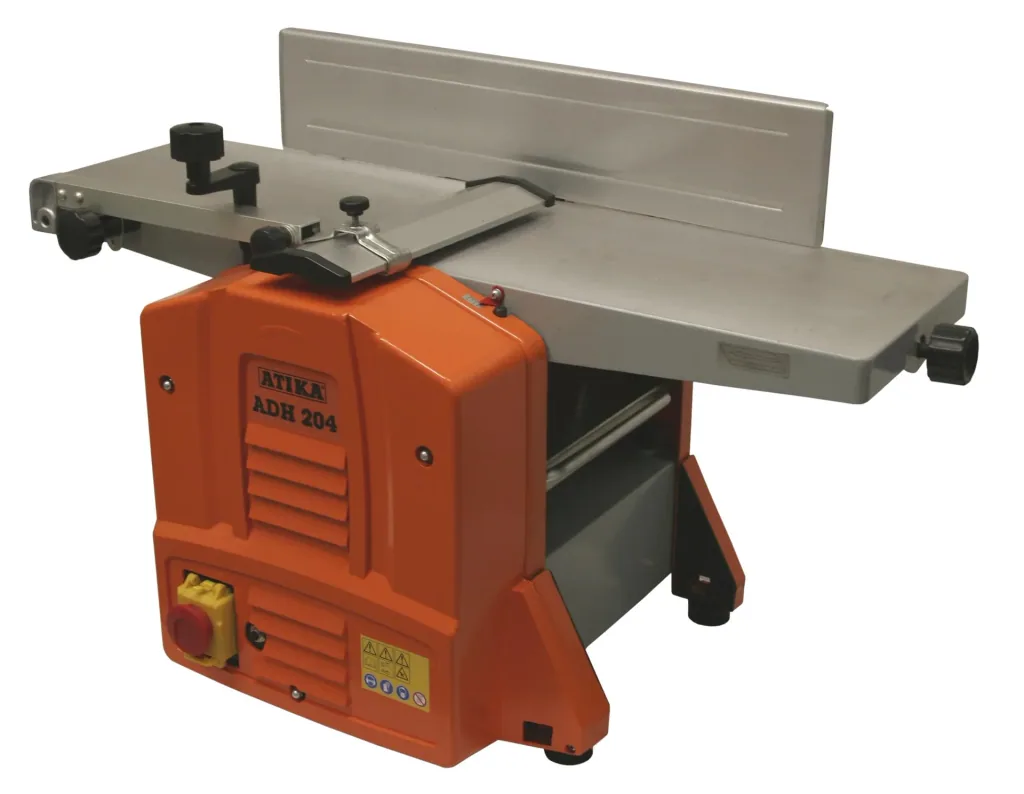

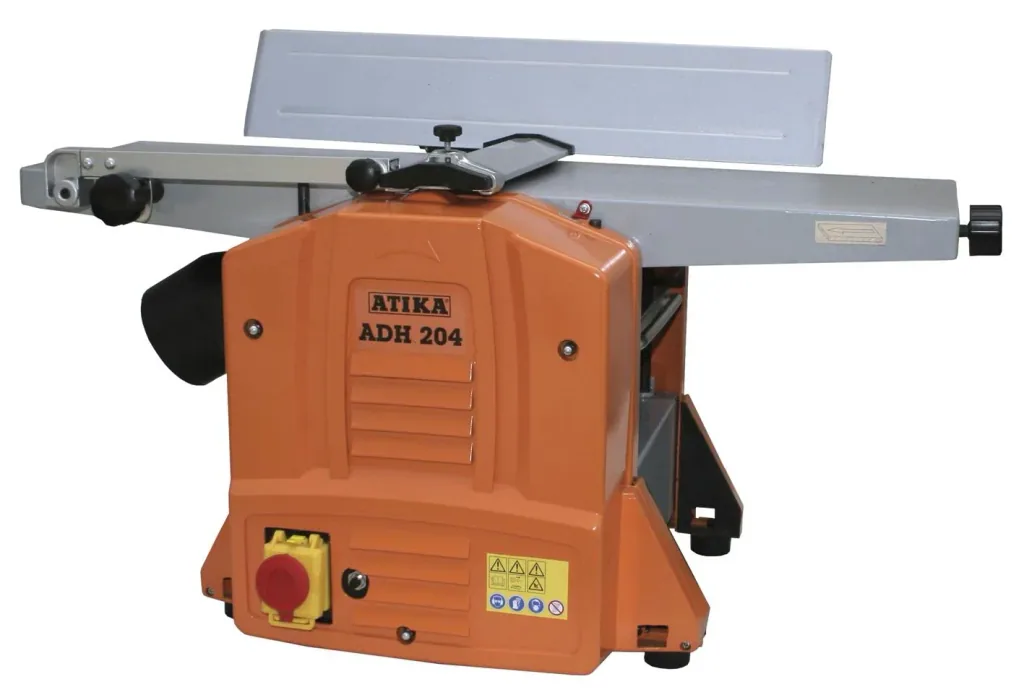

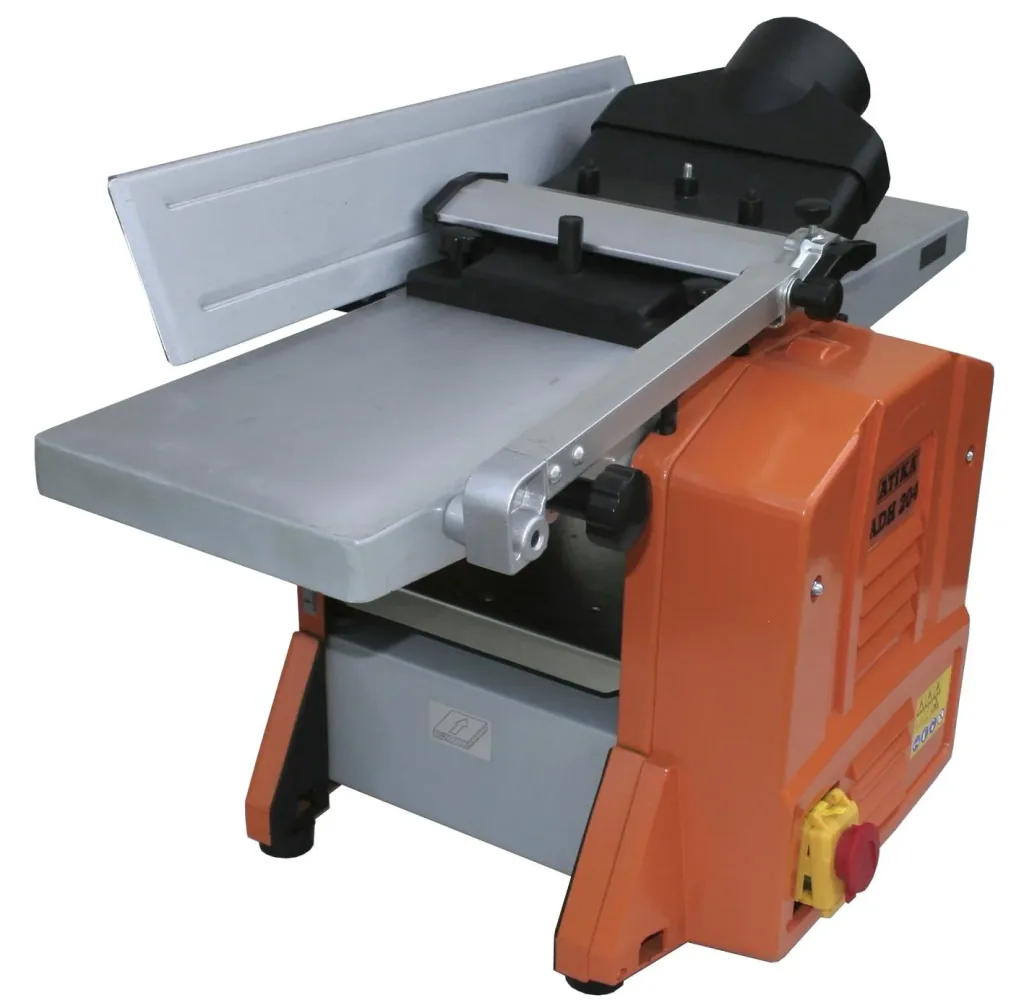

Planer and thicknesser ADH 204, 1500 watts
About this item:
- 1500 watts power consumption
- Max cutting width 204 mm
- Feed speed 6 m/min
- Includes chip extraction system
- Weight approx. 27.5 kg
Guaranteed Secure Checkout
| Item number | WF-848070 |
| Brand | Altrad Lescha Atika |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews

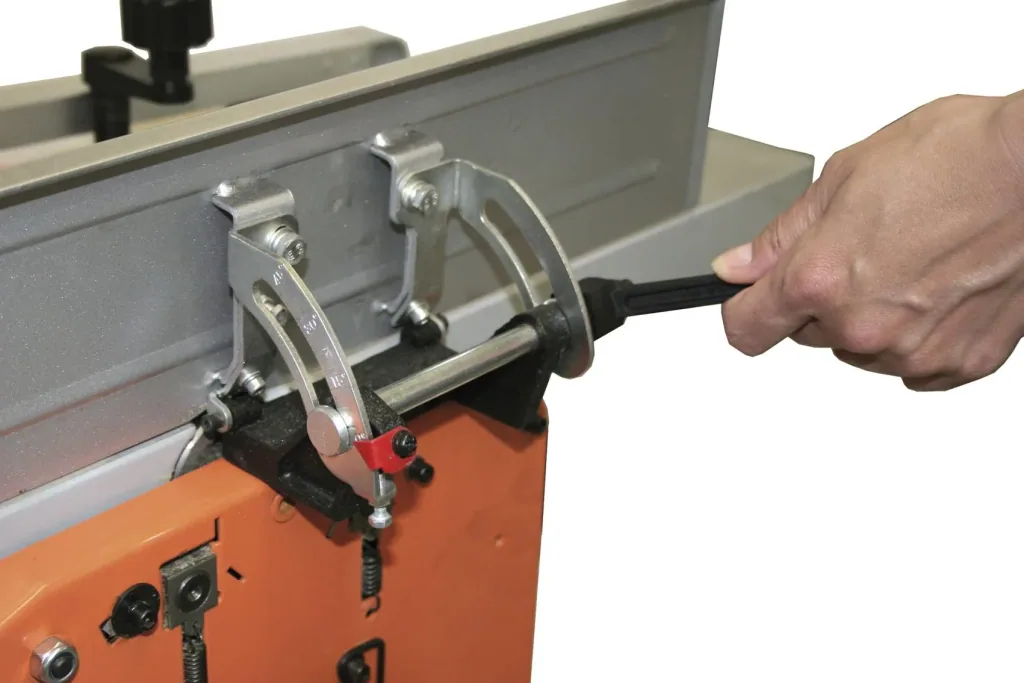

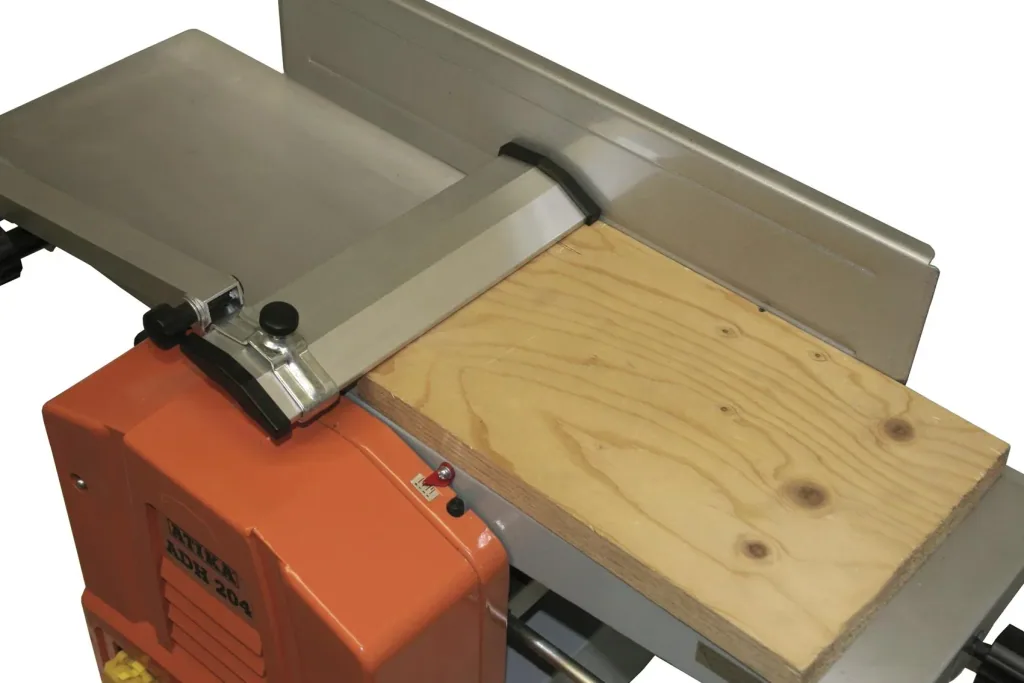

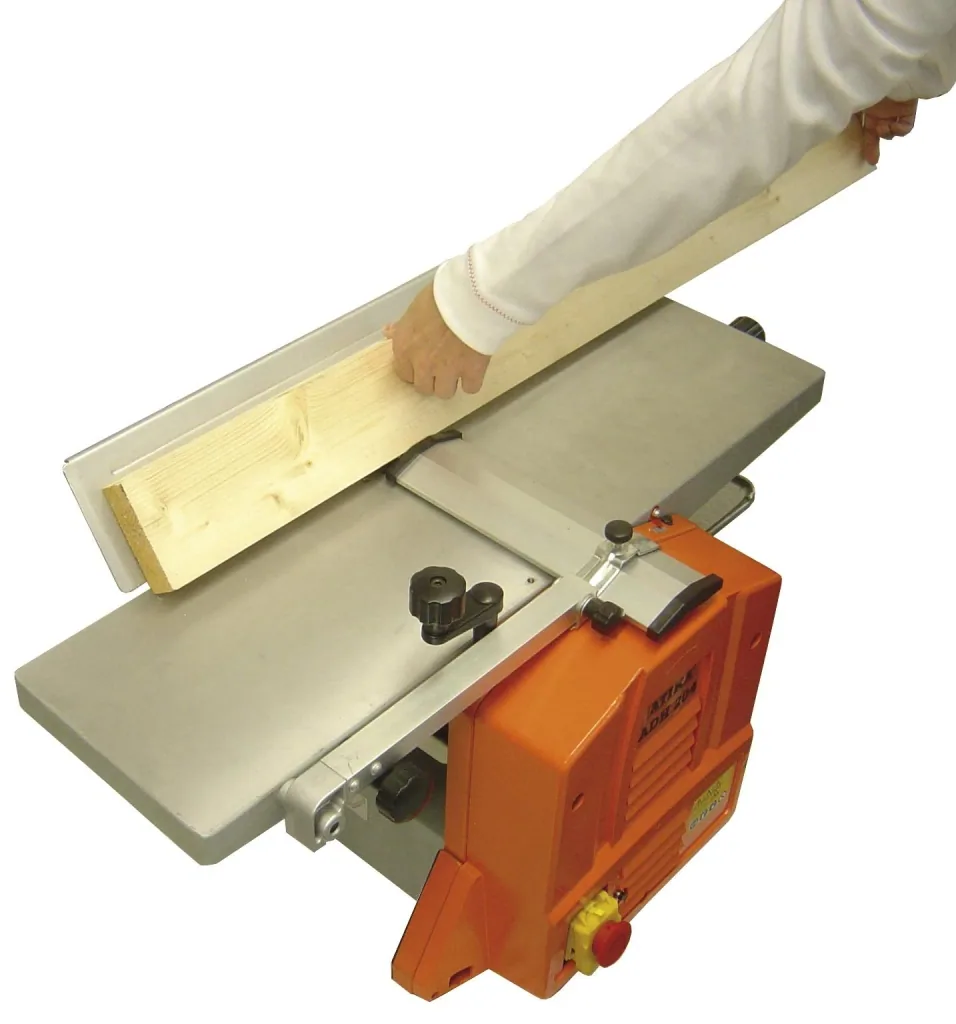

Quick and easy angle adjustment of the stable jointer stop (0-45°). Precise adjustment of the chip removal during jointer and thicknesser operations.

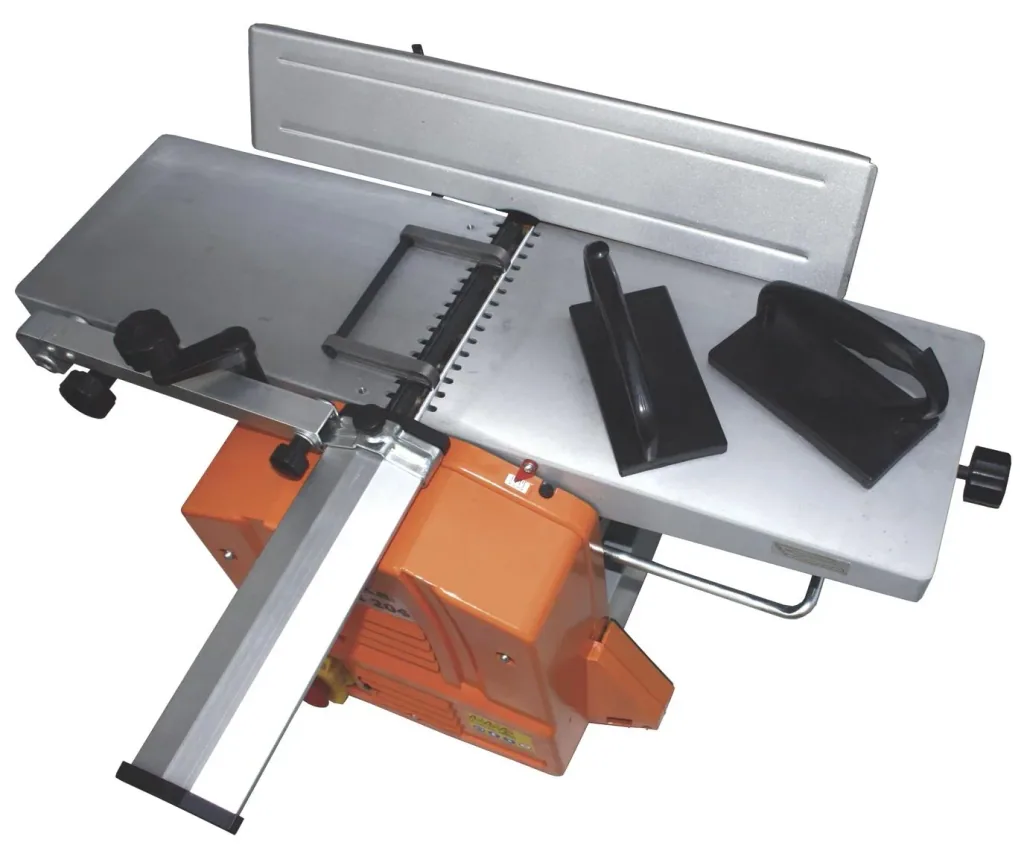

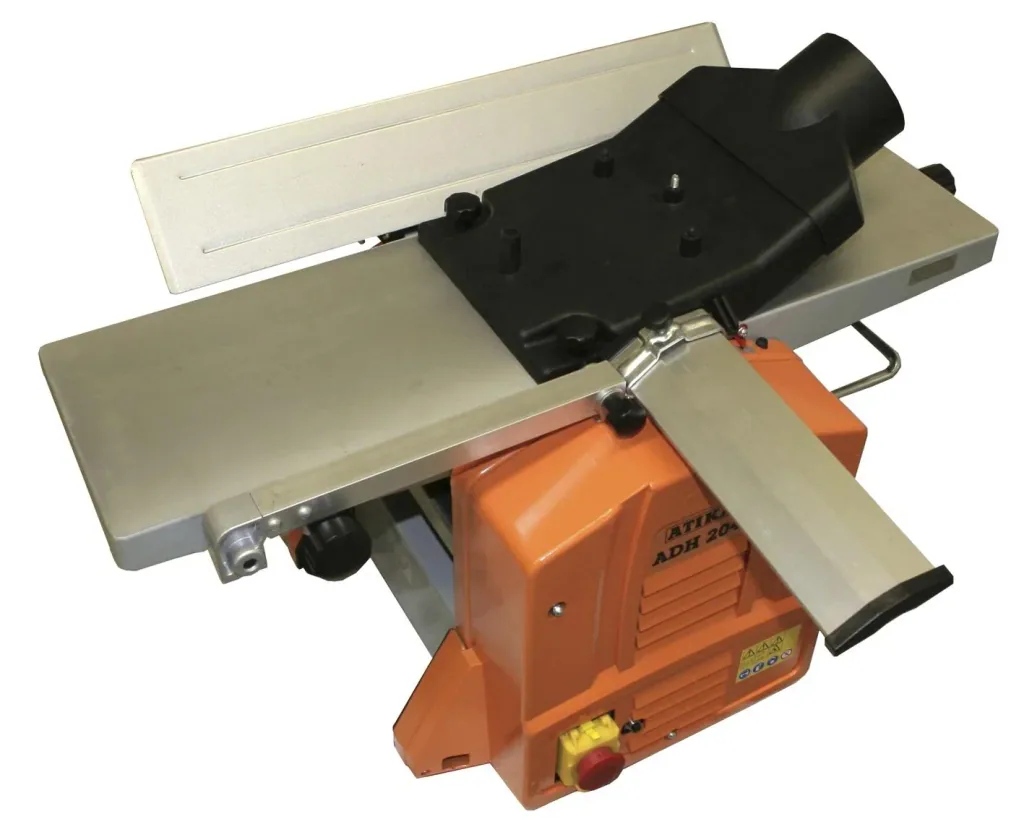

Includes planer blade setting gauge, two push blocks, and a connection for a 100 mm diameter chip extraction system. The extraction hood can be easily converted from jointer to thicknesser. With cable storage and an extendable workpiece support for thicknesser operation. Safe operation thanks to the zero-voltage switch, motor protection, and knife shaft cover.
Technical data
- AC motor 230 Volt~ 50 Hz
- Power consumption 1500 W
- Speed 9000 min-1
- Blade size 210 x 16.5 x 1.5 mm
- Feed rate when thicknessing 6 m/min.

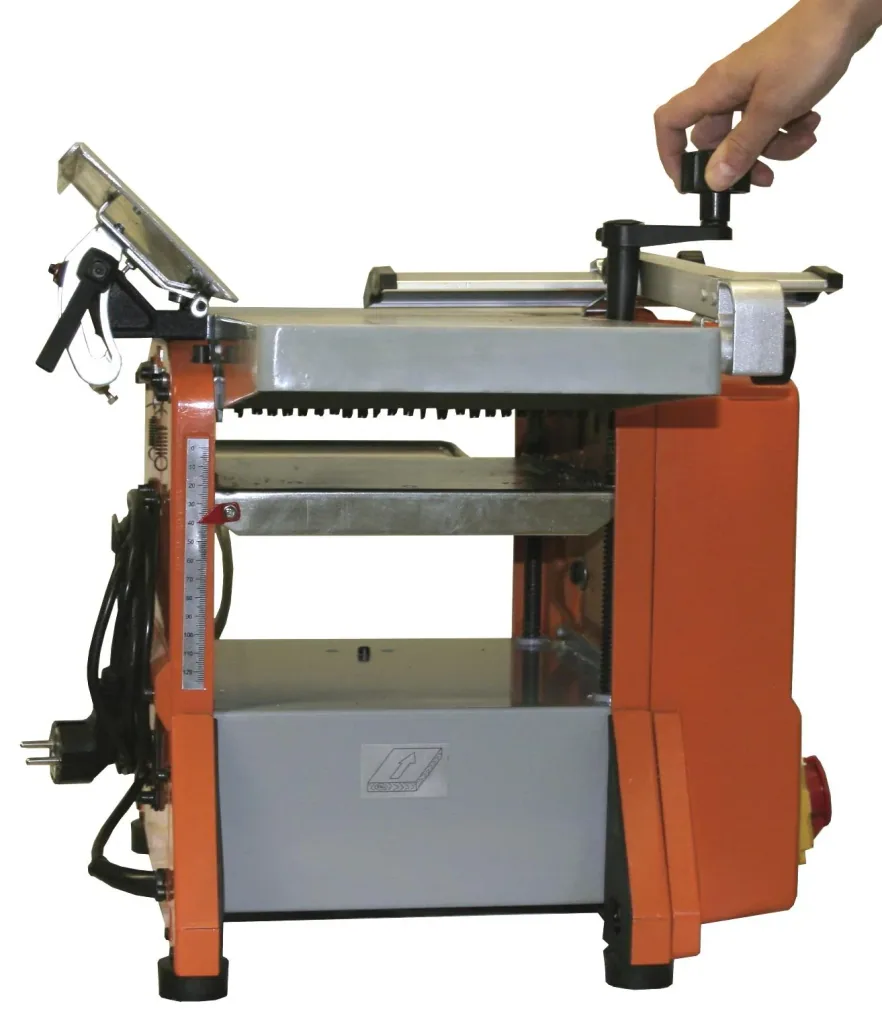

- Max. cutting height/passage height (thicknessing) 5-120 mm max.
- Cutting width 204 mm
- Max. Chip removal when planing 3 mm, when thicknessing 2 mm
- Table size 270 / 720 x 210 mm
- Dimensions (L x W x H) 780 x 442 x 464 mm
- Protection class IP50
- Weight approx. 27.5 kg
| Voltage | |
|---|---|
| Voltage | 230 V |
| Weight | |
| Weight | 27.5 kg |
| Cutting height | |
| Cutting height | 120 mm |
| Feed speed | |
| Feed speed | 6 m/min |
| Drive | |
| Drive | 230 V motor |
| Chip removal | |
| Chip removal | 3 mm |
| External dimensions | |
| External dimensions | 780 x 442 x 464 mm |
| Table size | |
| Table size | 270 x 210 mm |
