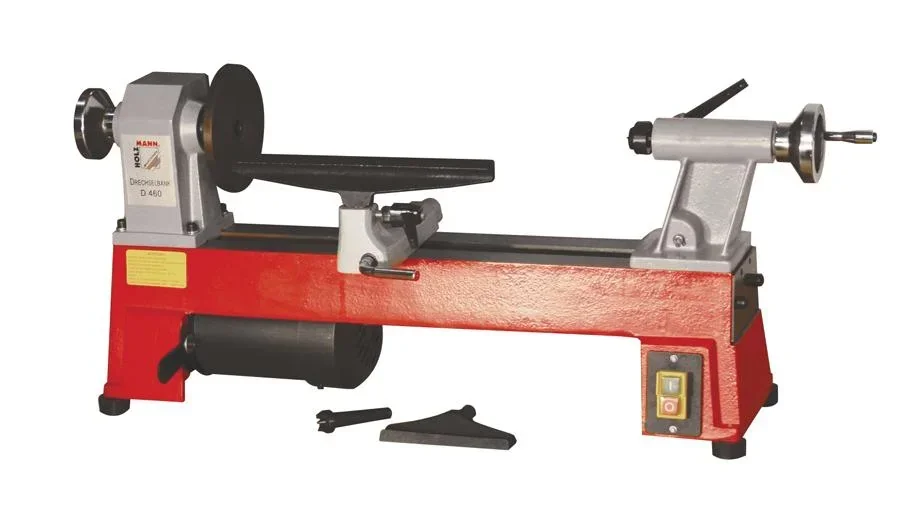

- Spindle mount M33 DIN800
- Bed, tailstock, hand rest, headstock made of solid gray cast iron
- MK2 tailstock with quick fixation
- Very smooth running thanks to POLY-V belt drive
- Extra long hand rest 300 mm with quick fixation
- Tailstock quick adjustment
- Large face plate Ø145 mm, rubber feet to minimize vibration
- Spindle/tailstock bore 10 mm
- This product corresponds to filter class B and must be protected in accordance with EMC when operated in mixed and residential areas
Centre height above machine bed: 135 mm
Centre height above hand rest support: 82 mm
Spindle speed: 3-stage variable
- 650-1450 rpm
- 1250-2800 rpm
- 1600-3800 rpm
Headstock, threaded mount: M33 DIN800
Tailstock:
- Morse taper mount MK2/MT2
- Quill travel 55 mm
Motor power: S1 (100%) / S6 0.4kW/ 0.6kW
Mains voltage: 230 V
Weight: 32 kg
Scope of delivery: 4-prong driver, rotating center punch, face plate, 2x hand rests, operating tools.
