Wood band saw HBS 400 400 V
Guaranteed Secure Checkout
| Item number | WF-848217 |
| Brand | Holzmann |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews

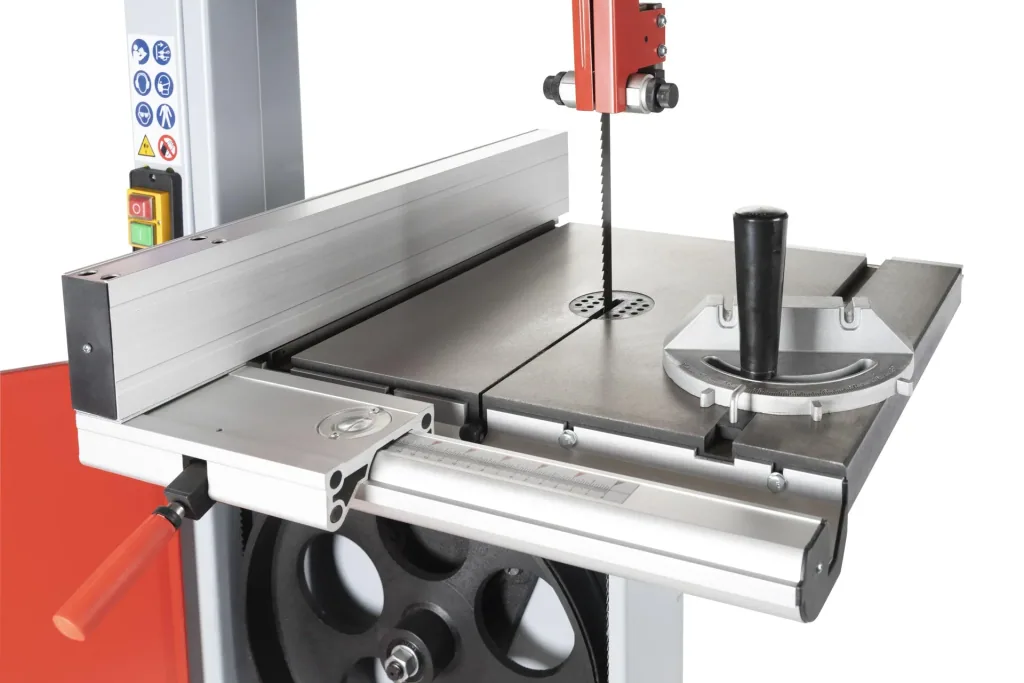

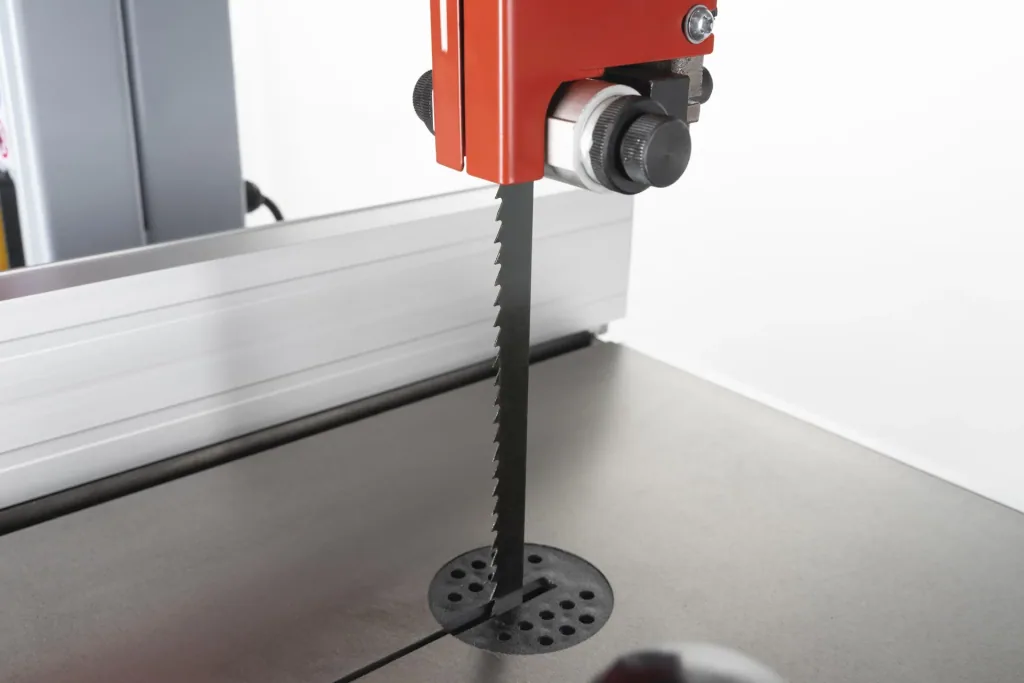

- Precision saw blade guide can be positioned precisely using a handwheel and »» toothed rack

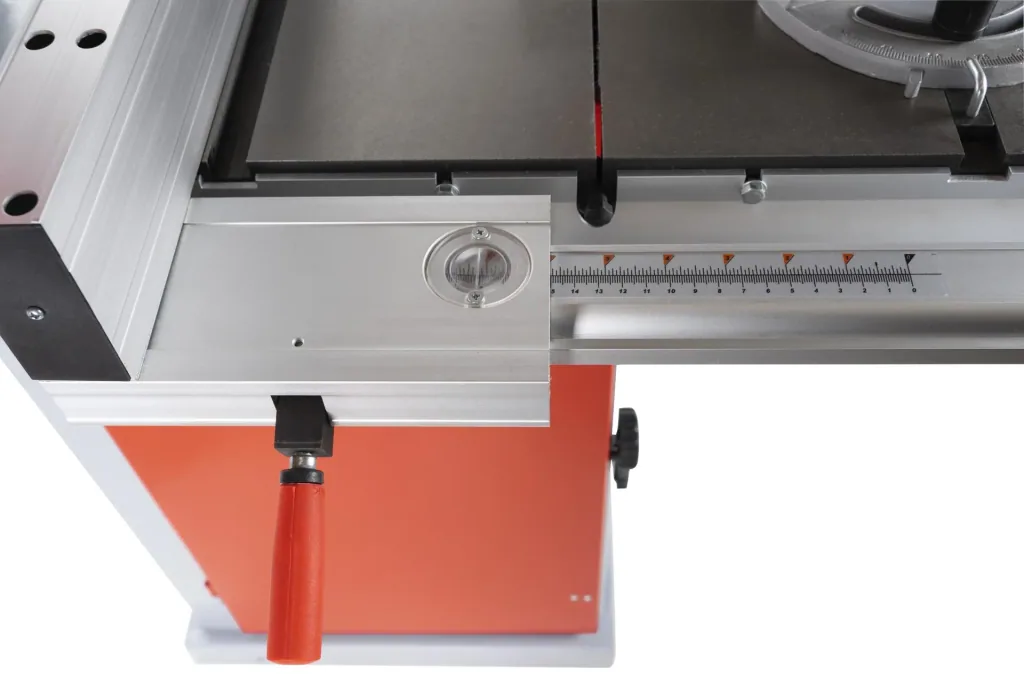

- Aluminum stop with measuring scale and quick release
- Saw blade width from 6 mm to 20 mm possible

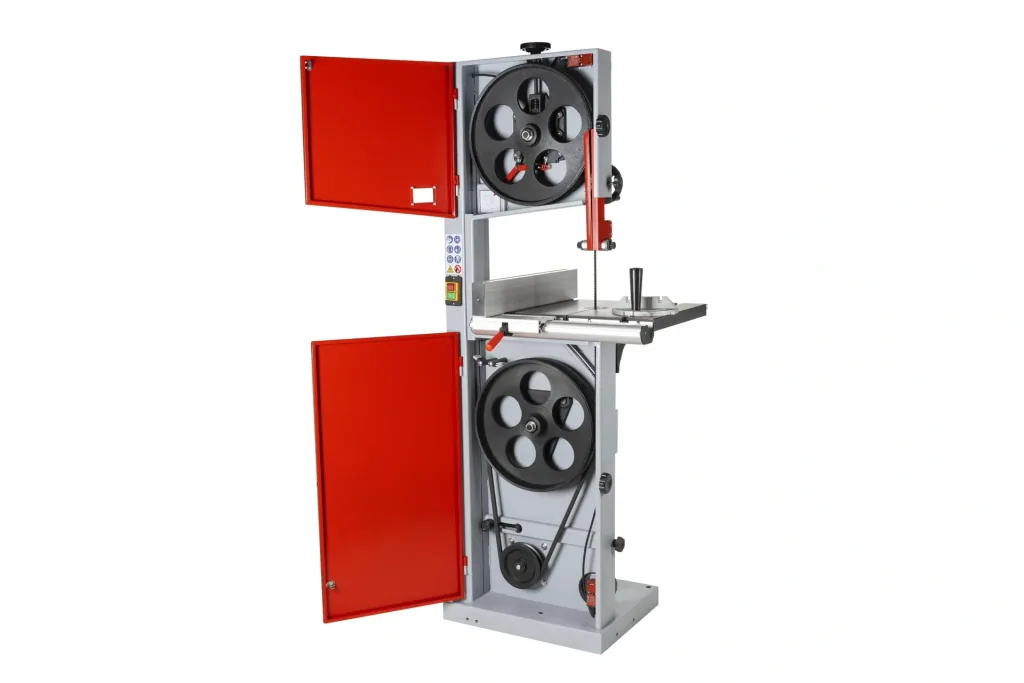

- Robust steel wheel with rubberized tread
- High stability thanks to solid sheet metal construction with minimal space requirements
- Machine height: 175 cm
Thrust / max. cutting width: 380 mm
Cutting width at the longitudinal stop: max. 240 mm
Cutting height at 90°: 220 mm
Band saw table:
- Table dimensions 500 x 400 mm
- Swivel range 0° - 45°
- Table height 990 mm
- Band saw band length 2950 mm
- Band saw band width 6 - 20 mm
- Roller diameter 400 mm
Motor power S1 (100%) / S6: 1.1 kW / 1.5 kW
Extraction connection: 100 mm
Mains voltage: 230 V
Weight: approx. 135 kg
Caution: If necessary, the phases must be swapped before commissioning (L1/L2 or L1/L3).
Scope of delivery:
- 1x saw blade, miter gauge and stop.
| Voltage | |
|---|---|
| Voltage | 400 V |
| Saw blade length | |
| Saw blade length | 2,950 mm |
| Colors | |
| Colors | red |
| Extractor nozzle diameter | |
| Extractor nozzle diameter | 100 mm |
| External dimensions | |
| External dimensions | 1,760 x 600 x 480 |
| Table size | |
| Table size | 500 x 400 mm |
| Swivel range | |
| Swivel range | 0-45 degrees |
| Cutting height | |
| Cutting height | 220 mm |
| Cutting width | |
| Cutting width | 380 mm |
| Weight | |
| Weight | 127 kg |
| Drive | |
| Drive | 380/400 V motor |
| Saw blade width | |
| Saw blade width | 20 mm |
