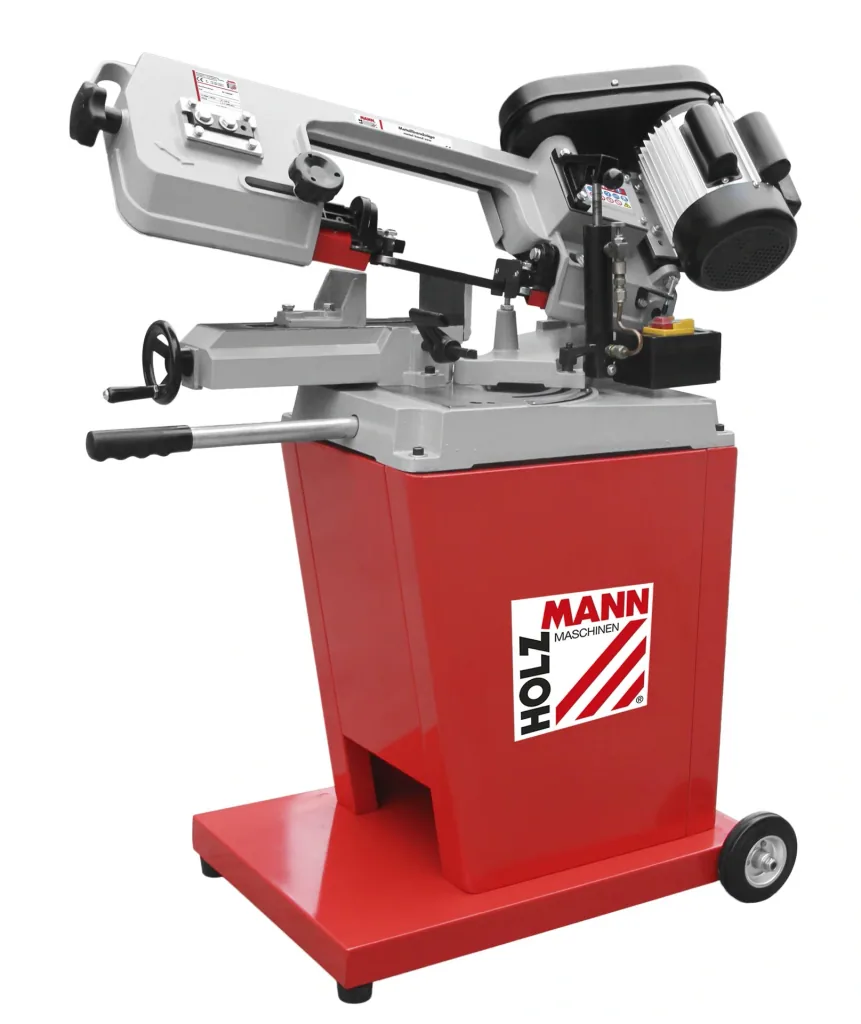

Metallbandsäge BS 128HDR 400V
Guaranteed Secure Checkout
| Item number | WF-848237 |
| Brand | Holzmann |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Rotating saw unit
- Automatic limit switch as standard
- Lowering speed of the saw arm continuously adjustable via hydraulic cylinder
- Solid cast machine with ball-bearing saw blade guide
- Quickly adjustable vice with workpiece stop
- With extendable handle and chassis for easy maneuvering of the machine
- 3 saw blade speeds enable the cutting of various materials and ensure smooth cuts
- With base frame for easier work
Technical data
- Cutting capacity: solid material and pipes 90°/45°/60° Ø 125 / 95 / 50 mm
- Solid material: square and profiles 90°/45°/60° / L x H / 100 x 150 / 95 x 76 / 50 x 56 mm
- Swivel range of saw unit -45° to +60°
- Cutting speeds (3 levels) 23 / 34 / 54 m/min
- Saw band dimensions 1640 x 13 x 0.6 mm
- Motor power S1 (100%) / S6 550 W / 825 W
- Weight 79 kg
Scope of delivery
- HSS saw band
- Carriage system
- Automatic limit switch
- Workpiece stop
- Base frame
| Cutting height | |
|---|---|
| Cutting height | 150 + 76 + 56 mm |
| Saw blade length | |
| Saw blade length | 1,640 mm |
| Voltage | |
| Voltage | 400 V |
| Saw blade width | |
| Saw blade width | 13 mm |
| Drive | |
| Drive | 380/400 V motor |
| Swivel range | |
| Swivel range | -45 to 60 degrees |
| External dimensions | |
| External dimensions | 942 x 442 x 548 mm |
| Weight | |
| Weight | 78 kg |
| Colors | |
| Colors | red |
| Power output | |
| Power output | 825 W |
