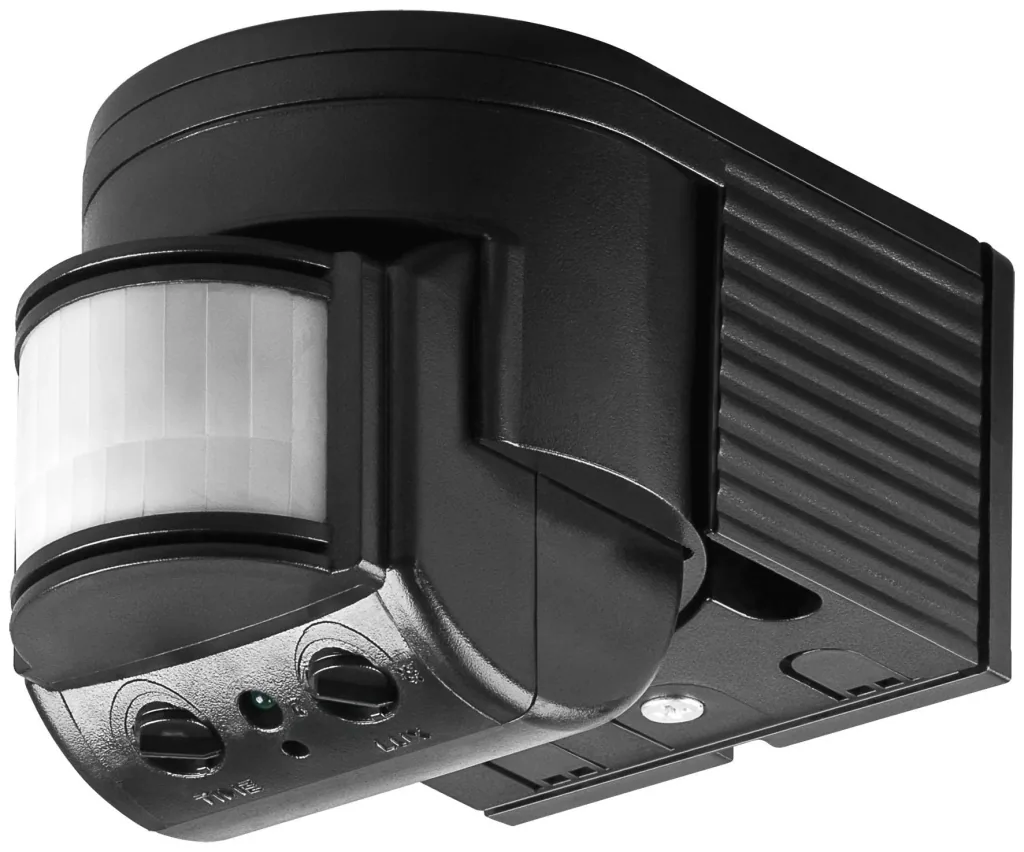

Infrared motion detector ODA - 180° surveillance, max. 12M in black
Guaranteed Secure Checkout
| Item number | WF-854523 |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
Ideal for LED lighting (min. load 1W).
Infrared motion detector for wall mounting indoors or outdoors with variably adjustable sensor.
Suitable for LEDs and other light sources with low base loads.
Infrared motion detector for wall mounting indoors or outdoors with variably adjustable sensor.
Suitable for LEDs and other light sources with low base loads.
- Monitoring angle: 180°
- Power supply: 220 - 240 V/AC
- Adjustable light sensitivity: 3-2000 lux
- Adjustable switch-off delay: 10 seconds to 7 minutes
- Motion detection up to 12 m
- Specification: max. 300 W (ESL) / 1200 W (GL)
- Installation height: 1.8-2.5 m
- Power consumption in standby: 0.1 W
- Power consumption in operation: 0.45 W
- Minimum load: 1 W
- Surface-mounted
- Protection class: IP 44
- Length: 121 mm
- Width: 73 mm
- Height: 81 mm
- Voltage: 220-240 V AC
- Power: 300-1200 W
| Colors | |
|---|---|
| Colors | black |
| external dimensions | |
| external dimensions | 121 x 73 x 81 mm |
EU-Responsible Name: Wentronic GmbH
EU-Responsible Street: Pillmannstr
EU-Responsible House No: 12
EU-Responsible Post Code: 38112
EU-Responsible Town: Braunschweig
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

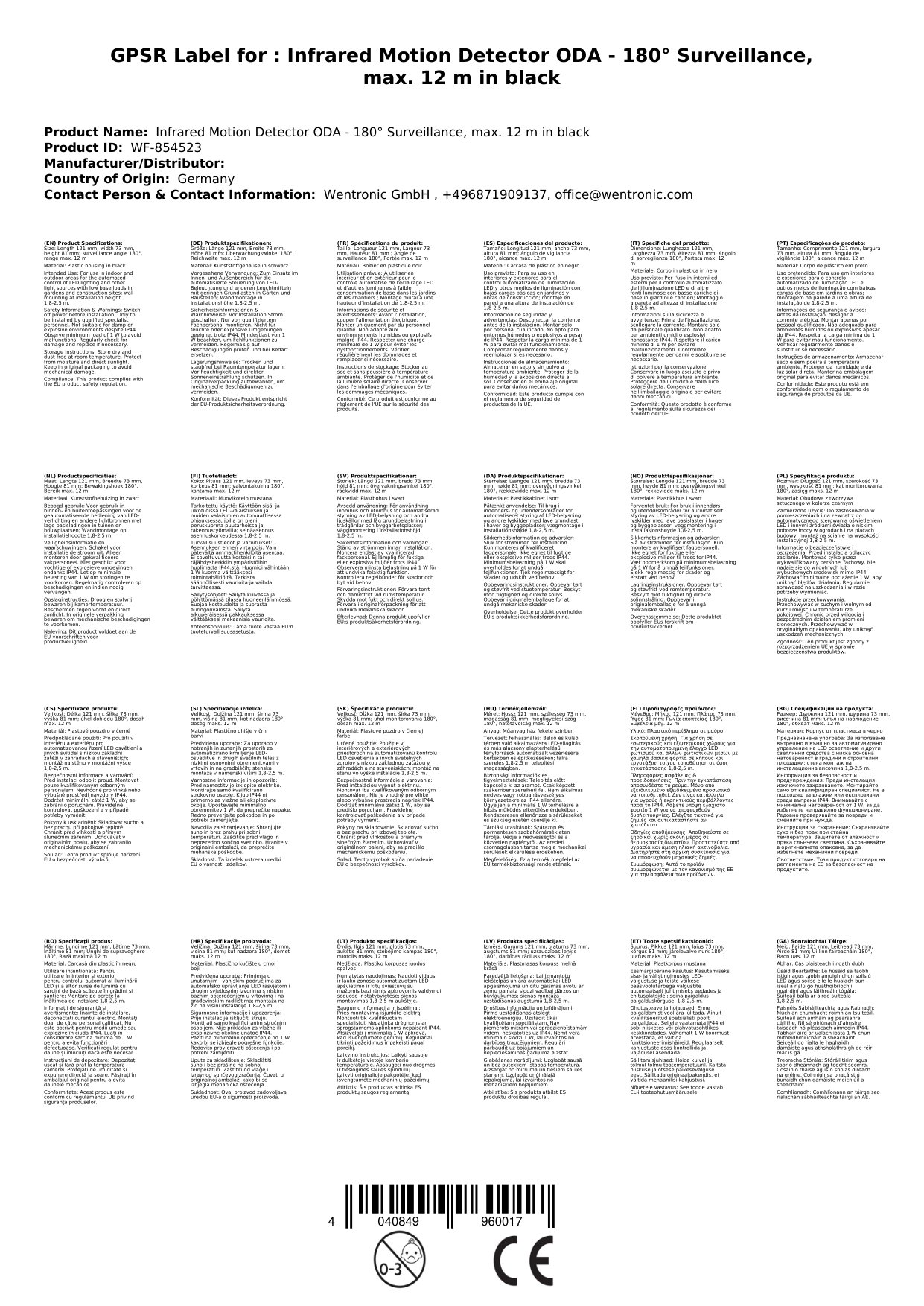

GPSR attachment:
Download
