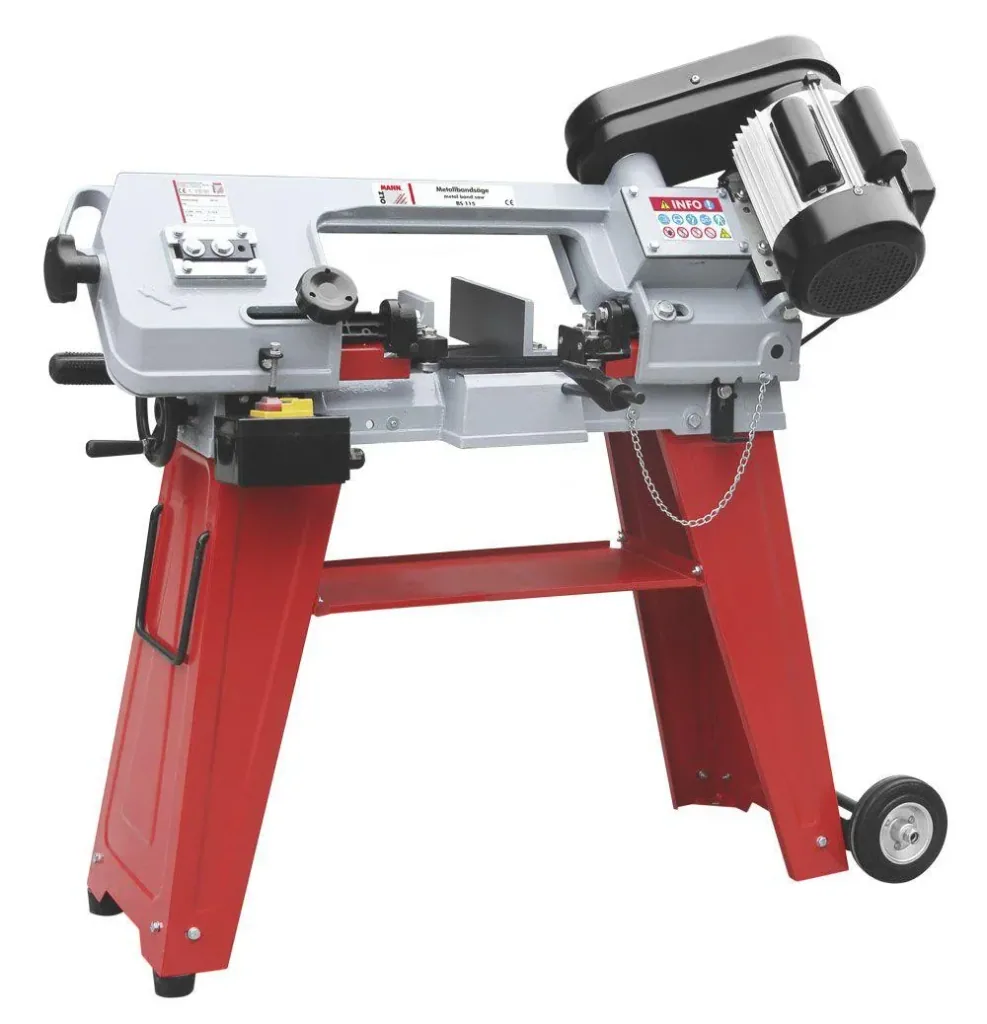

Metal band saw BS 115 230V
Guaranteed Secure Checkout
| Item number | WF-855409 |
| Brand | Holzmann |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Saw blade dimensions: 1638 x 13 x 0.65 mm
- Solid cast machine with ball-bearing saw blade guide
- Automatic limit switch as standard
- Lowering speed
- Saw arm adjustable via spring
- Pivoting vice (0°- 45°)
- Storage compartment for various tools in the frame
Technical data
- Motor power S1 in W 360/550 Watt
- Voltage 230 / 400 Volt / 50Hz
- Pivoting range 0°-45°
- Cutting capacity round Ø 90° in mm 110
- Cutting capacity round Ø 45° in mm 75
- Cutting capacity L x H 90° in mm 110 x 140
- Cutting capacity L x H 45° in mm 110 x 75
- Saw band in mm 1638 x 12.5 x 0.6
- Saw band speed in m/min 20/ 29/ 50 m/min
- Gross weight in kg 60
- Net weight in kg 56
Scope of delivery
- Saw band
- Transport device
- Automatic Limit switch
- Vertical table
| Drive | |
|---|---|
| Drive | 230V motor |
| Saw blade width | |
| Saw blade width | 13 mm |
| Saw blade length | |
| Saw blade length | 1,638 mm |
| Voltage | |
| Voltage | 230 V |
| Cutting height | |
| Cutting height | 110 mm |
| Swivel range | |
| Swivel range | 0-45 degrees |
| External dimensions | |
| External dimensions | 382 x 382 x 1020 mm |
| Power output | |
| Power output | 360 W |
| Colors | |
| Colors | red |
| Weight | |
| Weight | 61 kg |
