Flux-cored wire welding machine SG 120 A
Guaranteed Secure Checkout
| Item number | WF-857272 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
Housing made of powder-coated sheet steel, 2 switching stages, thermal overload protection. High duty cycle thanks to forced cooling. Suitable for cored wires up to 0.9 mm (small coil).
Technical Specifications
• Max. mains power: 3.2 kVA
• Insulation class: H

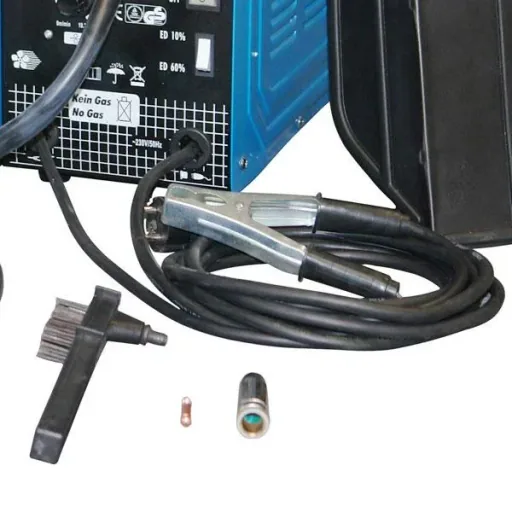

Scope of delivery
• Ground cable with clamp
• Welding shield with glass DIN 11
• Chipping hammer with wire brush.
| Switching levels | |
|---|---|
| Switching levels | 2 |
| Variants | |
| Variants | Flux-cored wire welder |
| Drive | |
| Drive | 230V motor |
| Area of use | |
| Area of use | Steel |
| Technical features | |
| Technical features | Fan cooling |
| Technical features | Thermal protection switch |
| Technical features | 1-phase |
| Weight | |
| Weight | 14 kg |
| Carrying case | |
| Carrying case | No |
| Voltage | |
| Voltage | 230 V |
| Material thickness | |
| Material thickness | 5 mm |
| Duty cycle 60 A | |
| Duty cycle 60 A | 45 A |
| Fuse | |
| Fuse | 16 A |
| Power consumption | |
| Power consumption | 3.2 kW |
| External dimensions | |
| External dimensions | 40 x 18.5 x 30 |
| Insulation class | |
| Insulation class | H |
| Output power | |
| Output power | 3,200 W |
| Flux-cored wire thickness | |
| Flux-cored wire thickness | 0.9 mm |
| Open-circuit voltage | |
| Open-circuit voltage | 31 volts |
| Welding current | |
| Welding current | 90 A |
