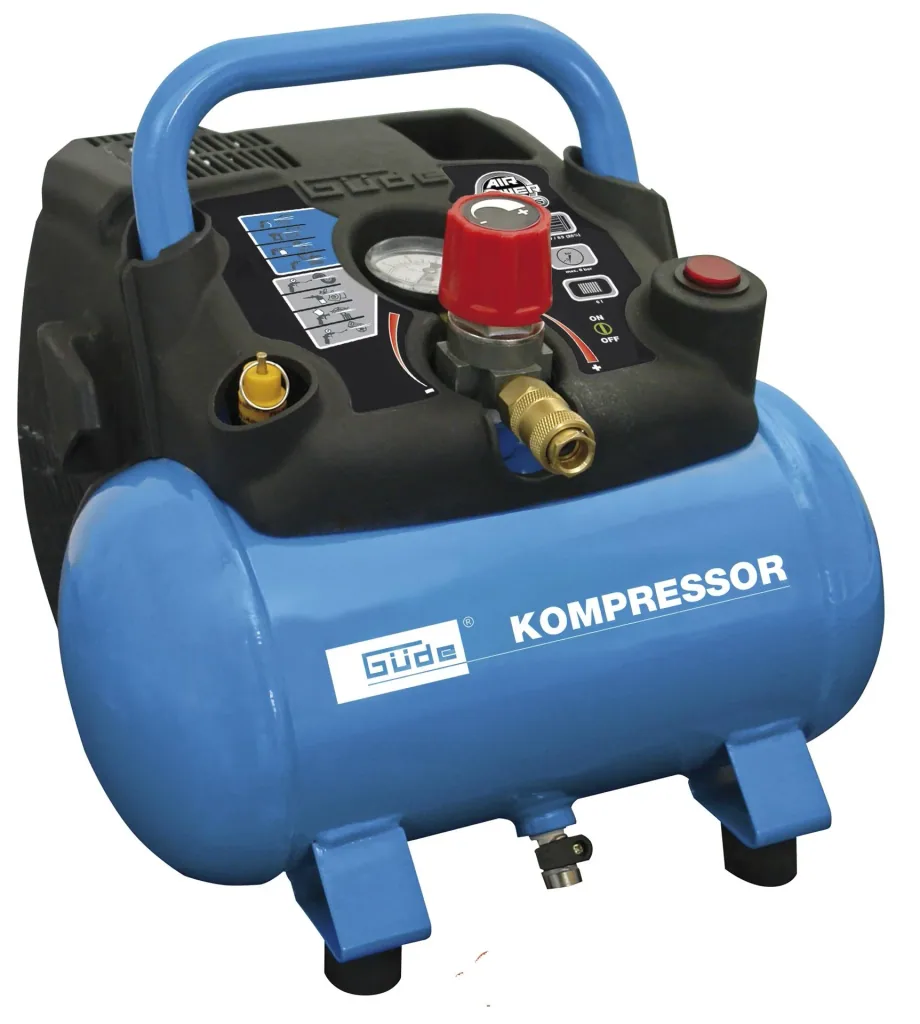

Compressor Airpower 190/08/6 - 7-piece
Guaranteed Secure Checkout
| Item number | WF-857273 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Oil-free and low-maintenance
- Belt drive
- Integrated pressure switch
- Pressure reducer
- Boiler pressure gauge
- 1 compressed air coupling
- Safety valve and condensate drain screw
- Practical storage compartment and carrying handle

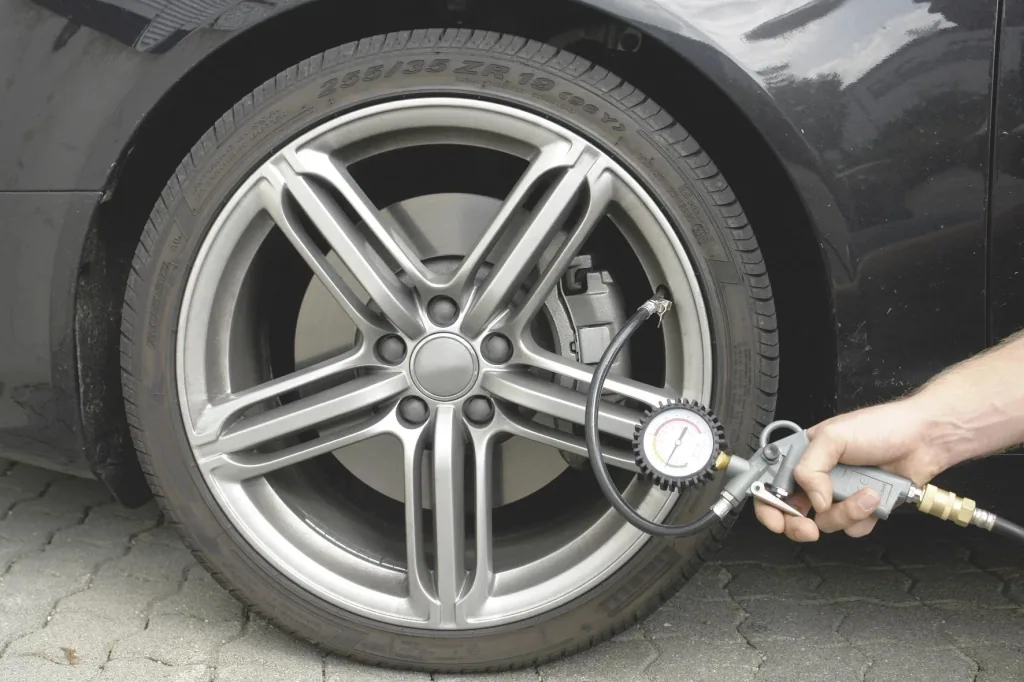

Ready to connect with all fittings. Ideal device for service technicians for blowing out electrical systems, PCs, airbrushes, nailers and for inflating balls, tires, etc.
Technical data
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 1.1 kW
- Operating mode: S3 25%
- Protection class (IP): 20
- Aggregate: oil-free
- Motor speed: 3400 rpm
- Suction capacity: 190 l/min
- Efficient delivery rate 0 bar: 145 l/min
- Efficient delivery rate 4 bar: 80 l/min
- Efficient delivery rate 7 bar: 60 l/min
- Max. Pressure: 8 bar
- Boiler capacity: 6 l
- Number of cylinders: 1
- Pressure gauge: 1
- Noise level LWA: 97 dB
Dimensions
- Hose length: 500 cm
- Length of connection cable: 110 cm

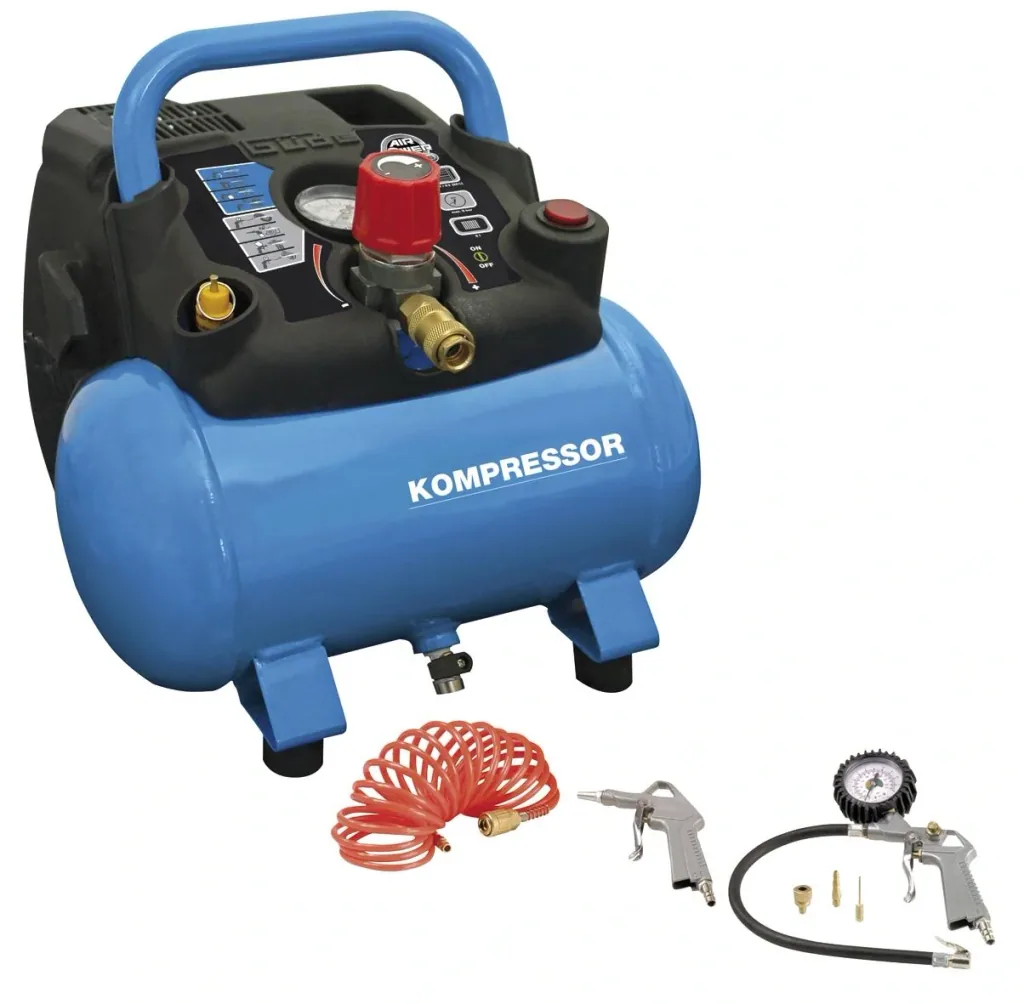

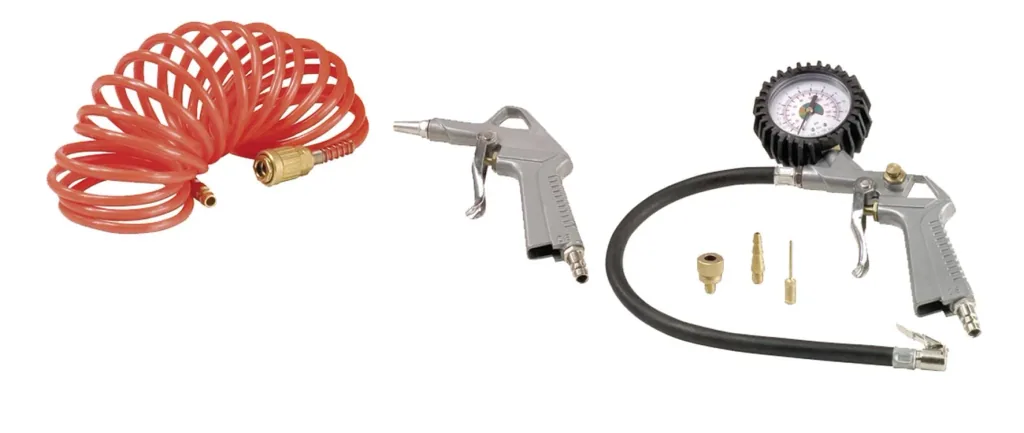

Scope of delivery
- 1 x Airpower 190/08/6 compressor
- 1 x spiral hose
- 1 x blow-out gun
- 1 x tire inflator
- 1 x ball filling needle
- 1 x bicycle valve
- 1 x air mattress valve adapter
| Idle speed | |
|---|---|
| Idle speed | 3400 rpm |
| Output power | |
| Output power | 1,100 watts |
| Delivery rate | |
| Delivery rate | 60 l/min |
| Carrying case | |
| Carrying case | no |
| Maximum pressure | |
| Maximum pressure | 8 bar |
| Motor power kW | |
| Motor power kW | 1.1 kW |
| Weight | |
| Weight | 9.7 kg |
| Noise level | |
| Noise level | 97 dB(A) |
| Drive | |
| Drive | 230V motor |
| Suction capacity | |
| Suction capacity | 190 l/min |
| Number of cylinders | |
| Number of cylinders | 1 |
| External dimensions | |
| External dimensions | 340 x 310 x 335 |
| Voltage | |
| Voltage | 230 volts |
| Cable length | |
| Cable length | 110 cm |
| Tank capacity | |
| Tank capacity | 6 l |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

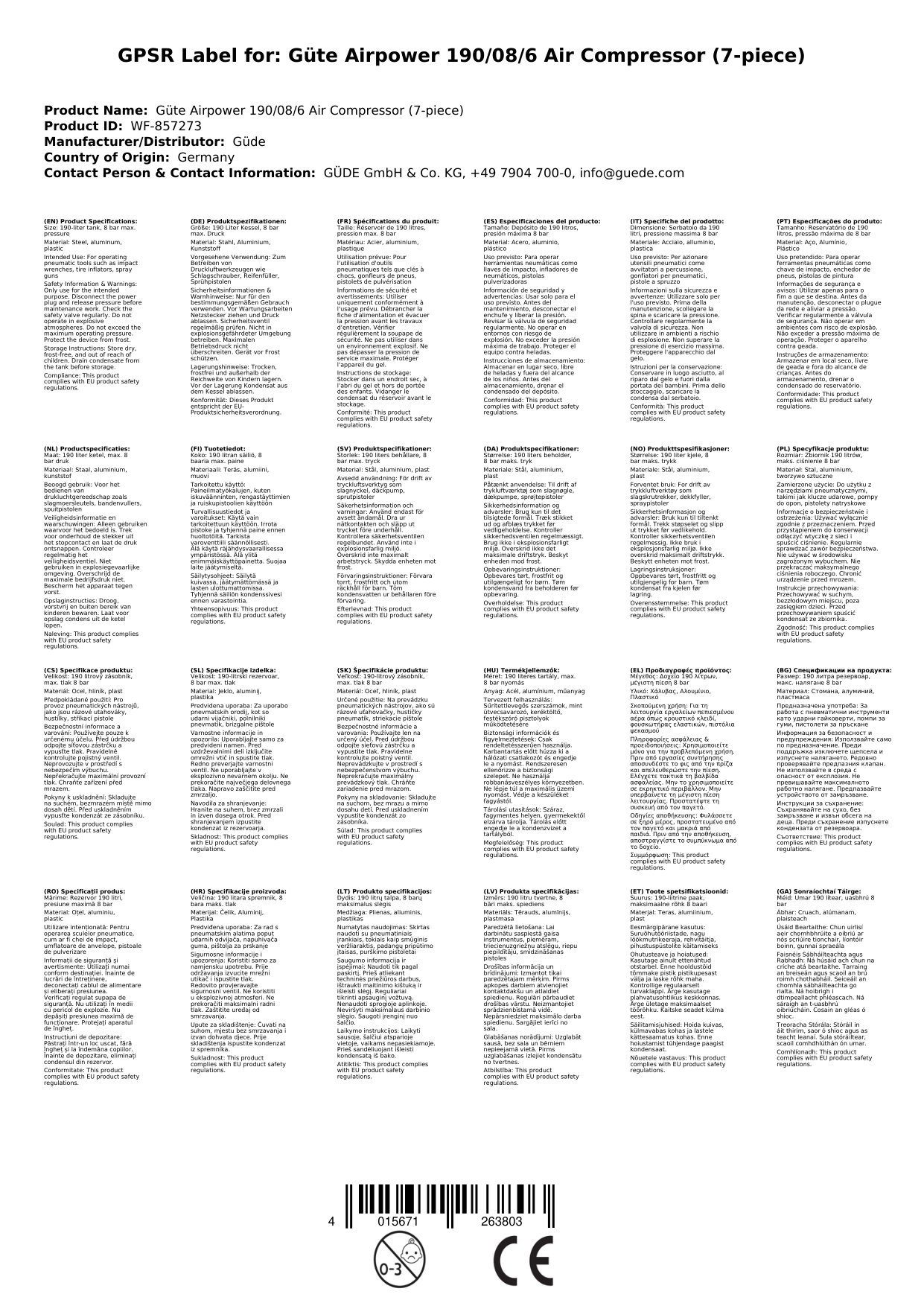

GPSR attachment:
