Electrode welding machine GE 145
Guaranteed Secure Checkout
| Item number | WF-861639 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Housing made of powder-coated sheet steel
- With thermal overload protection

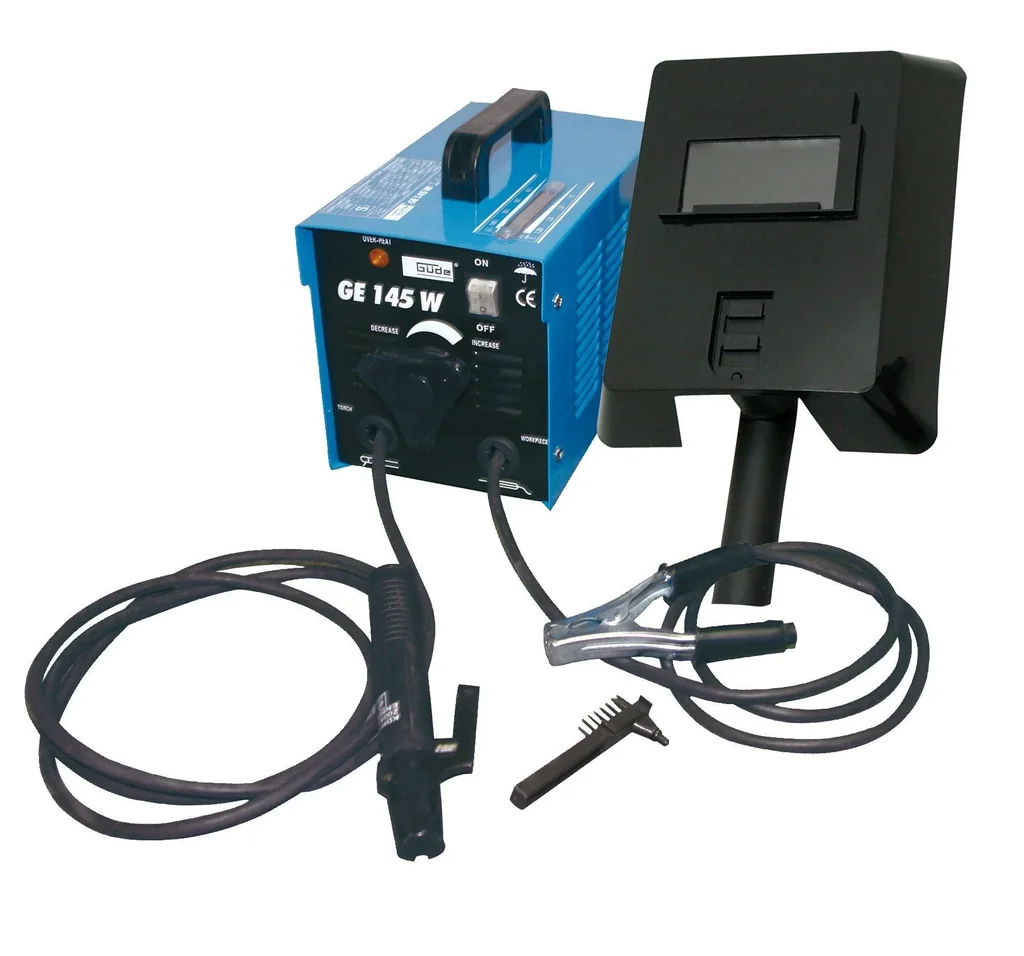

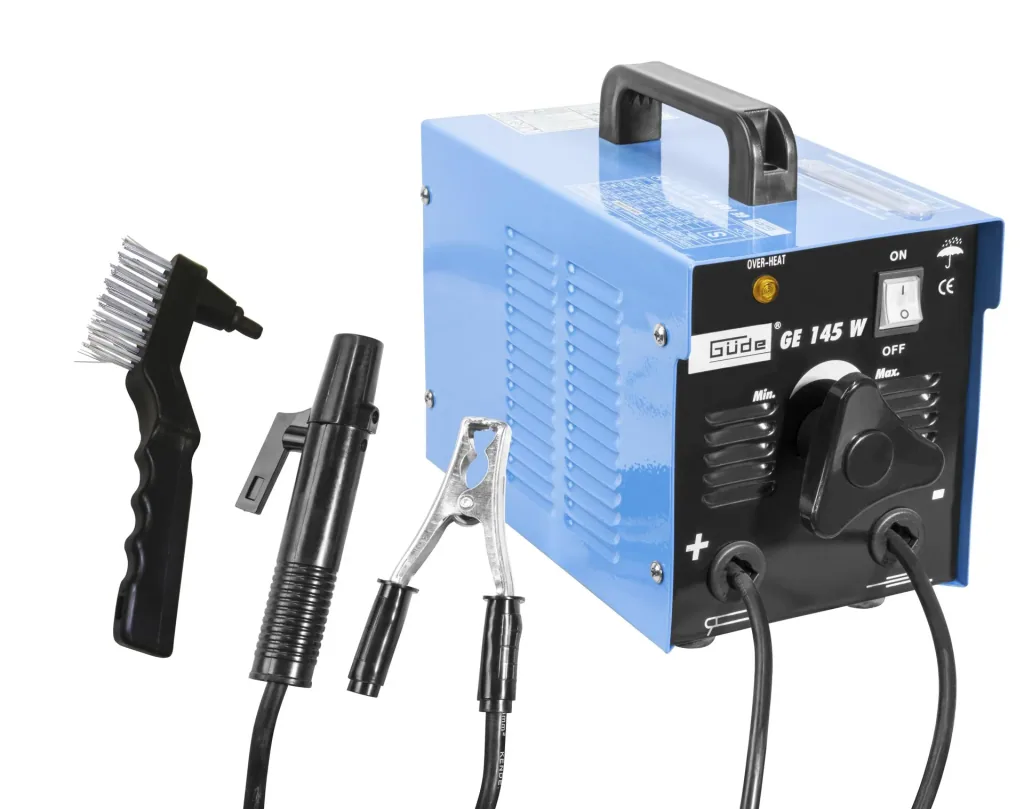

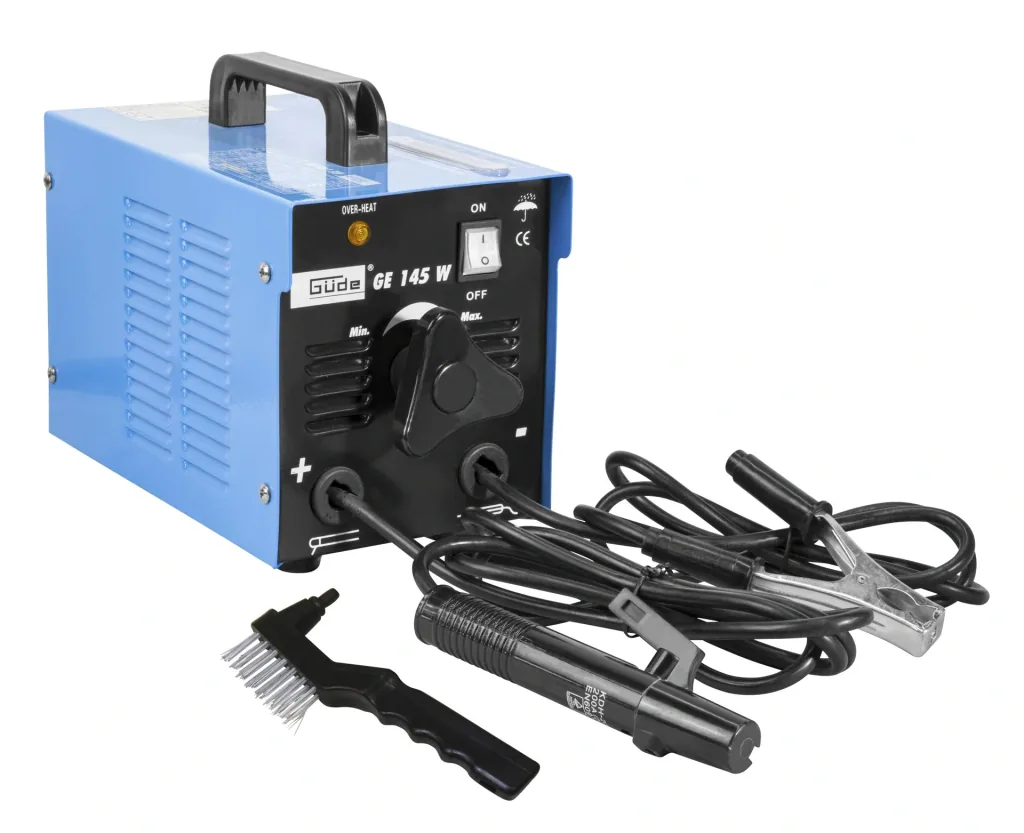

- The welding station equipment consists of: Earth cable with earth clamp,
- Welding cable with electrode holder,
- Slag hammer with wire brush
Technical data:
- Mains voltage: 230 Volt
- Fuse: 16 A
- Control range: 40 - 100 A
- Max. mains power: 5 kVA
- Recommended material thickness: 1.5-4 mm
- Eff. Mains power: 5 kVA
- Open circuit voltage: 48 volts
- Protection class: IP 21 S
- Insulation class: H
- Weight approx.: 14 kg
- Duty cycle at max. current 230 volts: 20%
- Electrode thickness: 1-3.2 mm
- Net weight: 13.1 kg
Dimensions L x W x H: 330 x 175 x 250 mm
Gross weight: 14 kg
| Technical features | |
|---|---|
| Technical features | Thermal protection switch |
| Technical features | 1-phase |
| Drive | |
| Drive | 230V motor |
| Application | |
| Application | Steel |
| Insulation class | |
| Insulation class | H |
| Fuse | |
| Fuse | 16 A |
| Power consumption | |
| Power consumption | 5 kW |
| Voltage | |
| Voltage | 230 volts |
| Material thickness | |
| Material thickness | 4 mm |
| Carrying case | |
| Carrying case | no |
| Weight | |
| Weight | 14 kg |
| AC welding current | |
| AC welding current | 40-100 |
| Electrode thickness | |
| Electrode thickness | 1.5-3.2 mm |
| Output power | |
| Output power | 1,300 watts |
| Open circuit voltage | |
| Open circuit voltage | 48 volts |
