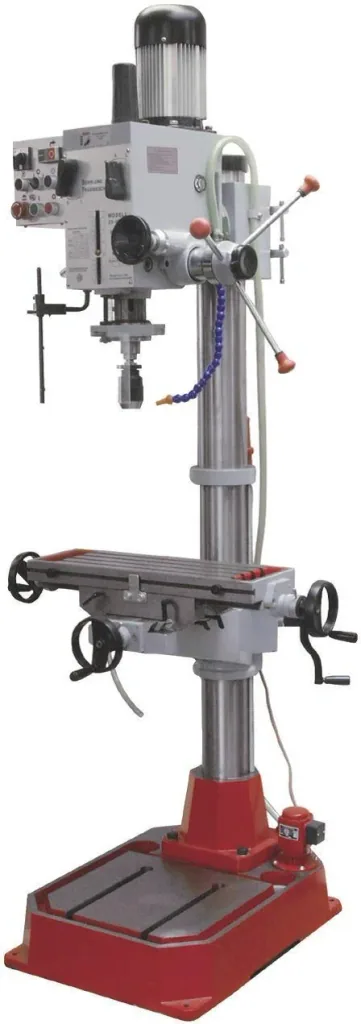

Drilling and milling machine ZX40PC
Guaranteed Secure Checkout
| Item number | WF-864007 |
| Brand | Holzmann |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Solid base plate for high stability
- T-slot guides (14mm) in the cross table for simple, quick fixing of vices etc.
- Maximum flexibility thanks to rotatable and height-adjustable drill head
- Fold-away chuck cover made of Plexiglas
- Coolant system as standard
- With automatic thread cutting device and left-right rotation
- Quill feed via three-arm lever and precision handwheel with depth scale
- Oil bath gear with ground and hardened gear wheels
- Solid base plate for good stability
- Powerful motor ensures high drilling performance
Technical data:
- Max. Drilling capacity in cast iron: 40 mm
- Spindle mount: MK4
- Spindle speeds: 95-1600 rpm
- Quill stroke: 120 mm
- Drilling table: 190 x 585 mm
- Throat depth: 272.5 mm
- Max. distance spindle to table: 754 mm
- Distance spindle to base plate: 1270 mm
- Total height: 2160 mm
- Column diameter: 115 mm
- Motor power S1 (100%) / S6: 1.1 kW / 1.5 kW
- Mains voltage: 400 V
- Weight: 382 kg
Scope of delivery:
- Drill chuck 16 mm
- Reduction MK4/3 + MK3/2
- Drift wedge
- Drawbar spindle M12
The ZX40PC is delivered in a box measuring 1960x730x600 mm.
