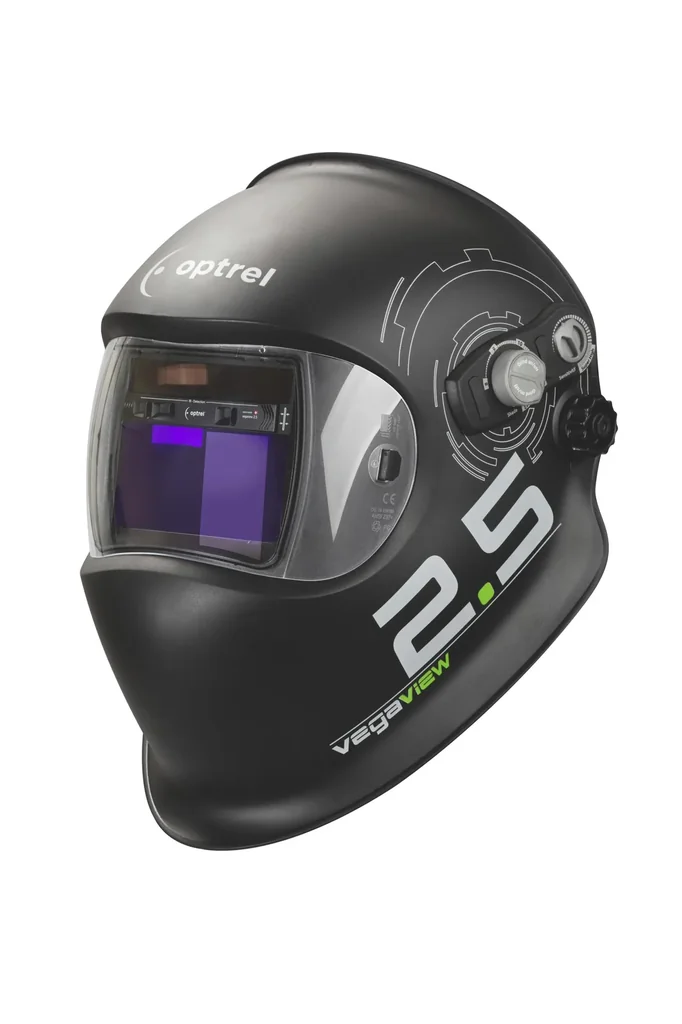

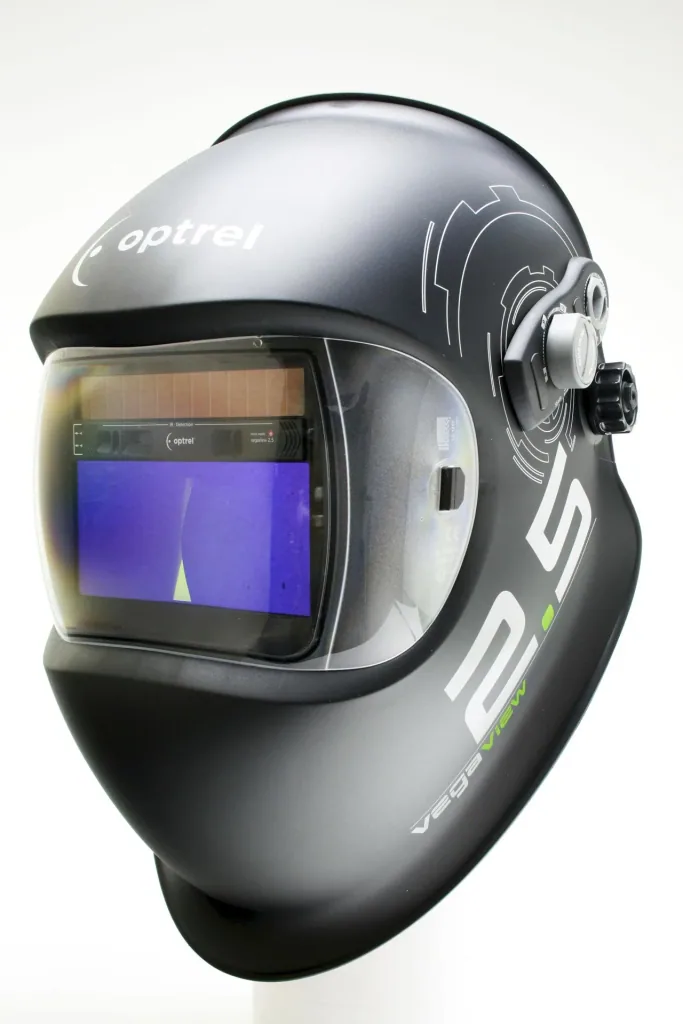

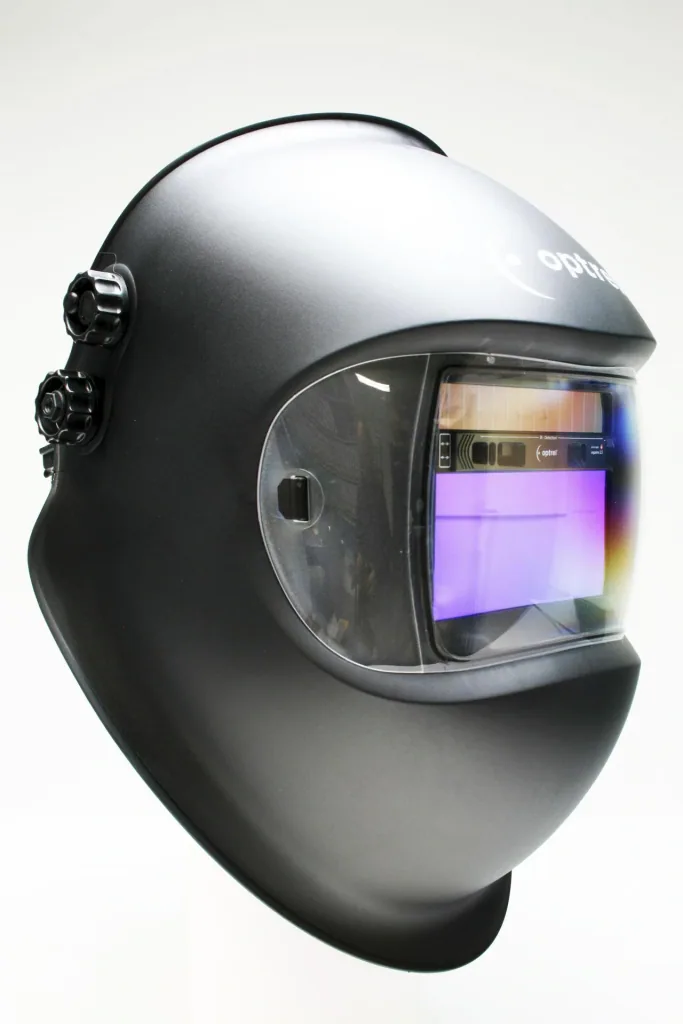

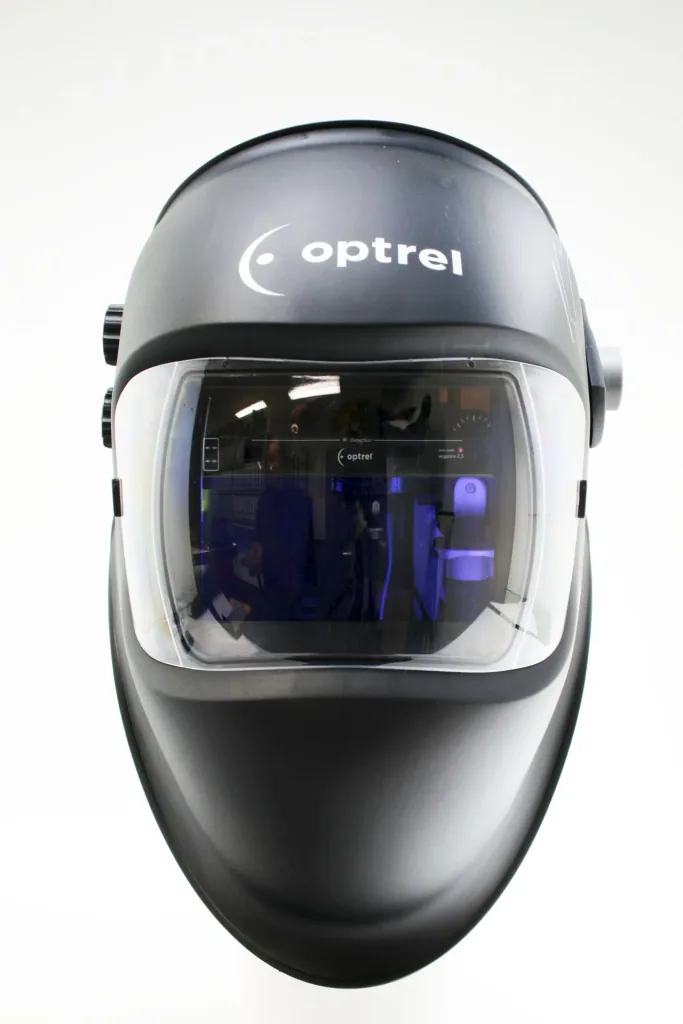

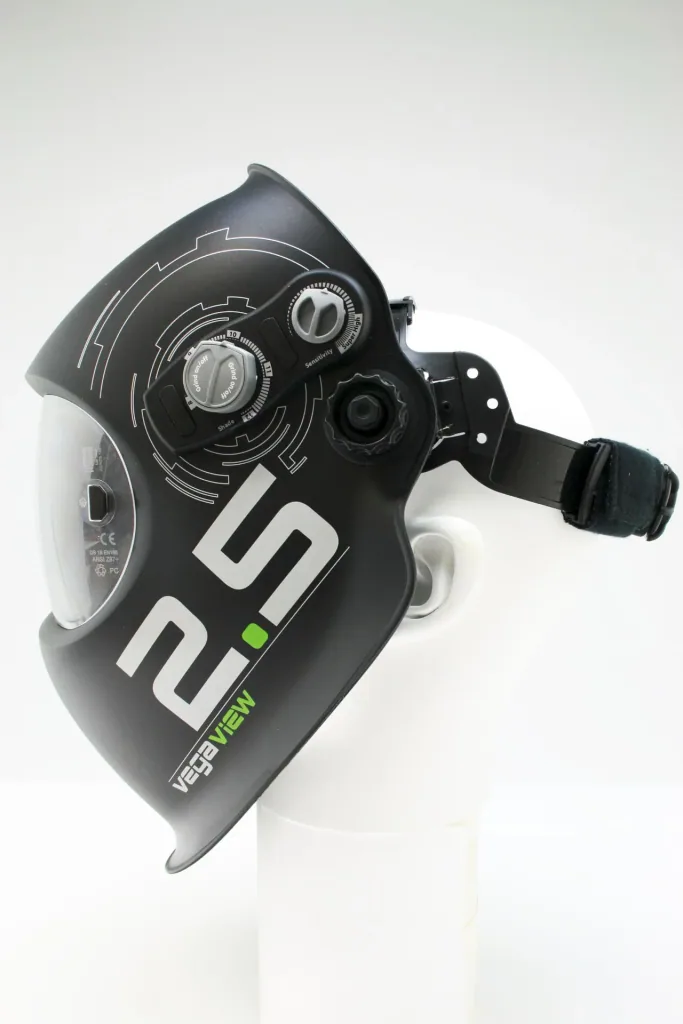

Welding helmet Vegaview 2.5

Bright. Brighter. Vegaview – Bring light into the darkness.

The vegaview 2.5 opens up a new viewing experience for you in bright conditions. The much brighter view of the work environment increases both safety and efficiency in the workplace.

Thanks to the latest optical technology, you can enjoy a detailed and color-fast view of the welding process in shade levels 8-12.

• Extra-bright view when not darkened!
• Color-fast view when darkened!
• Continuous adjustment of the darkness level from DIN 8-12 on the external control panel
• Switching to grinding mode on the external control panel
• Opening time delay (dark - light)
• Continuously adjustable from 0.15 - 1 sec.
• Field of view 50 x 100 mm

Shade level 2.5/ 8-12

With the adjustable shade level in the range 8 to 12, the vegaview2.5 can be used for numerous welding processes.

Grinding mode

By simply pressing a button, the grinding mode is activated, the automatic mode is switched off, and the cassette shows the surroundings in brightness level 2.5.

Respiratory Protection

By combining the optrel e3000 powered air respirator with the Vegaview2.5 fresh air helmet, you get the perfect respiratory protection welding solution.

Colorfast Filter

A revolution: thanks to the TrueColor filter, the environment is perceived in almost colorfast fashion.

Overhead Welding

Thanks to the optimized shape of the helmet and the protective visor, splashes bounce off the helmet.

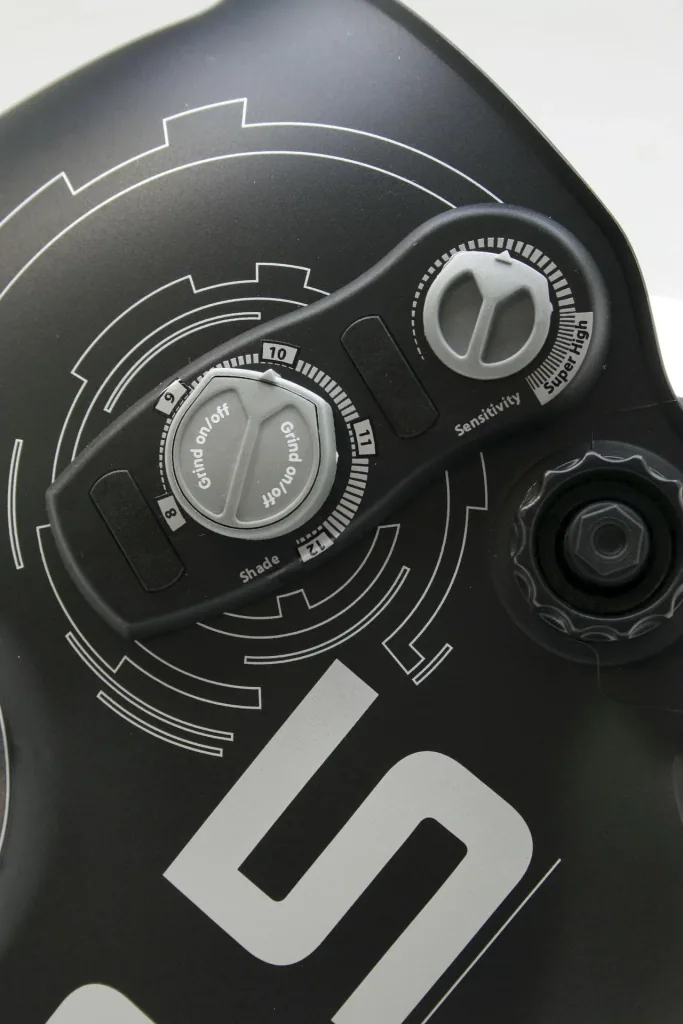

External Operation

The most important functions can be easily set and adjusted on the outside of the helmet.

Sensitivity Control

The sensitivity control allows the automatic glare protection cassette to be optimally adjusted to the ambient conditions.

Comfort headband

Ensures ideal weight distribution and reduces strain on the head and neck to a minimum.

Patented eccentric

Allows the welding helmet to be tilted at an optimal distance from the welder's chin.

Sensor slider

By adjusting the sensor angle, the helmet always remains focused on the user's work area.

Opening delay

This function delays shutdown after welding; the anti-dazzle cassette brightens up more slowly.

Power supply

2 replaceable 3-volt Li-Ion batteries CR2032 ensure good responsiveness.
Battery life: approx. 2,500 operating hours.

Material

The helmet shell is made of robust PA/GF (glass fiber reinforced polyamide).

Application
This helmet visor can be used for all electrical welding processes such as TIG, MIG/MAG, electrode welding, micro-plasma welding, flux-cored wire welding, plasma welding and gas welding.
NOT suitable for laser welding!
Operating temperature: -10 to +70°C.

Testing and certification: DIN EN 175B and 379. ANSI, AS/NZS, GOST-R.

Weight: 490 g

Technical data:

• Dark/protection levels: continuously adjustable DIN 8-12
• Light level: DIN 2.5
• Adjustment: outside the helmet
• Colorfast filter: yes
• Field of view: 50 x 100 mm
• Detection angle: adjustable 60/120°
• Sensitivity adjustment: yes
• Opening time delay: yes, continuously adjustable 0.15 – 1 sec.
• Grinding mode: yes, in protection level 2.5
• Switching time light-dark: 0.07 ms (at 55°) to 0.10 ms (at RT)
• Switching time dark-light: continuously adjustable 0.15 – 1.0 sec.
• Power supply: 2 Li-Ion batteries 3 V (CR2032)
• On/Off: automatic
