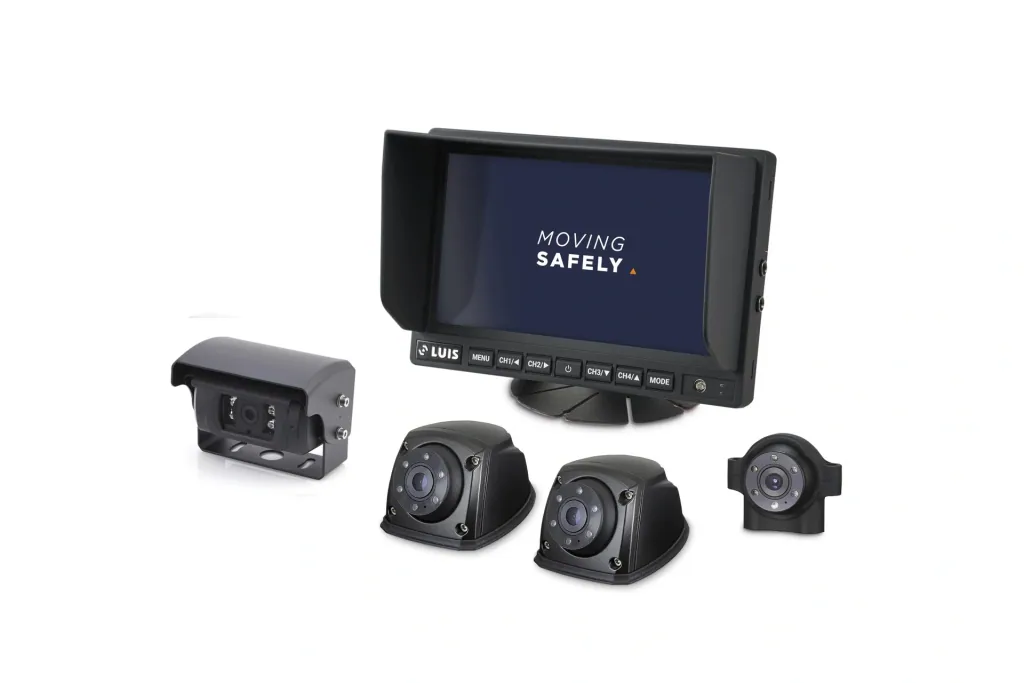

R7-S Quad reversing system with 4 cameras
Guaranteed Secure Checkout
| Item number | WF-879864 |
| Brand | Luis |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Resolution of 1,920 x 1,080 pixels (AHD)
- Excellent night vision of the cameras using IR LEDs
- Cameras are waterproof and dustproof according to IP69K
Note: To connect the cameras, the LUIS Monitor 4-PIN to Camera 5-PIN adapter without external power supply is required (already included in delivery).
Technical Specifications
Camera
- Standard (PAL / NTSC): AHD
- Sensor Type (CMOS / CCD): CMOS
- White Balance: Auto
- Operating Temperature: -20~70°C
- Storage Temperature: -30~80°C
- Heater (Type): Housing
- Protection Class: IP69k
Monitor
- Display Size: 7 inch
- Resolution: 1024 x 600 pixels
- Camera inputs: 4
- Brightness: 500 cd/m²
- Standard (PAL/NTSC): PAL/NTSC
- Video output: No
- Speaker: Yes
- Touch function: Yes
- Menu languages: German, English, French, Spanish, Italian
- Mirror function: vertical and horizontal
- Housing color: black
- Housing material: ABS
- Storage temperature: -30°C~+80°C
- Operating temperature: -20°C~+70°C
- Protection class: IP30
- Operating voltage: 10–32 V
- Monitor size: 180 x 25 x 120 mm
- Weight (monitor only): 2 kg
- Total weight (incl. packaging): 2.3 kg
- Cable length on monitor: 1 m
- Remote control: Yes
- Quad/split function: Yes
- Vibration resistance: 5.9 G
- Weight (incl. accessories): 2.2 kg
- Current consumption: 2.2 A
Scope of delivery
- LUIS 7" Quad Touch Monitor
- LUIS R7-S rear view camera
- LUIS side camera (2x)
- LUIS ball camera
- LUIS 20 meter 5-pin cable
- LUIS 20 meter 4-pin cable (3x)
- LUIS adapter 5-pin monitor to 4-pin camera (3x)
| Weight | |
|---|---|
| Weight | 2.3 kg |
| External dimensions | |
| External dimensions | 267 x 30 x 159.5 mm |
| Display resolution | |
| Display resolution | 1024 x 600 pixels |
| Display size | |
| Display size | 10.1 inches |
