Submersible pressure pump GDT 1200
Guaranteed Secure Checkout
| Item number | WF-885284 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Integrated electronic pressure switch with dry-running protection
- Housing made of impact-resistant plastic
- Pump diameter only 165 mm
- 4 Noryl impellers
- Mechanical seal
- 15 m connection cable
- 15 m polyamide (nylon) rope
- Thermal protection
- Stainless steel shaft
- Carrying handle
- Integrated check valve
Technical specifications:
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 1200 W
- Protection class (IP): X8 Number of impellers: 4
- Discharge volume: 6000 l/h
- Max. discharge head: 40 m
- Max. immersion depth: 12 m
- Max. grain size: 1 mm
- Max. suction: 20 mm
- Max. water temperature: 35°C
- Connection thread: AG1"
- Length of the connection cable: 1500 cm
- Dimensions L x W x H: 165 x 165 x 510 mm
- Net weight: 10 kg
- Gross weight: 11 kg
| Connection size | |
|---|---|
| Connection size | 1 |
| Solids size | |
| Solids size | 1 mm |
| Delivery head | |
| Delivery head | 40 m |
| Diameter | |
| Diameter | 165 mm |
| Output power | |
| Output power | 1,200 watts |
| Material | |
| Material | Stainless steel |
| Material | Plastic |
| Maximum immersion depth | |
| Maximum immersion depth | 12 m |
| Frequency | |
| Frequency | 50 |
| Drive | |
| Drive | 230V motor |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
| Technical features | |
| Technical features | Check valve |
| Technical features | Dry-run protection |
| Technical features | Thermal protection switch |
| Weight | |
| Weight | 11 kg |
| Immersion depth | |
| Immersion depth | 12 m |
| Delivery rate | |
| Delivery rate | 6,000 l/h |
| Voltage | |
| Voltage | 230 volts |
| Cable length | |
| Cable length | 15 m |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

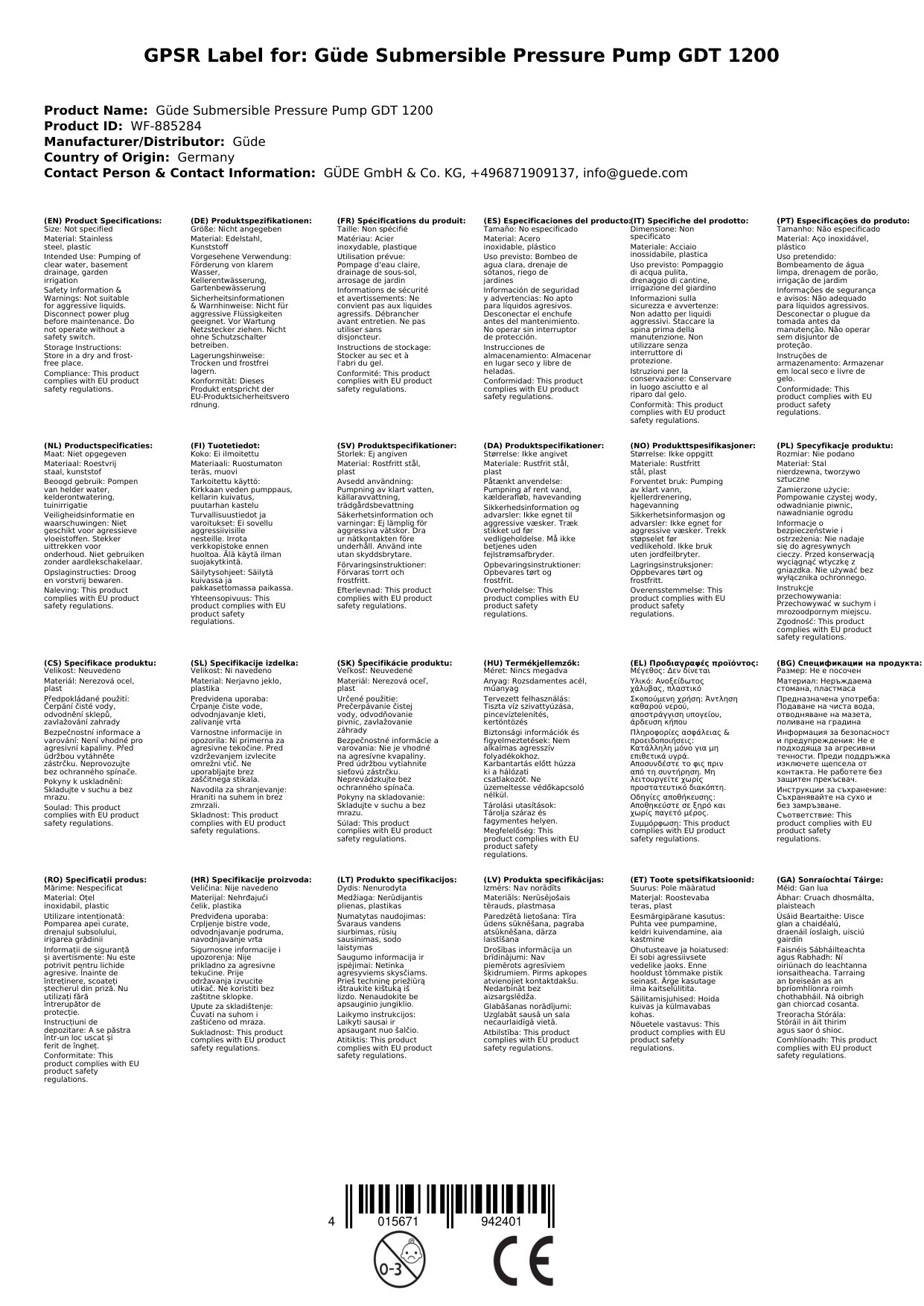

GPSR attachment:
