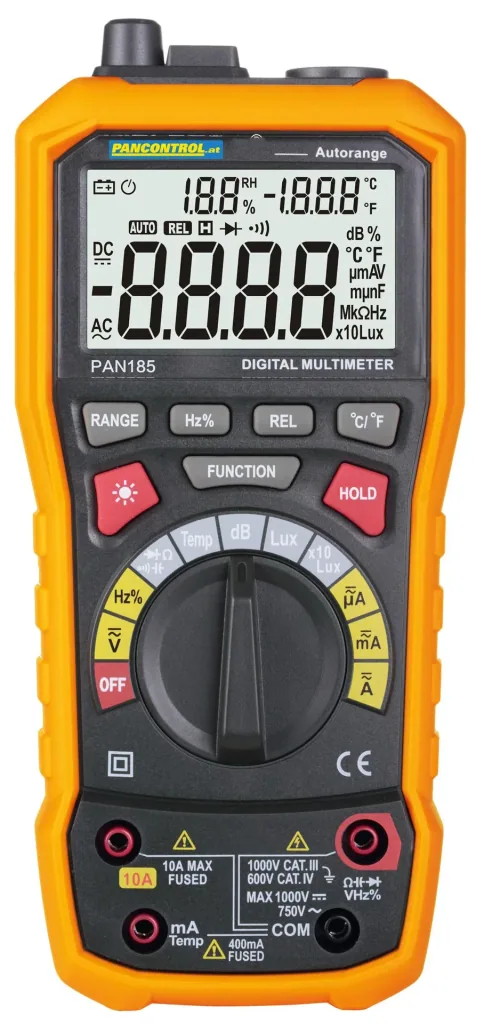

PAN 185 - Multisensor measuring device for electrical and physical quantities
Guaranteed Secure Checkout
| Item number | WF-891190 |
| Brand | Pancontrol |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Digital display 20 mm
- Backlight
- Display value up to 3999
- Automatic and manual range selection
- Data hold
- Capacitance measurement
- Frequency measurement
- Temperature measurement
- Humidity measurement
- Luminous intensity measurement
- Relative value measurement
- Sound level measurement
- Duty cycle in % (PBM) 1 - 99%
- Automatic switch-off
Technical data.
- DC voltage (V =): 0.1 mV - 1000 V
- AC voltage (V ~): 0.1 mV - 750 V
- DC current (A =): 0.1 μA - 10 A
- Alternating current AC (A ~): 0.1 μA - 10 A
- Resistance (Ω): 0.1 Ω - 40 MΩ
- Frequency (Hz): 0.01 Hz - 100 kHz
- Capacitance (F): 10 pF - 100 µF
- Temperature (°C) (Type K sensor): -20 °C - +1000 °C
- Relative humidity (% RH): 30-95 %
- Ambient temperature: 0 °C - 40 °C
- Sound level (dB): 35 dB - 100 dB
- Luminous intensity (Lux): 1 Lux - 40,000 Lux
- Acoustic continuity tester •))): <50 Ω
- Accuracy (%): 0.7% - 5.0%
Dimensions: 204 x 93 x 57 mm
Weight (gross / net) 846 / 361 g
Required battery(ies): 4x 1.5V AAA
Measurement category (CAT) CAT III 1000 V / CAT IV 600 V
Scope of delivery:
- Instruction manual
- Test cable
- Type-K temperature sensor
- Case
| Weight | |
|---|---|
| Weight | 361 g |
| Battery type | |
| Battery type | Primary cells zinc carbon (ZnC) up to 50 g |
| Number of batteries | |
| Number of batteries | 4 |
| External dimensions | |
| External dimensions | 204 x 93 x 57 mm |
