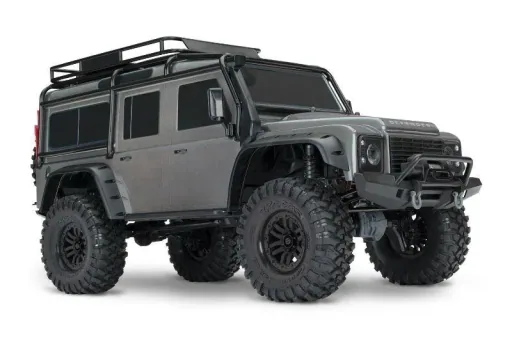

TRX-4 Land Rover Crawler 1/10 silver Crawler 2.4GHz (Link-capable) without battery, without charger

• Officially licensed Land Rover Defender body
• Injection-molded scale details including grill, snorkel, and side mirrors
• Robust, functional roll cage
• Tough fenders
• Front bumper with tow hook and replica winch
• Rear bumper with scale accessories and functional spare tire
• Full nylon composite wheel wells and floor pans

Trail-tuned XL-5 HV Waterproof Electronic Cruise Control

• Completely waterproof design
• Five driving profiles
• Sport Mode - forward / brake / reverse
• Race Mode - forward / brake / no reverse
• Training Mode™ - 50% forward / 100% brake / 50% Reverse (patented)
• Trail Mode - Forward / Brake / Reverse / with trailing brake in neutral
• Crawl Mode - Forward / Instant Reverse - No neutral with 100% hill hold brake
• Traxxas EZ-Set® one-knob setup
• Large, efficient heat sink
• Wide voltage range 6-7 cell NiMH (7.2-8.4V) and 2-3S LiPo (7.4-11.1V)
• Two-stage Low Voltage Protection (LVD)

Motor

• Powerful Titan™ 21T reverse rotation motor with internal cooling fan
• Precision, pre-set gear mesh settings
• Motor retention separate from Timing Belts

Portal Axles

• Increase ground clearance (3.14")
• Eliminate torque twist
• Steel Gears
• Improve axle geometry and reduce drive shaft stress

Rigid Steel Frame

• 1.5mm thick steel frame rails increase torsional rigidity
• Innovative design allows for four wheelbase positions (300mm, 312mm, 324mm, 336mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Cable routing clamps integrated into the frame rails

Drivetrain

• Solid shaft driven four-wheel drive
• Robust 6mm steering knuckles
• Steel front CVDs
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable operation
• Steel gearbox

Innovative battery compartment

• Attached battery compartment allows quick and easy access to the battery
• No pins to lose
• Space for various batteries
• Suitable for long, full-size batteries
• Integrated compartment for smaller 1/16 scale batteries (with optional strap)
• Transmission
• Two-stage high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for maintenance

Steering

• Chassis mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

Suspension

• Front - 3 link with panhard
• Rear - Triangulated 4 link
• Heavy duty rod ends with hollow steel balls
• 5mm diameter steel connecting rods with 4mm threaded ends

Aluminum GTS dampers

• Oil filled coilover GTS shock absorbers exclusive to TRX-4 Chassis
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky-smooth damping for the toughest trails
• O-ring cap seal and double X-ring shaft seals

Wheels and Tires

• 1.9" Canyon Trail tires with trail-tuning foam inserts
• Pre-glued and mounted on rugged black wheels
• Trail-tuned S1 rubber compound
• 12mm steel hex

Transmitter

• TQi™ 2.4GHz 4-channel transmitter
• Traxxas Link enabled
• Telemetry Ready #6533 5-channel micro receiver with Failsafe
• Automatically saves and loads settings for up to 30 Traxxas Link-enabled models
• Exclusive Cruise Control feature for extended trail riding
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• High 13ms frame rate and near-zero latency for responsive control
• Patented, waterproof O-ring receiver box keeps the micro receiver dry
• Sealed ball bearings
• Hex hardware with rust-resistant black oxide coating

Specifications:

• Weight: 3.372 kg
• Hex Size: 12 mm
• Speed ​​Control: XL-5 HV
• Motor (Electric): 21T Reverse Rotation
• Transmission: 2-Speed ​​Hi-Lo, Remote Locking
• Gear Pitch: 32P
• Differential Type: 4-Speed, Remote Locking
• Chassis Structure / Material: Steel Ladder Frame with Composite Cross Members
• Brake Type: Electronic "Hill Hold"
• Drive System: Shaft Driven 4WD
• Steering: Chassis Mounted Servo
• Servo: 2075X Metal Gear
• Transmitter: TQi 2.4GHz 4-Channel Transmitter
• Receiver: 6533

• Battery Compartment L/W/H: 158.75 x 47 x 23/26 mm
• Height: 11.48 in (292 mm)
• Wheelbase: 12.75 in (324 mm)
• Shock Length: 3.54 in (90 mm)
• Front Wheels: 1.9 x 1.02 in (49 x 26 mm)
• Rear Wheels: 1.9 x 1.02 in (49 x 26 mm)
• Front Tires: 4.64 x 1.89 in (118 x 48 mm)
• Rear Tires: 4.64 x 1.89 in (118 x 48 mm)
• Length:  23.07 in (586 mm)
• Front track: 9.78 in (249 mm)
• Rear track: 9.78 in (249 mm)
• Ground clearance: 3.14 in (80 mm)

Included:

• TRX-4, Ready-To-Race® model
• XL-5 HV waterproof electronic ESC
• Titan™ 21T reverse rotation motor
• TQi™ 2.4 GHz radio system
• High-quality maintenance tools
