Solar pump system with filter box "Turin-F"

• 5 W crystalline solar module
• Direct operation without battery storage
• Max. delivery head 80 cm
• Max. delivery rate 470 l/h
• Durable, low-wear pump
• Includes filter box
• 4 riser pipes and 2 sprinkler attachments

Ready-to-connect set - simply install the pump in the newly designed filter box and connect it to the solar module, done!

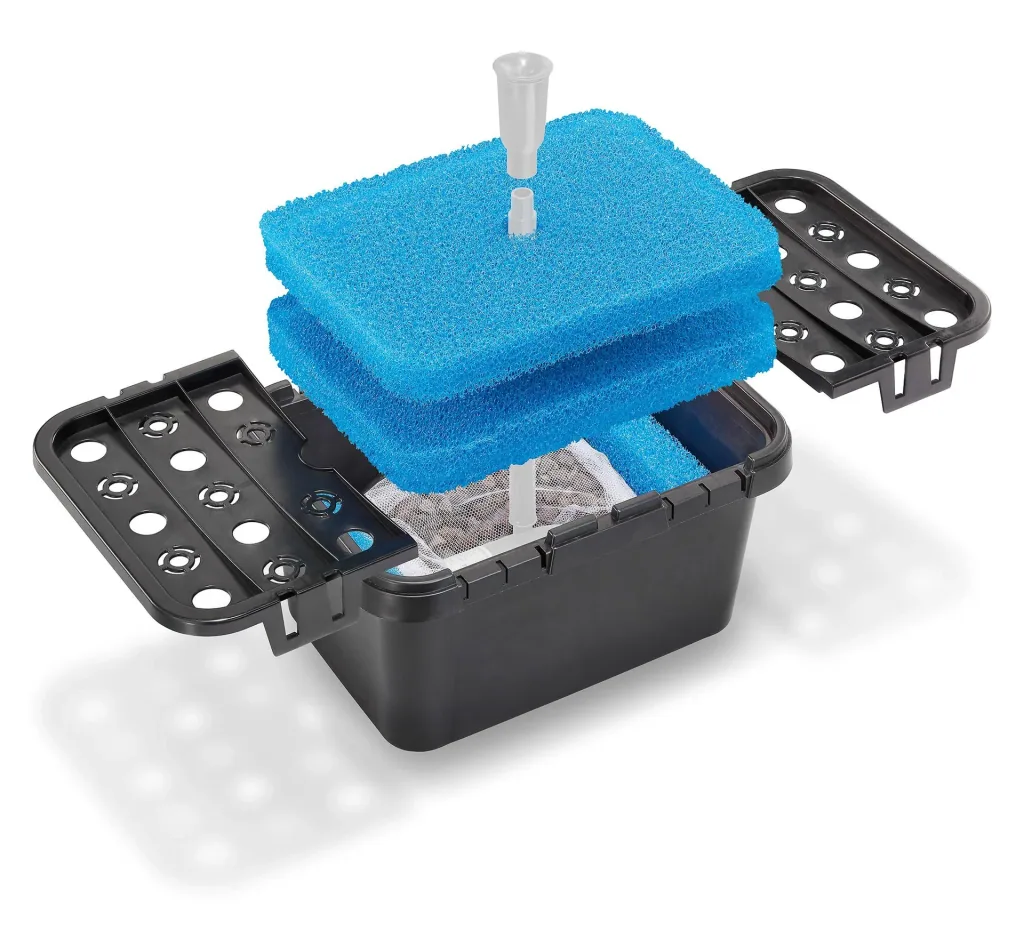

When the pump is running, the water flows from above through the individual filter sponges and filter materials to the pump.
The filtered pond water is then pumped back into the pond via the sprinklers.
The water filtration prevents the sprinkler nozzles from becoming clogged prematurely and allows for easy additional filtration of the pond water.
Biological filter material, e.g., can be added via two enclosed mesh bags. B. Zeolite (not included in delivery) can be inserted into the filter.

Consists of a 5 Wp solar module with ground spike, sprinkler pump with a 5 m connection cable including 4 riser pipes and 2 sprinkler attachments as well as a pond filter box with 4 filter sponges and a mesh bag for filter material.

Technical data

Filter box:


• Volume: approx. 6.5 l

Pond pump:



• Max. flow rate: 470 l/h (in full sunlight)
• Max. Delivery head: max. 80 cm (in full sunlight)
• Operating voltage: 12 V DC
• Power consumption at 12 V: approx. 2.5 W
• Cable length: 5 m
• Protection class: IP 68
• Hose connection: 13 mm
• Design with 4 suction cups on the underside

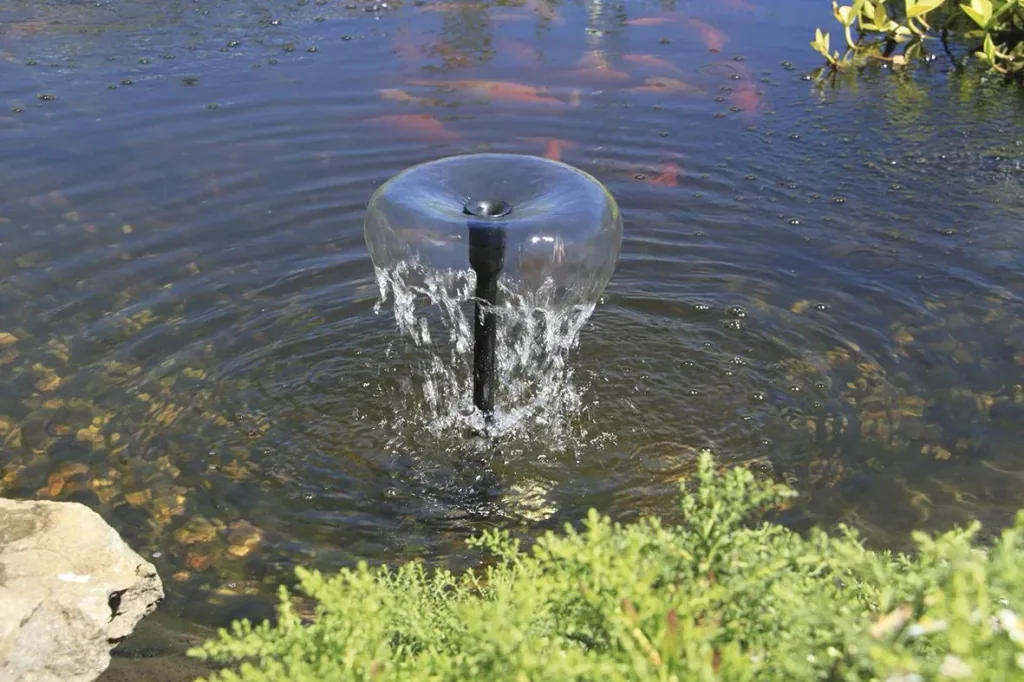

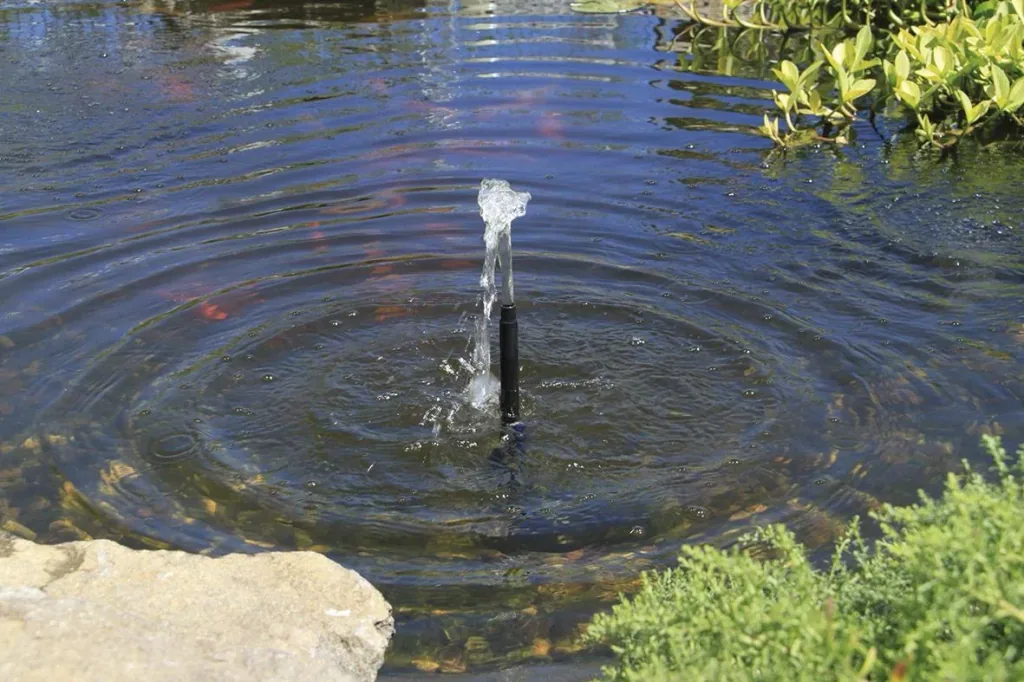

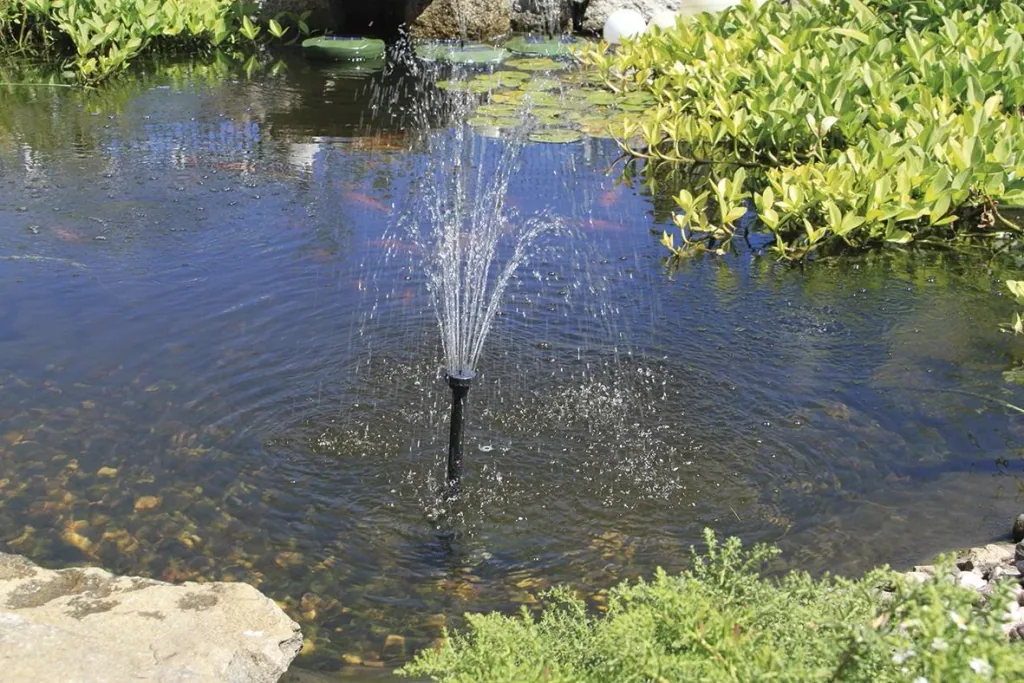

• Nozzle set: 4 riser pipes, each 85 mm long, and 2 interchangeable nozzles (3-stage fountain and water bell)

Solar module:
• Power: 5 Wp
• Rated current: 420 mA
• Nominal voltage: 11.8 V

Dimensions (LxWxH)

• Filter box: 295 x 215 x 160 mm
• Pond pump: 110 x 60 x 80 mm
• Solar module: 255 x 205 x 20 mm

Scope of delivery

• 5 Wp solar module with ground spike
• Sprinkler pump with 5 m connection cable
• 4 riser pipes and 2 sprinkler attachments
• Pond filter box with 4 filter sponges
• Mesh bag for filter material
