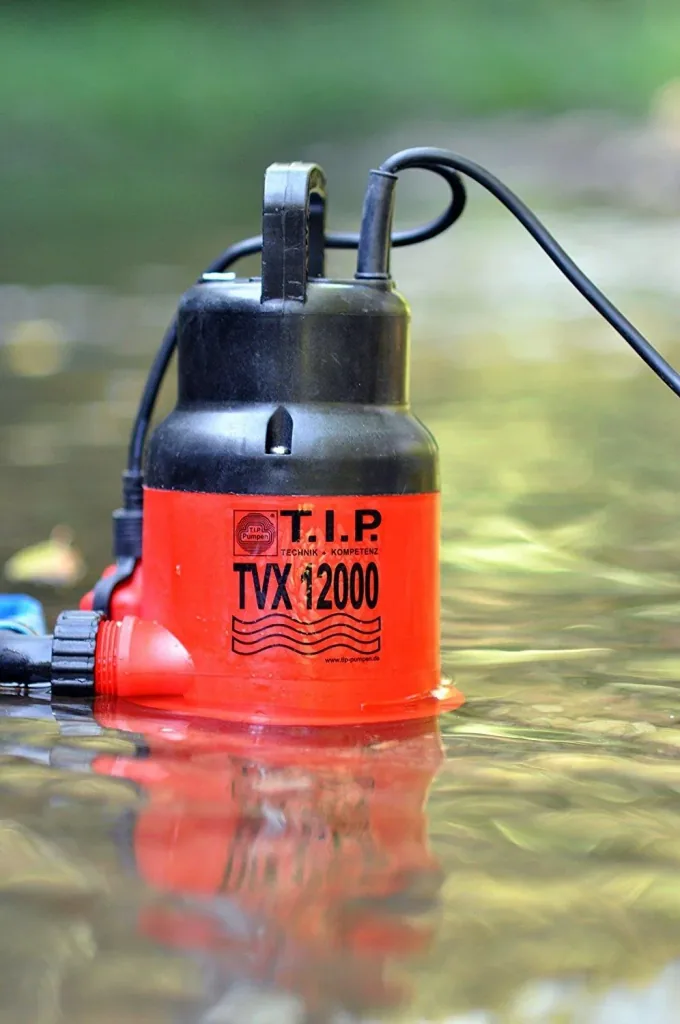

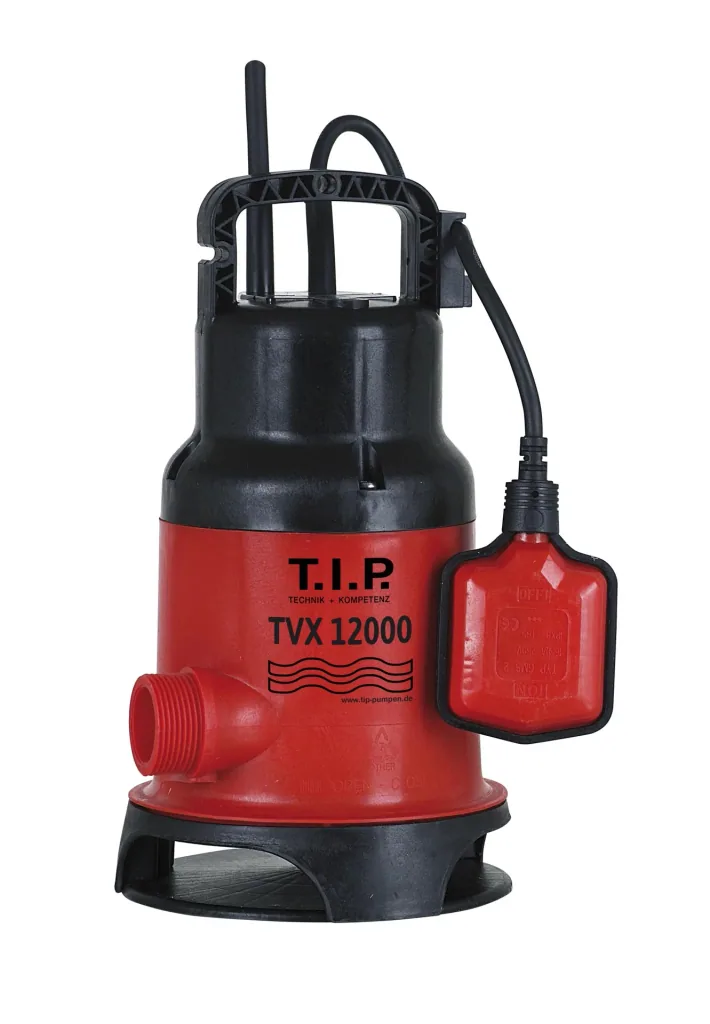

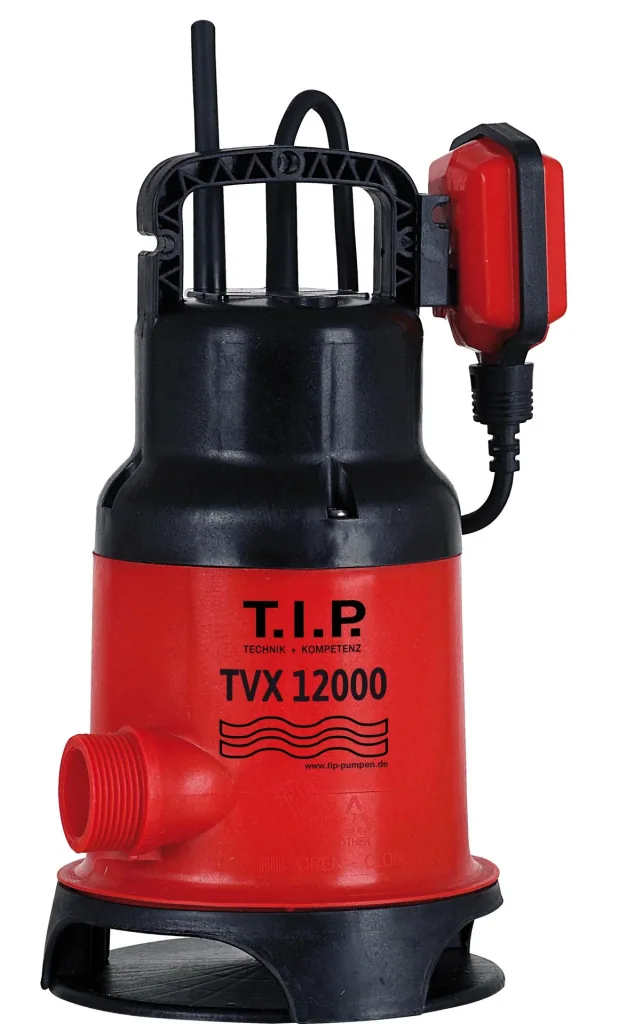

Dirty water submersible pump TVX 12000, up to 10,800 l/h flow rate
Guaranteed Secure Checkout
| Item number | WF-912142 |
| Brand | T.I.P. |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Powerful motor with thermal overload protection. Automatic on/off via float switch.
- Connection elbow 32 mm.
- Motor 480 W, max. delivery head/pressure 6 m / 0.6 bar, max. delivery rate 10,800 l.
- Pump housing: plastic, impact-resistant, grain size max. 20 mm, immersion depth max. 7 m, cable 10 m, temperature max. 35°C, pressure connection 41.91 mm (1 1/4'')

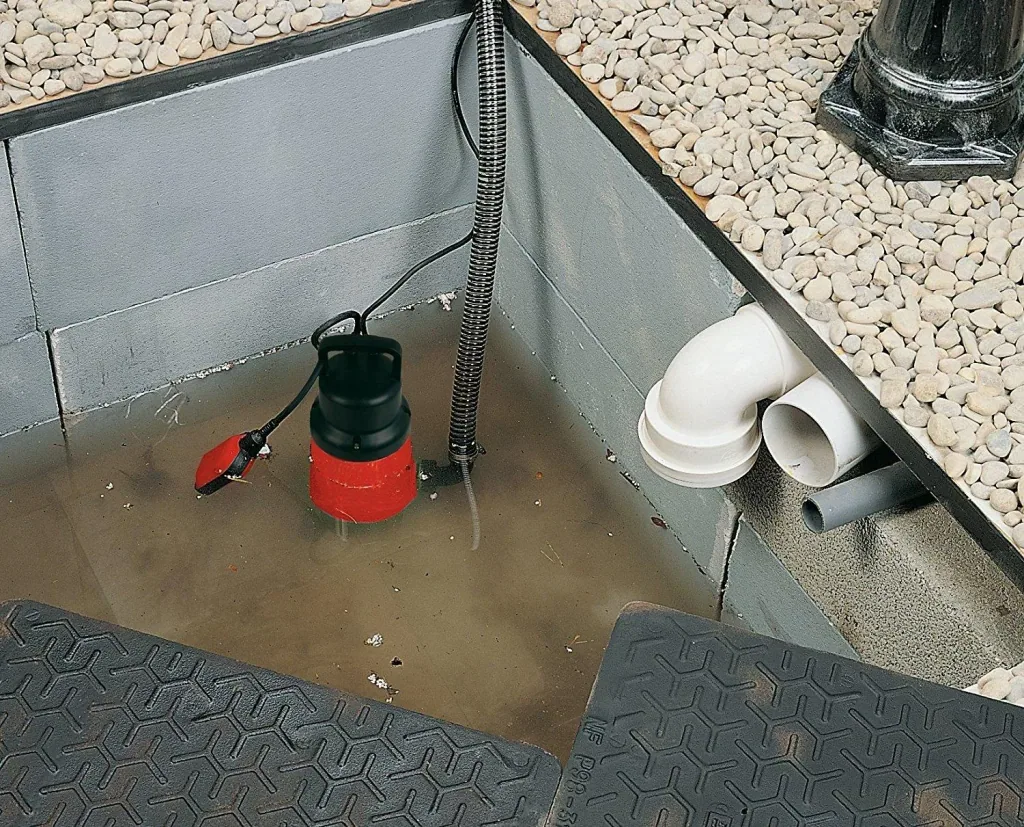

With its high performance, the TVX 12000 can transport a large quantity of liquid in a short time. This makes this model particularly suitable for emergency drainage measures.
Technical Data
- Rated power: 480 watts
- Maximum flow rate: 10,800 l/h
- Maximum discharge head / pressure: 6 m / 0.6 bar
- Pump housing: Plastic, impact-resistant
- Maximum immersion depth: 7 m
- Connection cable: 10.0 m H05RN-Fm
- Pressure connection: AG, 41.91 mm (1 ¼" AG)
- Maximum temperature of medium: 35 °C
- Minimum suction level: 30 mm
- Maximum grain size: 20 mm
- Width: 20.0 cm
- Depth: 18.5 cm
- Height: 31.5 cm
| Technical features | |
|---|---|
| Technical features | Float switch |
| Technical features | Thermal overload protection |
| Drive | |
| Drive | 230V motor |
| Maximum water temperature | |
| Maximum water temperature | 35°C |
| Max. immersion depth | |
| Max. immersion depth | 7 m |
| Cable | |
| Cable | H05RN-Fm |
| Flow rate | |
| Flow rate | 10,800 l/h |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 10 m |
| Discharge head | |
| Discharge head | 6 m |
| Solids size | |
| Solids size | 20 mm |
| Connection size | |
| Connection size | 1 1/4 |
| Material | |
| Material | Plastic |
| Output power | |
| Output power | 480 W |
