Dirty water submersible pump, continuous operation, DTX 7500 T including support system, up to 7,500 l/h flow rate
Guaranteed Secure Checkout
| Item number | WF-912145 |
| Brand | T.I.P. |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- SPECIAL FEATURE: Continuously running dirty water pump including removable stainless steel fish guard and support system for horizontal or vertical permanent installation
- The self-cleaning VORTEX impeller made of high-quality Noryl effectively prevents the formation of blockages
- Automatic switching on and off thanks to a permanently installed float switch depending on the water level
- Motor 320 W, max. delivery head/pressure 6 m/0.6 bar, max. delivery rate 7,500 l/h, pump housing: plastic, impact-resistant, max. grain size 22 mm, max. immersion depth 7 m, 10 m cable, max. temperature 35°C, pressure connection AG 41.91 mm (1 1/4'');
- Hose connection bend 32 mm, multi-dimension connector IG 39.59 mm (1 1/4") - AG 26.44 mm (3/4") + hose connection 28 mm + 34 mm, with support unit for horizontal installation as a stream pump, with protective grille for ponds with fish stocks.

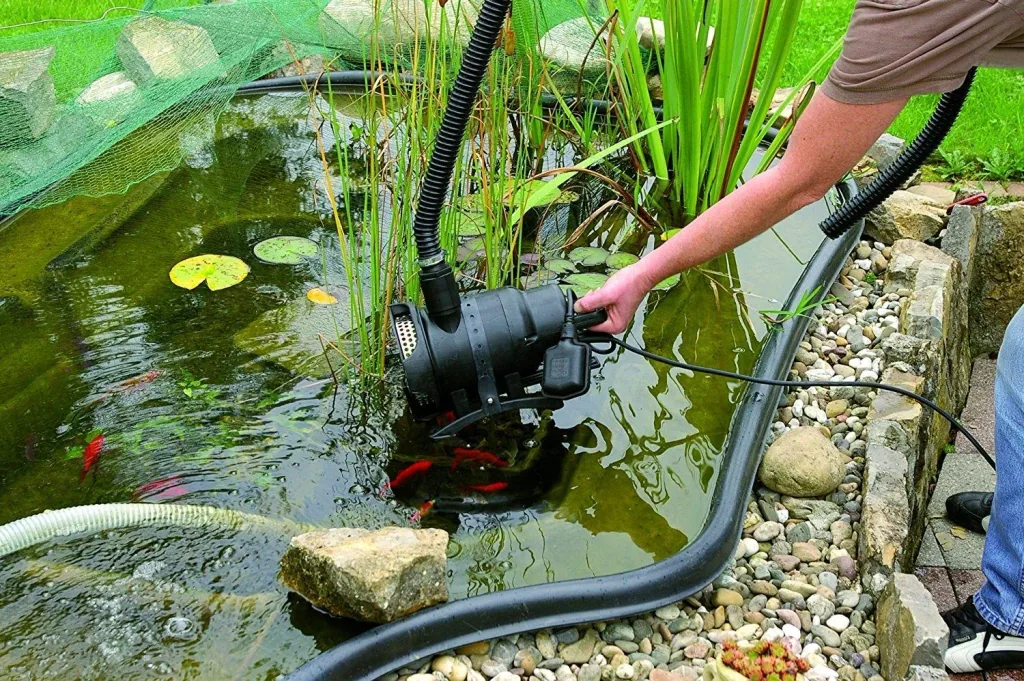

Submersible pump for continuous circulation of clear and dirty water up to a grain size of 22 mm - guaranteed continuous operation thanks to the ceramic-coated motor shaft. The float switch ensures automatic on and off. Includes a newly developed support system for horizontal installation. Suitable for circulating water, e.g., in ponds and for designing streams. Includes protective grille for ponds with fish stocks.
Dimensions
- Width: 22.0 cm
- Depth: 18.5 cm
- Height: 31.5 cm
| Maximum immersion depth | |
|---|---|
| Maximum immersion depth | 7 m |
| Material | |
| Material | Plastic |
| Output | |
| Output | 320 |
| Discharge head | |
| Discharge head | 6 m |
| Solids size | |
| Solids size | 22 mm |
| Connection size | |
| Connection size | 1 1/4 |
| Drive | |
| Drive | 230 V motor |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
| Technical features | |
| Technical features | Float switch |
| Flow rate | |
| Flow rate | 7,500 l/h |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 10 m |
