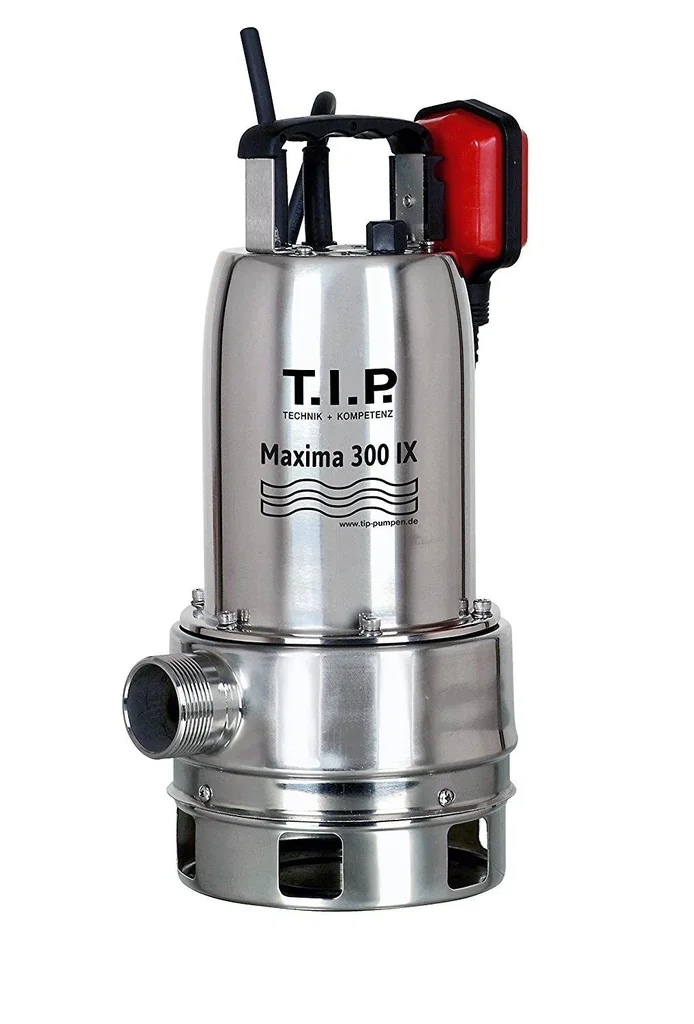

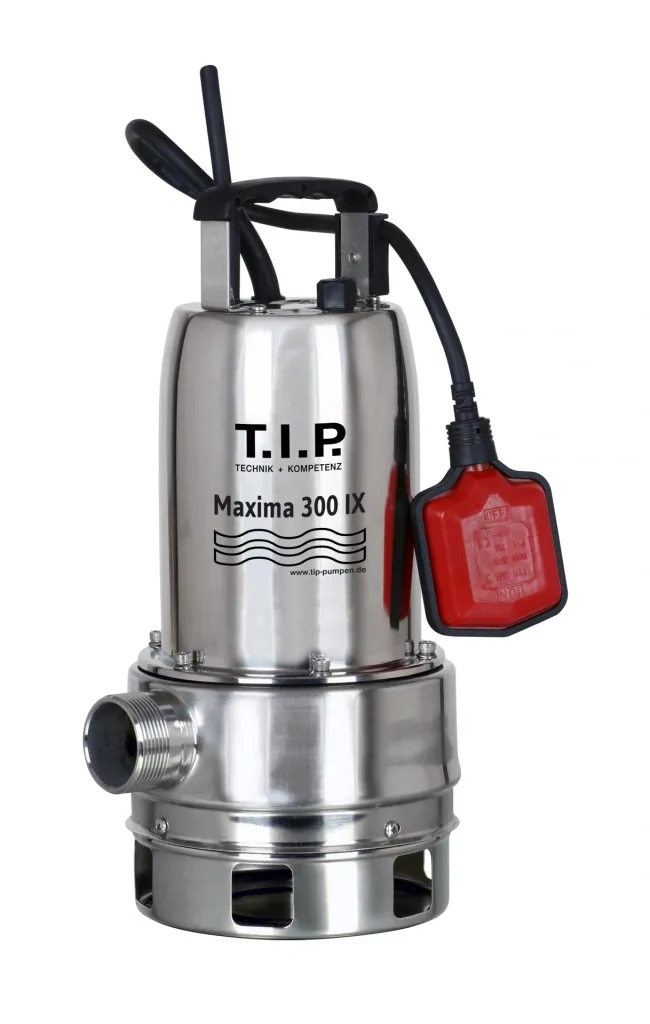

Dirty water submersible pump Maxima 300 IX stainless steel, up to 18,000 l/h flow rate
Guaranteed Secure Checkout
| Item number | WF-912150 |
| Brand | T.I.P. |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- High-quality submersible dirty water pump with a flow rate of 18,000 l/h max. and a grain size of 30 mm max.
- Motor shaft, motor enclosure and pump housing made entirely of stainless steel. The motor has thermal overload protection.
- The self-cleaning VORTEX impeller made of high-quality Noryl effectively prevents blockages.
- Automatic switching on and off thanks to a permanently installed float switch depending on the water level.
The Maxima 300 IX is a robust submersible pump whose motor shaft, motor enclosure and pump housing are made of stainless steel. With this submersible dirty water pump you can pump clear and dirty water with a grain size of up to 30 mm. The special feature of this pump is the pump outlet with external thread for an unreduced connection of hoses for emergency drainage. Thanks to the lockable float switch, the pump can be used in both manual and automatic operation.
The pump is equipped with a maintenance-free capacitor motor with thermal overload protection.
Technical Specifications
- Rated power: 700 watts
- Maximum flow rate: 18,000 l/h
- Maximum delivery head / pressure: 8 m / 0.8 bar
- Pump housing: stainless steel
- Motor housing: stainless steel
- Maximum immersion depth: 7 m
- Connection cable: 10 m / H07RN-F
- Discharge connection: IG, 47.80 mm (1½" AG)
- Maximum medium temperature: 35 °C
- Minimum suction level: 50 mm
- Maximum grain size: 30 mm
Dimensions:
- Width: 23.0 cm
- Depth: 17.7 cm
- Height: 38.0 cm
Weight: 7.4 kg
| Solids size | |
|---|---|
| Solids size | 30 mm |
| Discharge head | |
| Discharge head | 8 m |
| Connection size | |
| Connection size | 1 1/2 |
| Drive | |
| Drive | Manual |
| Drive | 230V motor |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
| Technical features | |
| Technical features | Suitable for dirty water |
| Technical features | Float switch |
| Technical features | Thermal overload protection |
| Output power | |
| Output power | 700 W |
| Material | |
| Material | Stainless steel |
| Flow rate | |
| Flow rate | 18,000 l/h |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 10 |
| Cable | |
| Cable | H07RN-F |
| Max. immersion depth | |
| Max. immersion depth | 7 m |
