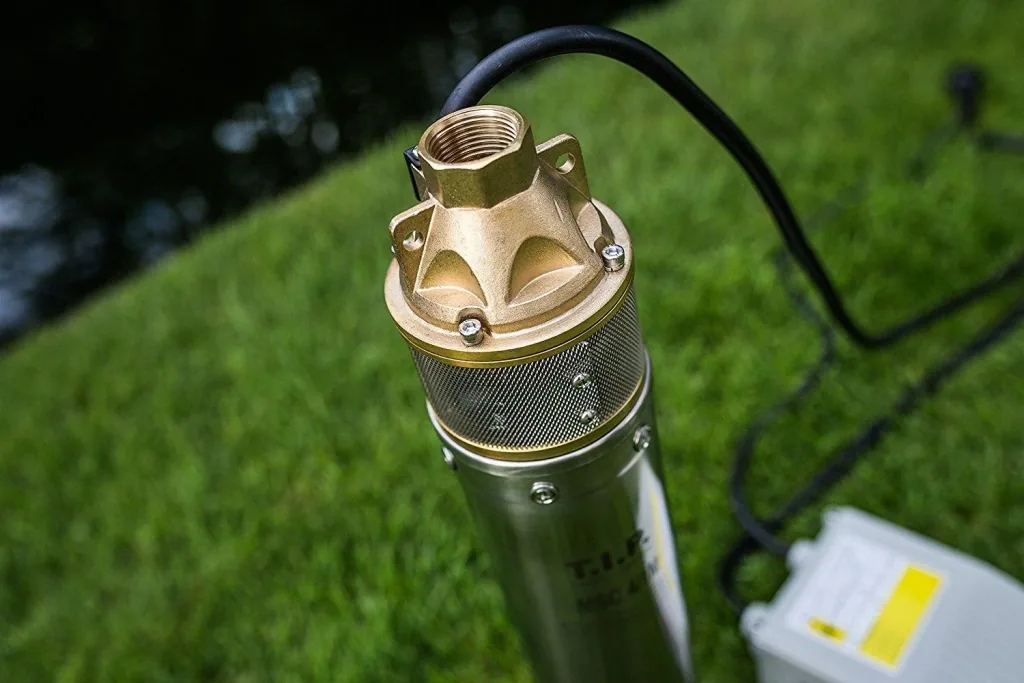

Peripheral deep well pump stainless steel MSC 4/1 M, sand-proof with brass impeller, up to 3,000 l/h flow rate

Price:

236.50 €
🇩🇪  German quality since 1923
 Free shipping on orders over £ 85*
 Secure payment by invoice
  2. Shop
  3. Garden
  4. Pump
  5. Deep Well Pumps

Peripheral deep well pump stainless steel MSC 4/1 M, sand-proof with brass impeller, up to 3,000 l/h flow rate

https://www.westfalia.uk/web/image/product.template/93925/image_1920?unique=914a915
0 review

236.50 € 236.5 EUR 236.50 € Pay 78.83 € now with Klarna

281.44 € 371.50 €

(0.00 € / Units)
* incl. VAT,  incl. Shipping costs

4 people are viewing this right now
11.83 € Cashback with this purchase · 5 %
You might also like
Out of Stock
Invalid email
We'll notify you once the product is back in stock.
Secure Checkout
Guaranteed Secure Checkout
Contact us
Item number WF-912160
Brand T.I.P.
  • Thanks to the high-quality brass impeller, this pump is extremely sand-resistant up to a sand content of 0.15% (150g/m³ - equivalent to 150g per 1000 liters) in the pumped liquid.
  • Rated power: 1,300 W | Maximum flow rate: 3,000 l/h | Maximum discharge head: 56 m
  • The small outer diameter of only 9.8 cm allows use in narrow boreholes with a diameter of just 10 cm.
  • Includes drainage rope, 15 m cable, and control box with overload protection.

    • Professional and very powerful 1-stage deep well pump. Thanks to the high-quality brass impeller and powerful motor, this pump achieves a high discharge head. The hydraulic system of this pump is also extremely sand-resistant up to a sand content of 0.15% in the pumped liquid. The outer diameter is 98 mm and can therefore be used in wells with a diameter of 100 mm or more.

    Technical Data

  • Power P1/P2: 1,300 watts
  • Maximum flow rate: 3,000 l/h
  • Maximum delivery head / pressure: 56 m / 5.6 bar
  • Mains voltage: 220-240 V / 50 Hz
  • Pump housing: high-grade steel
  • Maximum immersion depth: 12 m
  • Connection cable: 15 m, H07RN-F 4 G 0.75
  • Pressure connection: 30.93 mm (1" IG)
  • Maximum medium temperature: 35°C
  • Max. temperature: 35 °C
  • Max. sand content: 0.15%

    • Dimensions

  • Width: 17.5 cm
  • Depth: 21.0 cm
  • Height: 52.0 cm

    • Weight: 13.7 kg

    Drive
    Drive 230V motor
    Maximum water temperature
    Maximum water temperature 35°C
    Weight
    Weight 13.7 kg
    Flow rate
    Flow rate 3,000 l/h
    Voltage
    Voltage 230 V
    Cable length
    Cable length 15 m
    External dimensions
    External dimensions 17.5 x 21 x 52 cm
    Connection size
    Connection size 1
    Maximum immersion depth
    Maximum immersion depth 12 m
    Switching speeds
    Switching speeds 1
    Output power
    Output power 1,300 W
    Material
    Material V2A stainless steel
    Diameter
    Diameter 98 mm
