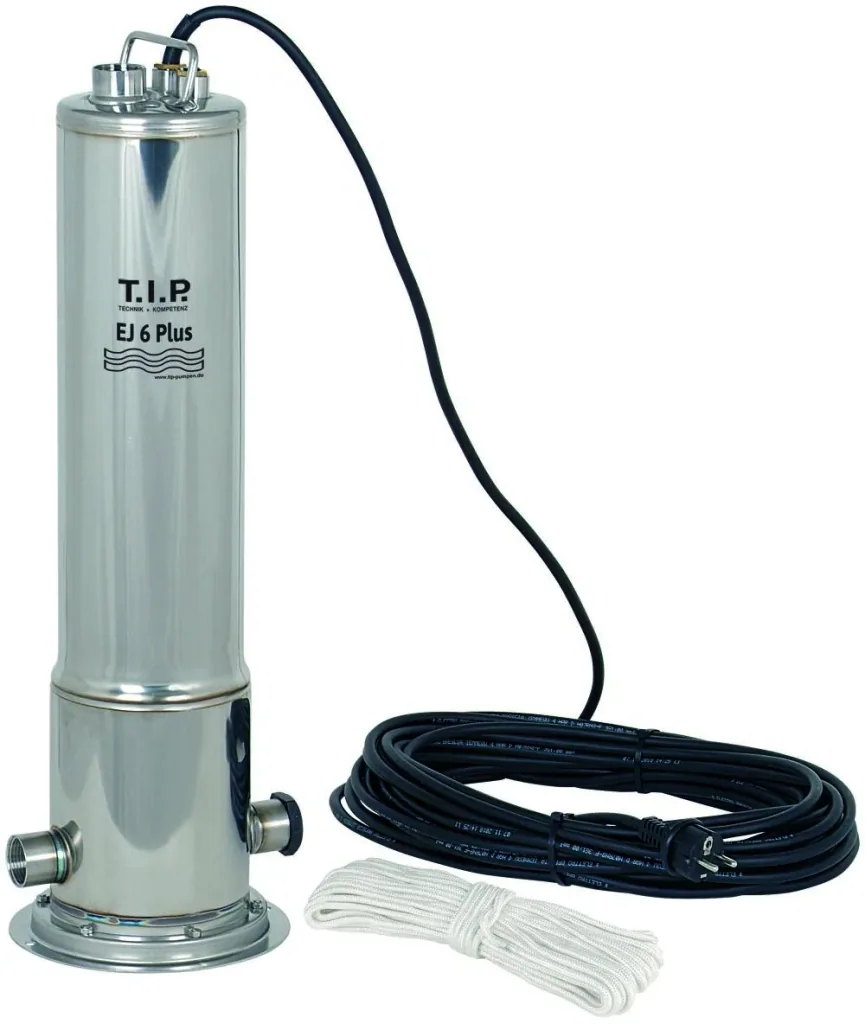

Cistern submersible pressure pump stainless steel EJ 6 Plus, up to 6,300 l/h flow rate
Guaranteed Secure Checkout
| Item number | WF-912164 |
| Brand | T.I.P. |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Ideal for deep wells or cisterns up to 17 m - can also be installed dry
- Rated power: 1,250 W | Maximum flow rate: 6,300 l/h | Maximum head: 57 m
- Fully stainless steel housing with closed Noryl radial impellers, specially designed for use in rainwater collection systems
- Maintenance-free capacitor motor with thermal overload protection, water-cooled, suitable for continuous operation
- To increase the flow rate, several pumps can also be easily connected together
The EJ 6 PLUS is a high-quality, multi-stage cistern pump with very good performance data. The submersible pump has a fully stainless steel housing with closed Noryl radial impellers, specially designed for use in rainwater collection systems. Maintenance-free capacitor motor with thermal overload protection, water-cooled, suitable for continuous operation. To increase performance, multiple pumps can be connected via suction ports with a 30.93 mm (1") female thread, or a floating suction system can be installed.
Technical Specifications
- Motor: 1250 watts
- Maximum flow rate: 6300 l/h
- Maximum discharge head / pressure: 57 m / 5.7 bar
- Pump housing: stainless steel
- Maximum immersion depth: 17 m
- Connection cable: 20 m H07RN-F
- Discharge connection: female thread, 30.93 mm (1")
- Suction connection: female thread, 30.93 mm (1")
- Maximum medium temperature: 35 °C
- Maximum grain size: 2 mm
Scope of delivery
- 1 x cistern submersible pressure pump
- 1 x 21 m drainage rope
| Delivery head | |
|---|---|
| Delivery head | 57 m |
| Solids size | |
| Solids size | 2 mm |
| Connection size | |
| Connection size | 1 |
| Flow rate | |
| Flow rate | 6,300 l/h |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 20 |
| Drive | |
| Drive | 230 V motor |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
| Technical features | |
| Technical features | Thermal overload protection |
| Output power | |
| Output power | 1,250 W |
| Material | |
| Material | Stainless steel |
| Maximum immersion depth | |
| Maximum immersion depth | 17 m |
| Cable | |
| Cable | H07RN-F |
