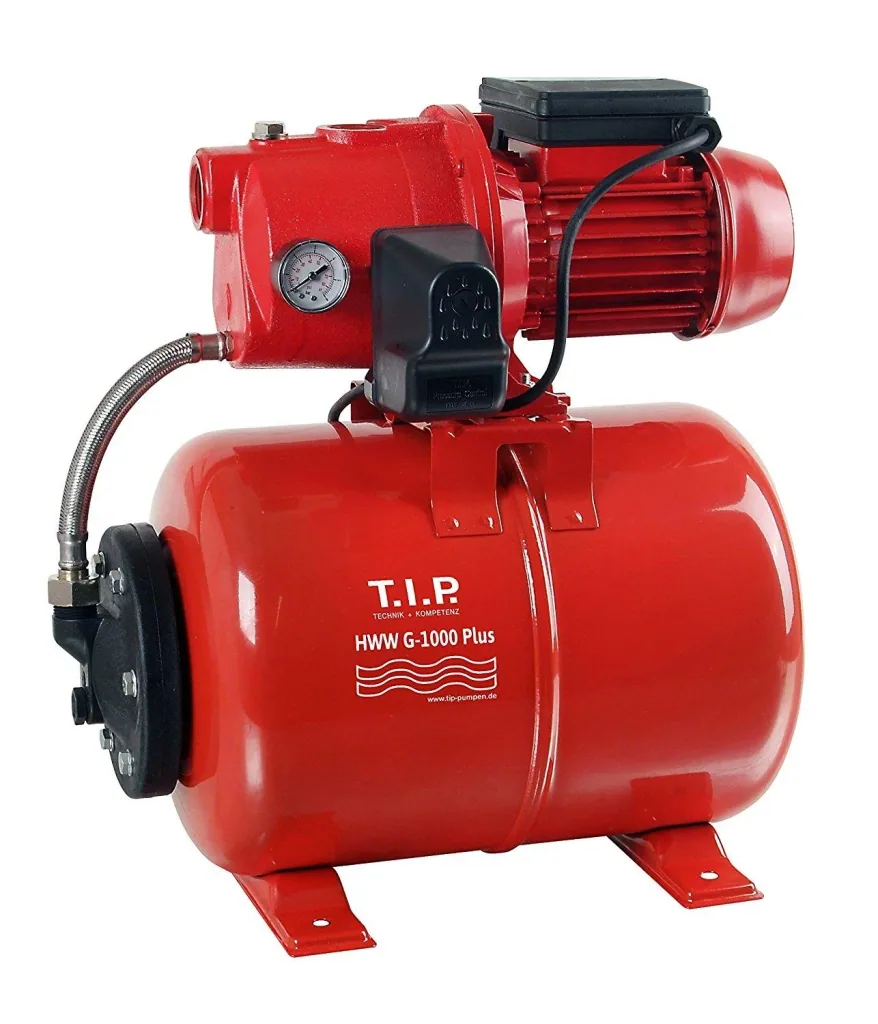

Domestic waterworks HWW G-1000 Plus
Guaranteed Secure Checkout
| Item number | WF-912184 |
| Brand | T.I.P. |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Domestic waterworks 22 liter steel pressure vessel with self-priming, powerful jet pump and high-quality cast iron pump housing
- Maintenance-free capacitor motor with thermal overload protection
- For automatic domestic water supply from wells and cisterns, garden irrigation, and automatic sprinkling
- This powerful domestic waterworks features a self-priming, powerful jet pump with high-quality cast iron pump housing and a 22 liter steel pressure vessel
The hydraulic unit is made of Noryl, and the maintenance-free capacitor motor is equipped with thermal overload protection.
The pressure circuit is preset to 1.6 bar cut-in and 3 bar cut-out pressure ready for installation and can be adjusted to local conditions.
The domestic waterworks is equipped with a high-quality EPDM diaphragm.
Areas of application include: automatic domestic water supply from wells and Cisterns, garden irrigation, and automatic irrigation.
Technical Specifications
- Rated power: 800 watts
- Maximum flow rate: 3,500 l/h
- Maximum discharge head / pressure: 46 m / 4.6 bar
- Maximum suction head: 9 m
- Pump housing: cast iron
- Pressure vessel / volume: steel / 22 l
- Discharge connection: 30.93 mm (1" IG)
- Suction connection: 30.93 mm (1" IG)
- Maximum temperature: 35 °C
- Connection cable: 1.5 m / H07RN-F
Dimensions
- Width: 49.0 cm
- Depth: 31.0 m
- Height: 51.0 cm
Weight: 16.7 kg
| Connection size | |
|---|---|
| Connection size | 1 |
| Switch-on pressure | |
| Switch-on pressure | 1.6 bar |
| External dimensions | |
| External dimensions | 49 x 31 x 51 cm x cm x cm |
| Delivery head | |
| Delivery head | 46 m |
| Weight | |
| Weight | 16.7 kg |
| Output power | |
| Output power | 800 W |
| Suction head | |
| Suction head | 9 m |
| Tank capacity | |
| Tank capacity | 22 l |
| Delivery rate | |
| Delivery rate | 3,500 l/h |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 1.5 m |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
| Switch-off pressure | |
| Switch-off pressure | 3 |
| Cable | |
| Cable | H07RN-F |
