Domestic waterworks HWW 3600 I
Guaranteed Secure Checkout
| Item number | WF-912186 |
| Brand | T.I.P. |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews

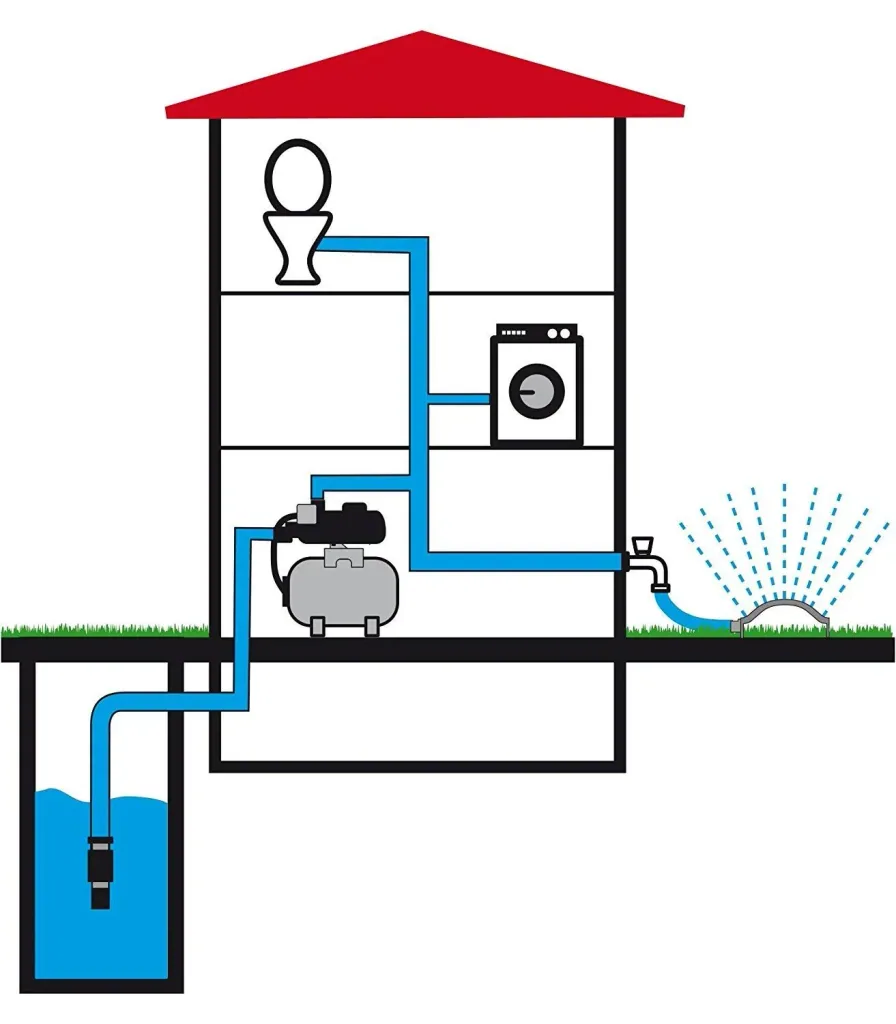

- High-performance basic model with stainless steel pump housing, ideal for automatic domestic water supply with domestic water from wells and cisterns; for garden watering, automatic sprinkling and rainwater harvesting
- 18 l steel pressure vessel in a compact design

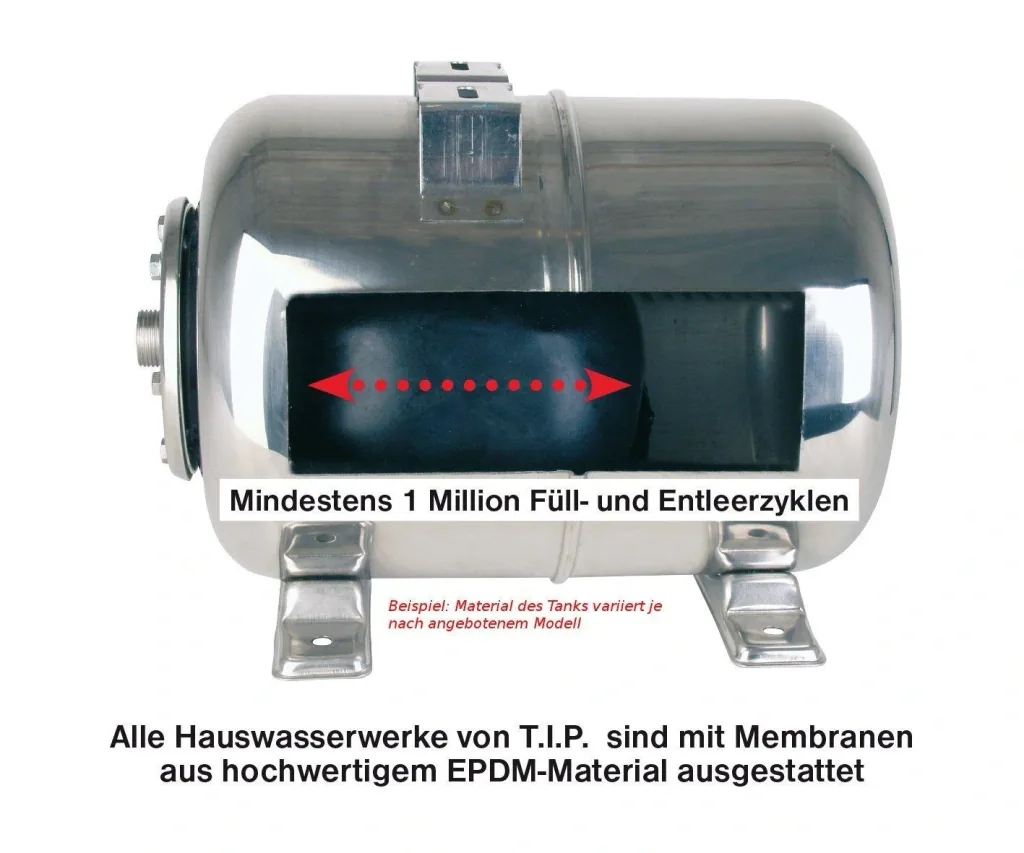

- Pressure vessel with high-quality EDPM diaphragm and maintenance-free capacitor motor with thermal overload protection
The HWW 3600 I is a powerful, compact all-round model that is suitable for a wide range of applications: Ideal for automatic domestic water supply with domestic water from wells and cisterns, for garden watering, automatic sprinkling and rainwater harvesting. Equipped with a stainless steel pump housing and an 18 l pressure vessel with a high-quality EPDM membrane.
Technical Specifications
- Rated power: 650 watts
- Maximum flow rate: 3,600 l/h
- Maximum discharge head/pressure: 40 m/4.0 bar
- Maximum suction head: 9 m
- Pump housing: stainless steel
- Pressure vessel/volume: steel/18 l
- Discharge connection: 30.93 mm (1" IG)
- Suction connection: 30.93 mm (1" IG)
- Maximum temperature: 35 °C
- Connection cable: 1.5 m / H07RN-F
Dimensions
- Width: 48.5 cm
- Depth: 29.0 cm
- Height: 50.0 cm
Weight: 11.8 kg
| Suction height | |
|---|---|
| Suction height | 9 m |
| Tank capacity | |
| Tank capacity | 18 l |
| Flow rate | |
| Flow rate | 3,600 l/h |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 1.5 m |
| External dimensions | |
| External dimensions | 48.5 x 29 x |
| Delivery head | |
| Delivery head | 40 m |
| Connection size | |
| Connection size | 1 |
| Cable | |
| Cable | H07RN-F |
| Output power | |
| Output power | 650 W |
| Material | |
| Material | V2A stainless steel |
| Drive | |
| Drive | 230 V motor |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
| Technical features | |
| Technical features | Thermal protection switch |
| Weight | |
| Weight | 11.8 kg |
