Swimming pool filter set sand filter system SPF 370 F, up to 7,000 l/h
Guaranteed Secure Checkout
| Item number | WF-912203 |
| Brand | T.I.P. |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- 4-way valve for convenient operation and cleaning of the filter
- Winter mode for longer periods of non-use
- Very simple installation and commissioning
- Ideally suited for smaller swimming pools
- TÜV Rheinland certified / GS safety tested
- Including integrated pre-filter

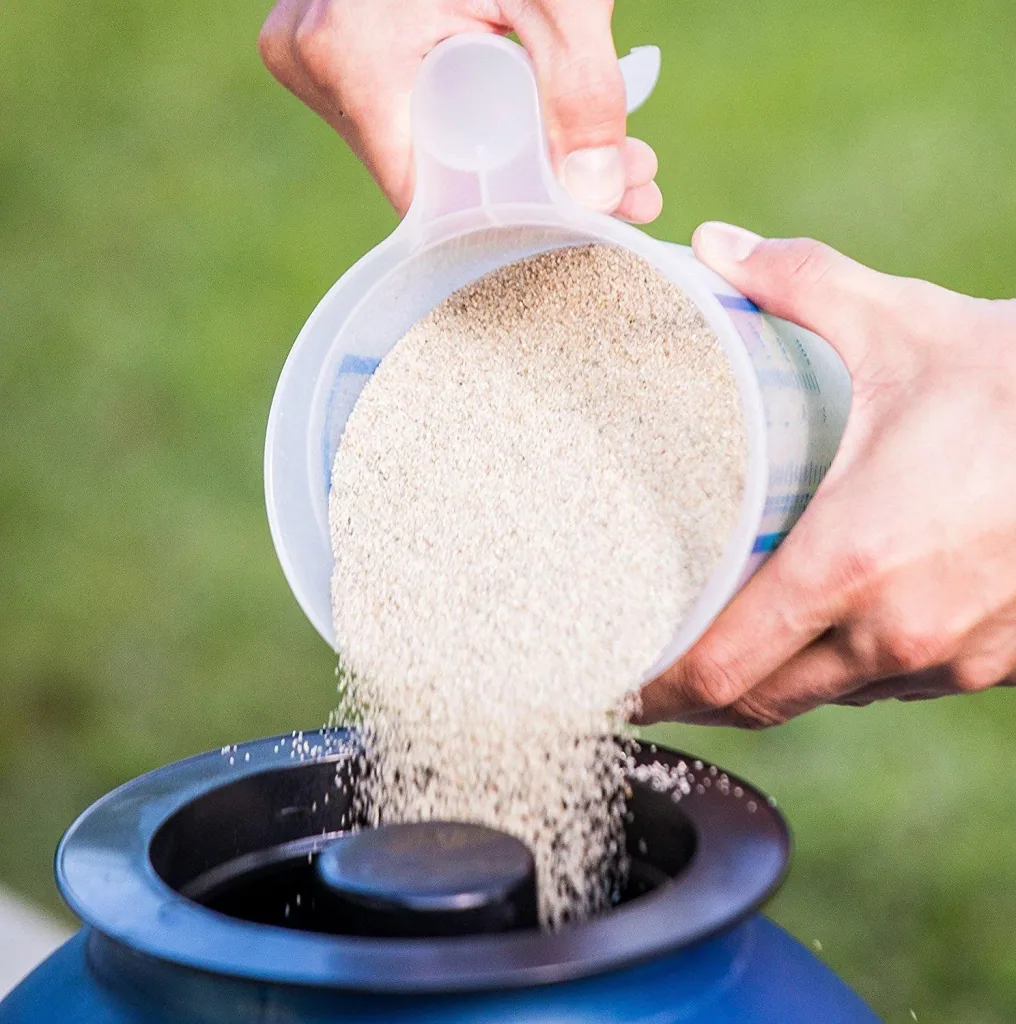

The swimming pool filter set consists of a pump with pre-filter and a sand filter with the following functions: filtering, backwashing (cleaning the filter), rinsing (removing suspended matter in the sand), winter mode (to relieve the pressure on the seals). Operation is via a four-way valve. The filter set is equipped with a pressure gauge. The recommended operating time is 10 to 11 hours per day. The set ensures water clarity in the swimming pool with efficient energy use and is quick and easy to install. The necessary hose connections are included. Cleaning the sand filter is straightforward thanks to the four-way valve. Quartz sand is not included in delivery.
Technical Specifications
- Power P1: 550 watts
- Power P2: 370 watts
- Sand filter flow rate: 7,000 l/h (7.0 m³/h)
- Maximum flow rate: 13,200 l/h (13.2 m³/h)
- Maximum pressure: 1.2 bar
- Maximum medium temperature: 40 °C
- Min. medium temperature: 5 °C
- Quartz sand grain size: 0.5 - 0.8 / 0.7 - 1.2 mm
- Threaded connection: 45.48 mm (1½" female thread)
- Hose connection: 32 mm (1¼"), 38 mm (1½")
- 4-way valve
- Dimensions of the filter set: 50 x 50 x 68 cm
- Sand filling quantity: 25 kg
- Location: approx. 2-3 m from the pool edge
- Recommended pool size: 40 m³
Dimensions
- Width: 64.0 cm
- Depth: 40.0 m
- Height: 51.0 cm
Weight: 14.0 kg
