Electronic pump control BRIO 2000 M, for all submersible pressure, deep well and garden pumps from 1.5 bar
Guaranteed Secure Checkout
| Item number | WF-912225 |
| Brand | T.I.P. |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- For automating all T.I.P. garden, submersible, and deep well pumps
- Protects against damage caused by dry running
- Automated pump ensures high efficiency and reliability

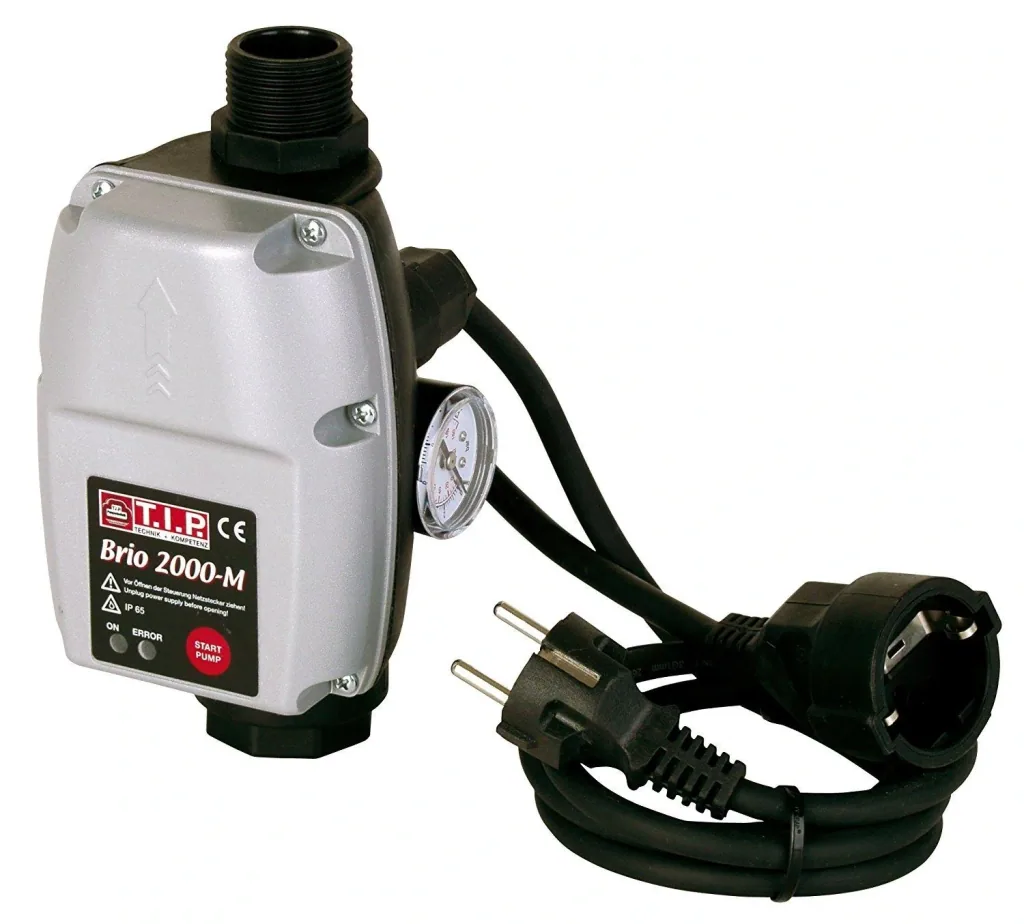

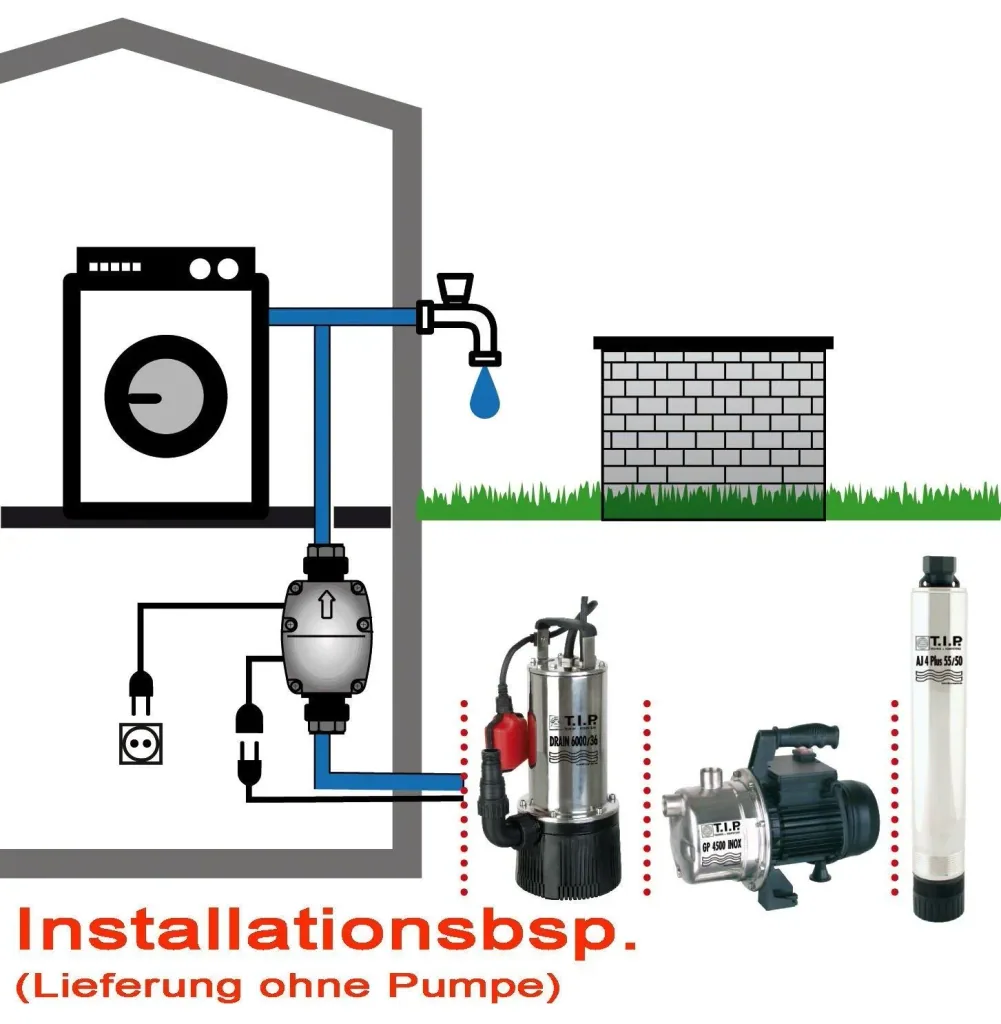

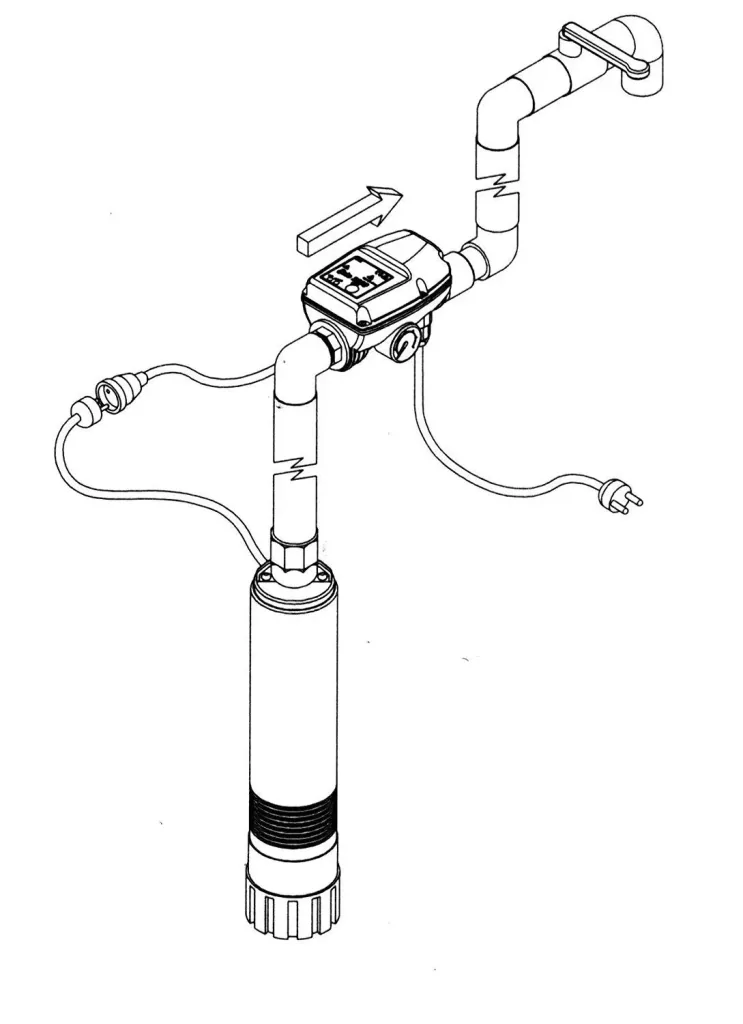

The BRIO 2000-M electronic control system is the easy way to automate any type of pressure pump with more than 1.5 bar through simple plug-and-play installation. The pump switches on automatically when the minimum pressure is reached, and after the consumer is closed, a power-dependent automatic shutdown occurs. Equipped with dry-run protection and a built-in pressure gauge. Suitable for all submersible pressure, deep well, cistern, and garden pumps with more than 1.5 bar pressure.
Technical Data
- Max. operating pressure: 10 bar
- Switch-on pressure: 1.0 to 3.5 bar
- Inlet connection: 30.93 mm internal thread and 33.25 mm (1") external thread (external thread via enclosed double nipple)
- Outlet connection: 33.25 mm (1") external thread
- Power cable: 1.5 m / H05RN-F
- Max. temperature: 55 °C
Dimensions
- Width: 22.5 cm
- Depth: 13.0 m
- Height: 10.5 cm
Weight: 0.82 kg
