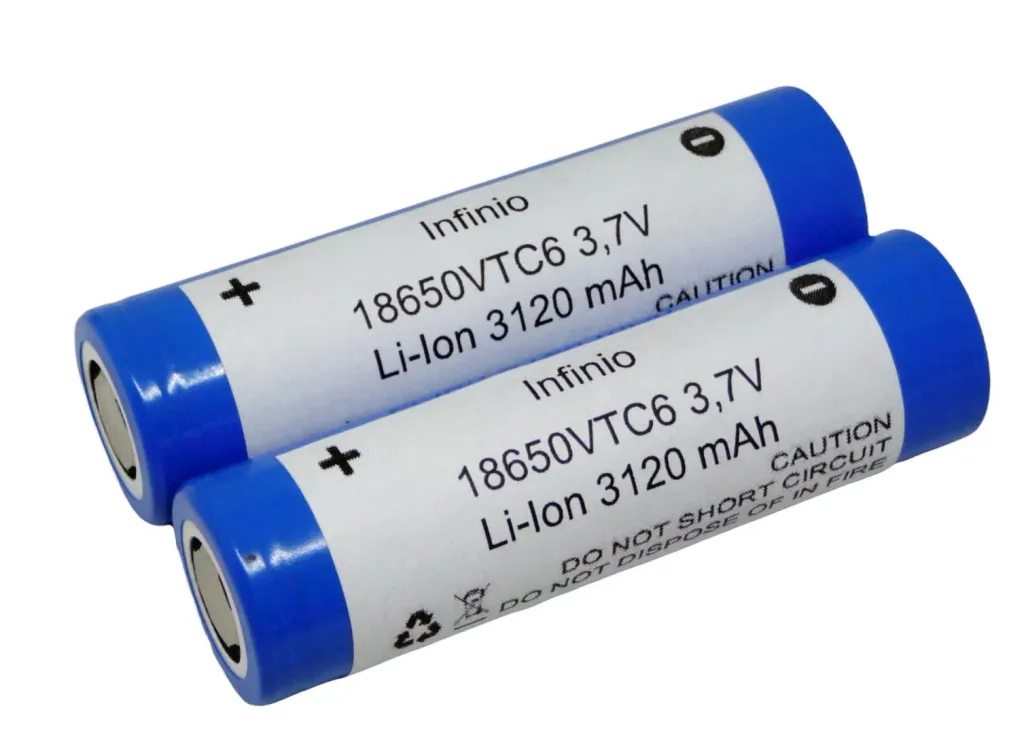

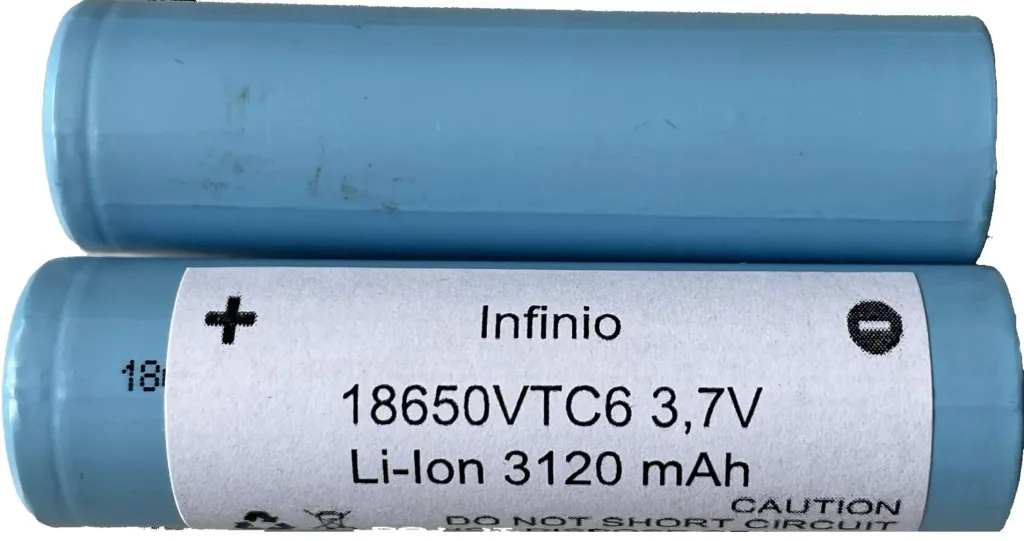

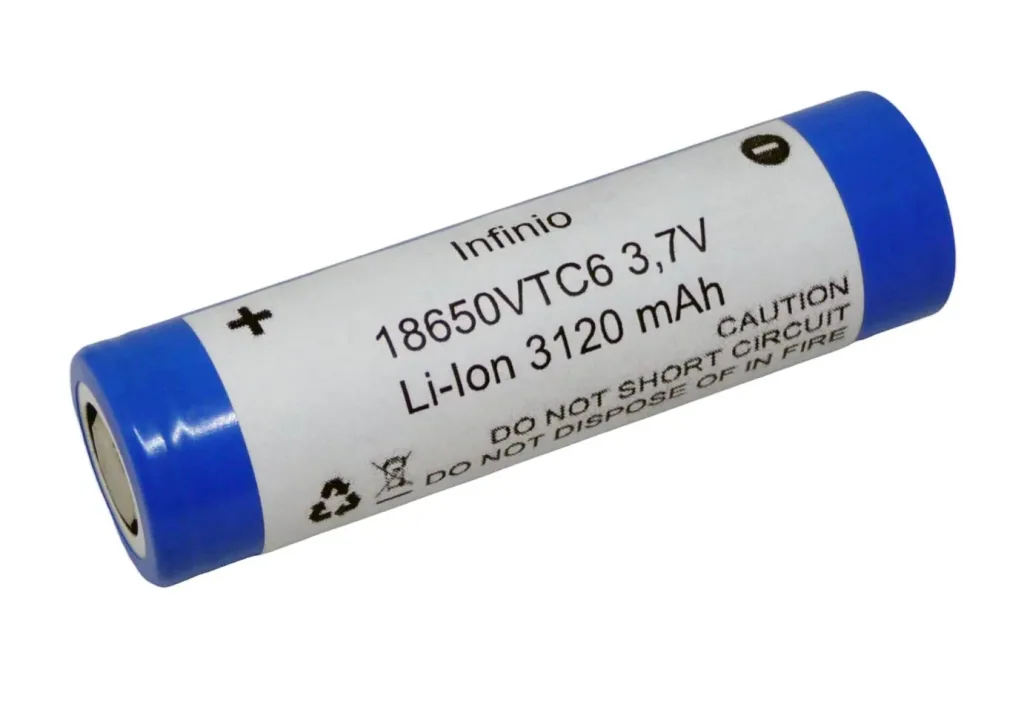

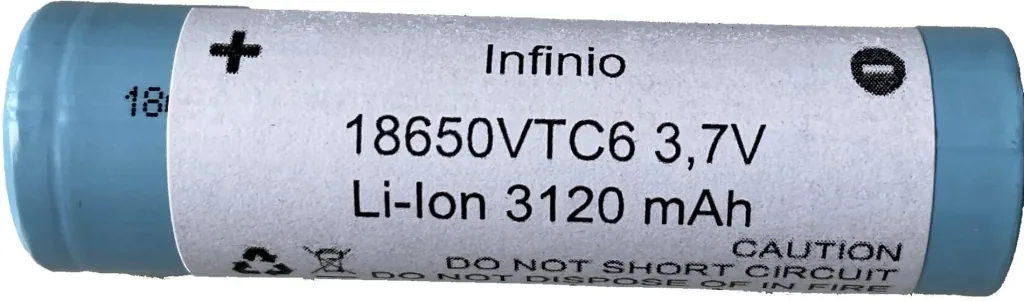

Lithium-ion battery with 3120 mAh and 3.7 Volt - box of 2
Guaranteed Secure Checkout
| Item number | WF-912901 |
| Brand | INFINIO |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
The Infinio 18650 VTC6 battery cell is a powerful and high-current battery cell with 3120mAh and max. 10A in a box of 2.
- Extremely high load capacity
- Higher energy density
- Low self-discharge
- Low weight
- High energy efficiency•
A high-quality high-current cell with a discharge current of up to 30A. Ideal for tools, industry and e-smokers in the sub-ohm range.
Areas of application: E-cigarettes, vape, electric bicycles, e-bikes,…
Technical data:
- Max. capacity: 3120mAh
- Min. Capacity: 3000 mAh
- Nominal voltage: 3.6 - 3.7 Volts
- End-of-charge voltage: 4.2V ± 0.05 Volts
- End-of-discharge voltage: 2.0 Volts
- Possible charging current: 0.25 - 2.5 Amperes
- Max. short-term charging current: 4 Amperes
- Max. continuous current output: 10A (< 60°C cell temperature)
- Max. Short-term current output: 11A (<60°C cell temperature)
- Chemical composition: LiNiMnCoO2
- Protection circuit: no (operation with applications that have protective electronics is required!)
- Positive pole design: flat
- Charging method: CC-CV
- Manufacturer: INFINIO
Unprotected cell, no IC protection, use only in applications approved for unprotected cells!!!
The color of the casing may vary!
Dimensions: 65 x 18.2 mm
Weight: 45 g
| Number of batteries | |
|---|---|
| Number of batteries | 2 |
| Diameter | |
| Diameter | 18.2 mm |
| Voltage | |
| Voltage | 3.7 V |
| Area of use | |
| Area of use | E-bikes |
| Area of use | Home |
| Battery type | |
| Battery type | Lithium-ion battery |
| Height | |
| Height | 65 mm |
| Pack size | |
| Pack size | 2 |
| Weight | |
| Weight | 90 g |
| Battery capacity | |
| Battery capacity | 3,120 mAh |
