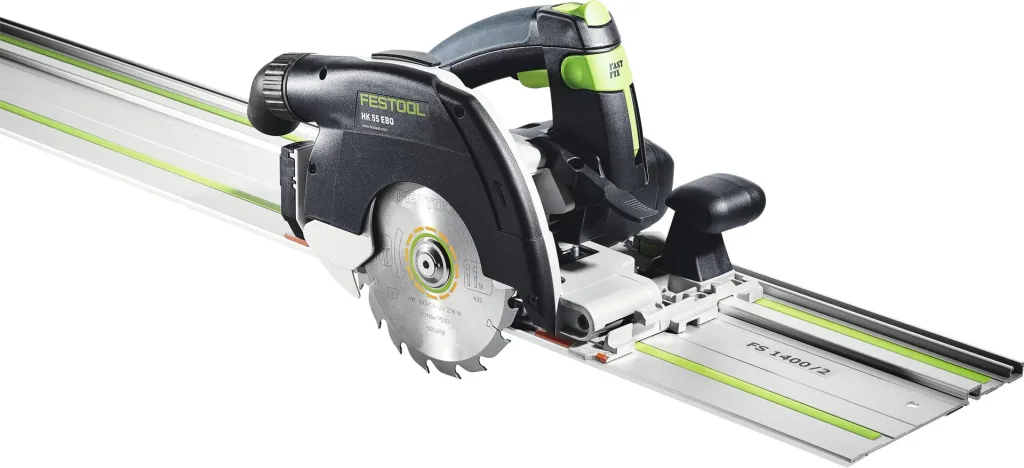

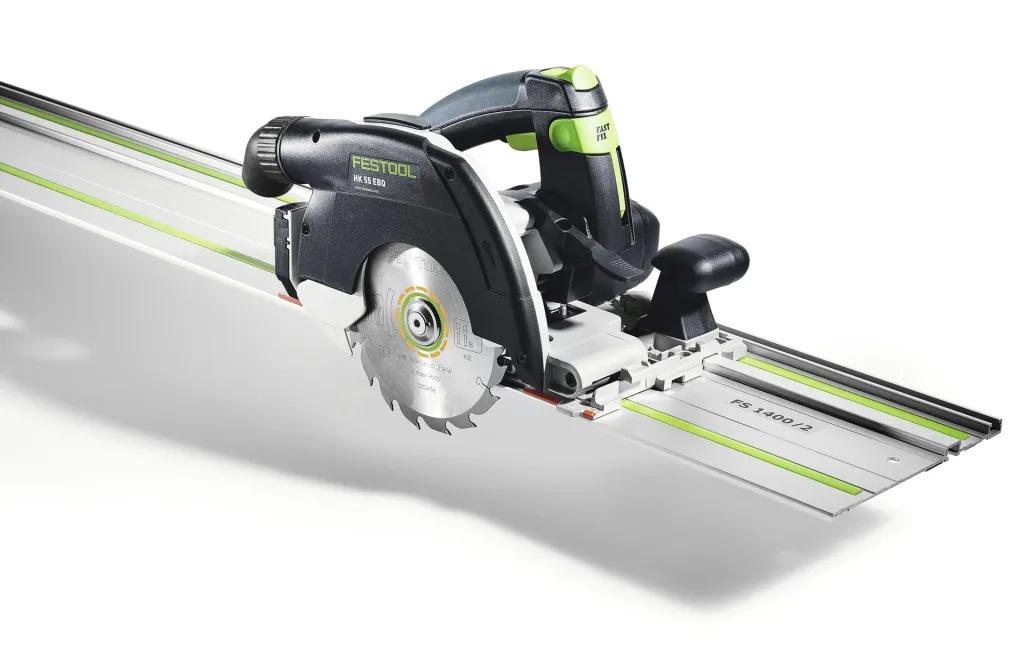

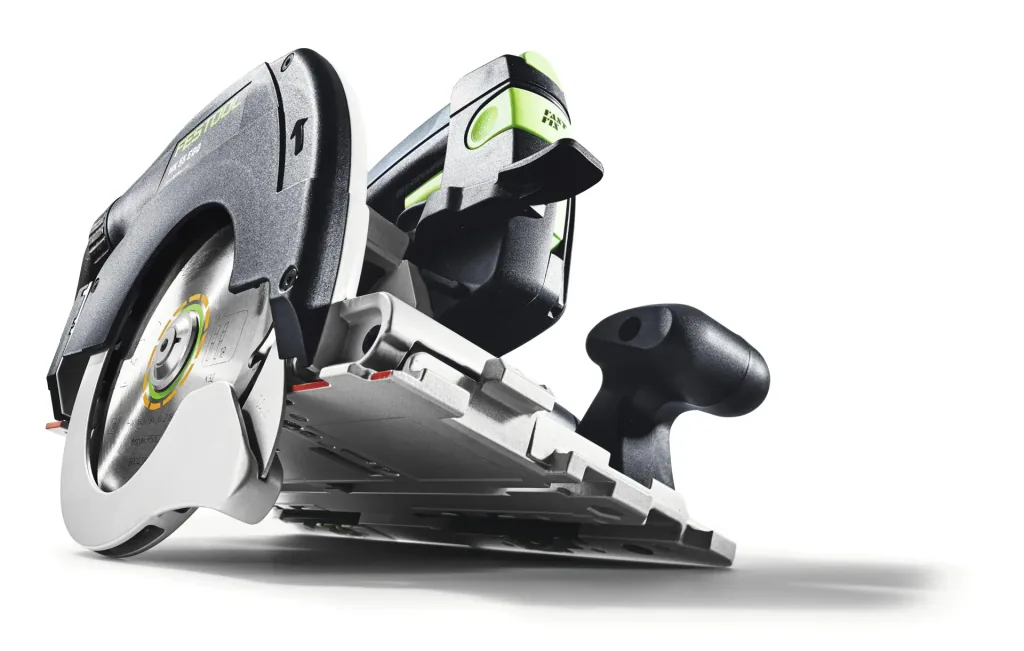

Hand circular saw HK 55 EBQ-Plus-FS

• Powerful 1,200 W motor with power electronics ensures constant power when sawing
• Safe and comfortable handling thanks to cutting depth adjustment with plunge function, pendulum hood remote control and guide wedge
• Angle adjustment with central clamping from 0 to 50 degrees
• Systematic sawing: the HKC in combination with FSK cross-cutting rail and FS guide rail
• Safe and perfectly straight sawing on the guide rail

The HK 55 hand-held circular saw in combination with the FSK cross-cutting rail. The new cross-cutting saw system for greater independence combines precision and efficiency with high user-friendliness, optimized ergonomics and simple handling. Features such as the cutting depth adjustment with plunge function, the pendulum hood remote control, guide wedge and FastFix saw blade change offer the best possible working conditions. And the FSK cross-cutting rail ensures precise, repeatable cuts.

Product highlights

Best results faster

• Constant power when sawing up to 55 mm thanks to the powerful 1,200 watt motor with power electronics

Comfortable and safe

• Safe handling - thanks to cutting depth adjustment with plunge function, pendulum hood remote control, guide wedge and angle adjustment from 0 to 50°

Better in the system

• Repeatable angle cuts and guided cuts in combination with the FSK cross-cutting rails and the FS guide rails

Features

plug it

• Removable, replaceable power cable with safety lock for quick changeover

CLEANTEC

• Integrated bayonet lock as a connecting element between the vacuum cleaner and the tool

MMC Electronic Multi-Material-Control

• Material-appropriate work: "Multi Material Control" power electronics with adjustable, constant speed and temperature monitoring

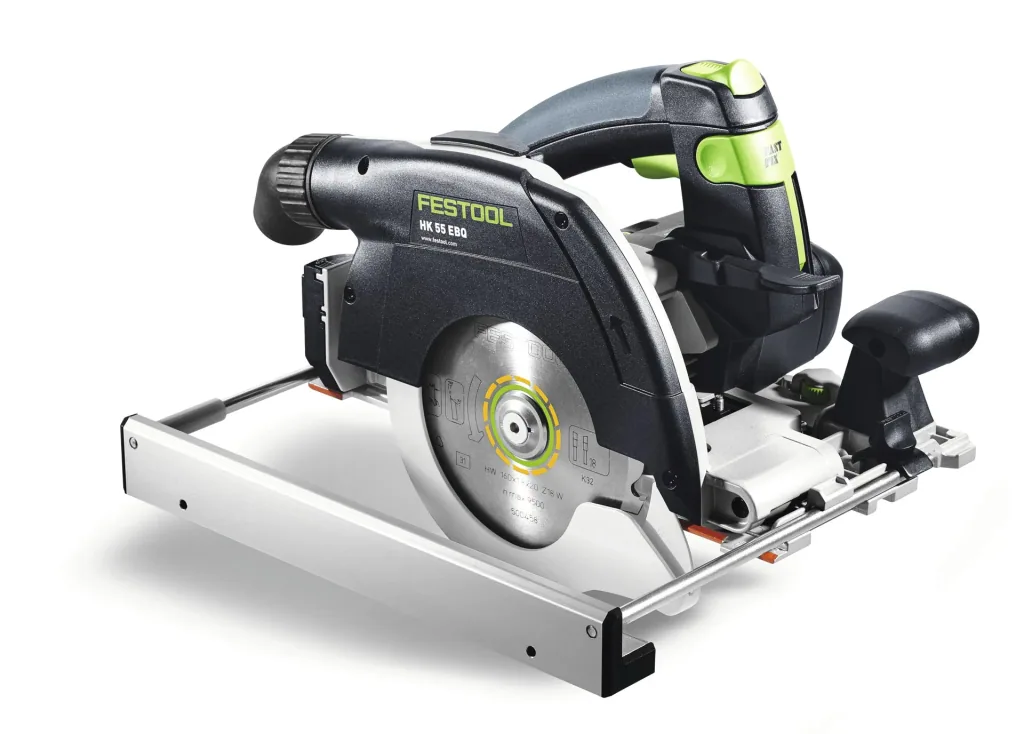

Cross-cutting rails

• Cross-cutting saw system which firmly connects the machine and cross-cutting rail for repeat cuts at the correct angle

Anti-static function

• Mobile extractors and machines with anti-static function to prevent static charging while working

Quick brake

• For safe work when planing, sawing and milling

FastFix

• Facilitates the change of insert tools when milling, sawing, planing, sanding, drilling and screwing

Guide system

• Patented guide system for safe guidance of sawing and milling tools

Technical data

• Cutting depth 45°/50°: 42/38 mm
• No-load speed: 2000 - 5200 min
• Power consumption: 1200 W
• Weight: 4.40 kg
• Saw blade Ø: 160.00 mm
• Angle range: 0 - 50 °
• Cutting depth 0°; 90°: 0 - 55 mm
• Dust extraction connection Ø: 27/36 mm

Noise and vibration values ​​

• Sawing wood: Total mean vibration value ah: 2.50 m/s²
• Sawing wood: Standard series EN 60745: 60745-2-5
• Sawing wood: Uncertainty (noise) K: 3.00 dB
• Sawing wood: Uncertainty (vibration) K: 3.00 m/s²
• Sawing wood: A-weighted sound pressure level Lp: 79.00 dB(A)
• Sawing wood: A-weighted sound power level Lw: 90.00 dB(A)
• Sawing metal: Total mean vibration value ah: 3.00 m/s²
• Sawing metal: Standard series EN 60745: 60745-2-5
• Sawing metal: Uncertainty (noise) K: 3.00 dB
• Sawing metal: Uncertainty (vibration) K: 3.00 m/s²
• Sawing metal: A-weighted sound pressure level Lp: 79.00 dB(A)
• Sawing metal: A-weighted sound power level Lw: 90.00 dB(A)

Main areas of application

• Longitudinal and cross-sectional cutting up to 55 mm material thickness
• Cutting roof battens to length
• Sawing formwork boards/shuttering
• Sawing boards
• Cutting sheet material

Festool SERVICE all-inclusive

Four services so you can concentrate fully on your work.

Scope of delivery

• HW standard saw blade W18
• Guide rail FS 1400/2
• Operating tools
• SYSTAINER SYS 4 T-LOC
