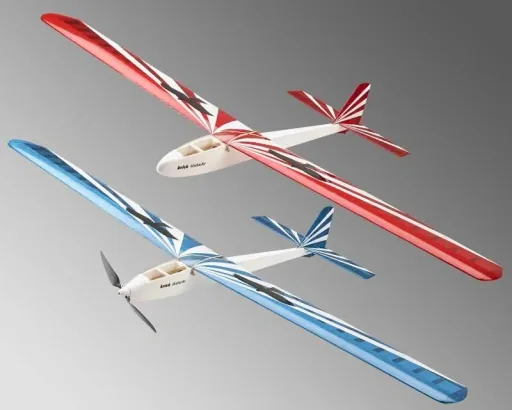

Habicht glider/electric glider kit

Our HABICHT, completely new, designed in CAD and manufactured using CNC laser technology, is the ideal entry-level model for model aircraft construction. Even experienced model builders will enjoy it. The model's construction is deliberately kept very simple, making it easy for even novice model builders to handle. All components are laser-cut with high precision. The assembly instructions, with numerous illustrations, provide a clear guide through the construction process.

The model is controlled via elevator and rudder, and the electric version also has motor control. The wing profile was developed from the profiles of modern high-performance models and gives the HABICHT high glide performance with low sink rate. The model also penetrates strong winds. The V-shape of the wing was reduced to give the model excellent maneuverability while still maintaining high inherent stability.

The fuselage is constructed from a small number of plywood and balsa wood parts. This makes it very robust and forgiving even of rough landings. The canopy is removed via a magnetic closure, allowing convenient access to the flight battery (electric version) and the internal components. The wing is secured with rubber bands. It is a lightweight rib construction that is planked on the surface in the nose area. The tail surfaces are constructed from laser-cut individual parts.

To complete the model, all you need is glue and a few tools (knife, pins, sandpaper, flat-nose pliers, and scissors), as well as the iron-on film for covering it.

The glider's RC equipment includes a receiver battery with approximately 1,000 mAh and a switch, a receiver with 2-4 channels, and two 13 mm wide servos. The electric version is powered by lightweight 26 or 28 mm diameter motors, a suitable BEC controller, and a 3s LiPo battery with approximately 1,300 mAh – a very cost-effective drive combination.

Thanks to the split wing, the model is easy to transport in a backpack, on a bicycle, and in small cars. The glider can be launched on a slope or on level ground using the bungee cord. The electric version is in no way inferior to the glider in terms of gliding characteristics.

Technical Data

Habicht Electric Flight

• Wingspan: 1,680 mm

• Length: 1,050 mm

• Empty weight: 430 g

• Flying weight: approx. 760 g

• Area: 32.34 sqdm

• Wing loading: 23.5 g/sqdm

Habicht Glider

• Wingspan: 1,680 mm

• Length: 1,035 mm

• Empty weight: 460 g

• Flying weight: approx. 650 g

• Area: 32.34 sq dm

• Wing loading: 20.1 g/q dm

Product data

• Construction difficulty level (1=very easy ... 5=expert): 2 easy

• Category / Division: Functional model

• Remote controllable RC model: Yes

• Drive: Electric motor, glider model

• Material: Wood and wooden parts

• RC functions: Rudder, elevator, ailerons, motor
