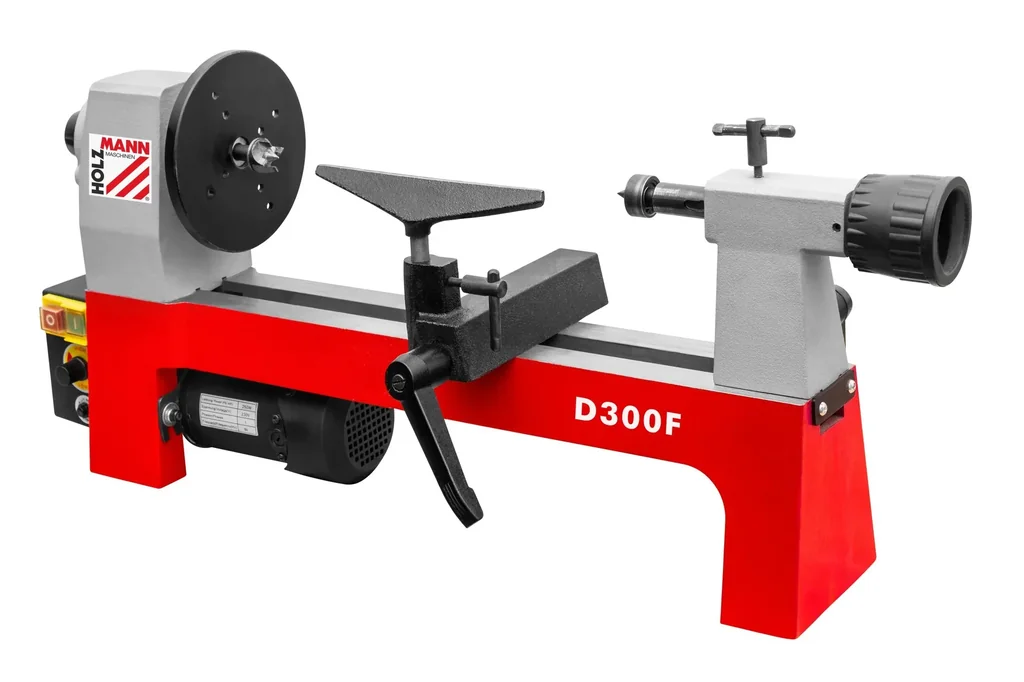

- Spindle mount M33 DIN800
- Bed, tailstock, handrest, and headstock made of solid
- grey cast iron
- MK1 tailstock with quick-lock mechanism
- Large turning diameter above bed enables turning of workpieces with large diameters - ideal for turning plates, for example
- User-friendly thanks to continuously variable speed
- Comfortable working thanks to handrest and quick adjustment
- Spindle/tailstock bore 10 mm
- With overload protection
Technical data
- Voltage 230 V
- Motor power S1 250 W
- Center height 105 mm
- Center width 305 mm
- Quill travel 35 mm
- Spindle speed 750-3200 rpm
- Tailstock taper MK1/ MT1
Scope of delivery
- Hand rest
- Face plate
- Revolving center
- 4-prong driver
- Operating tool
