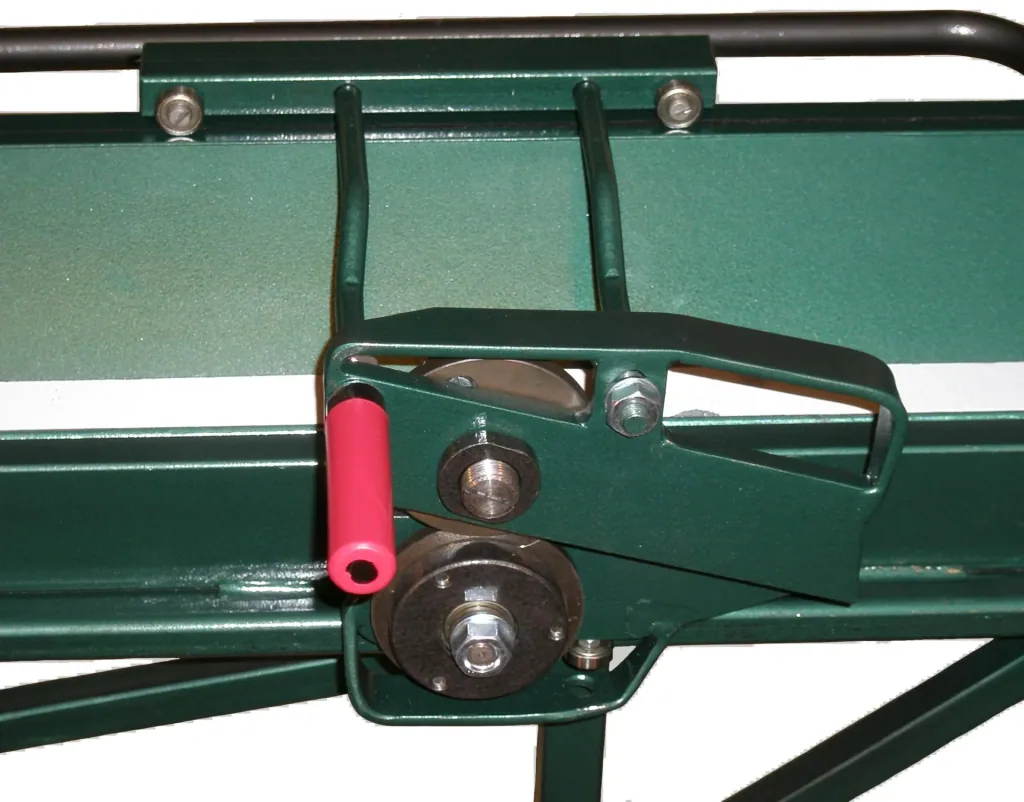

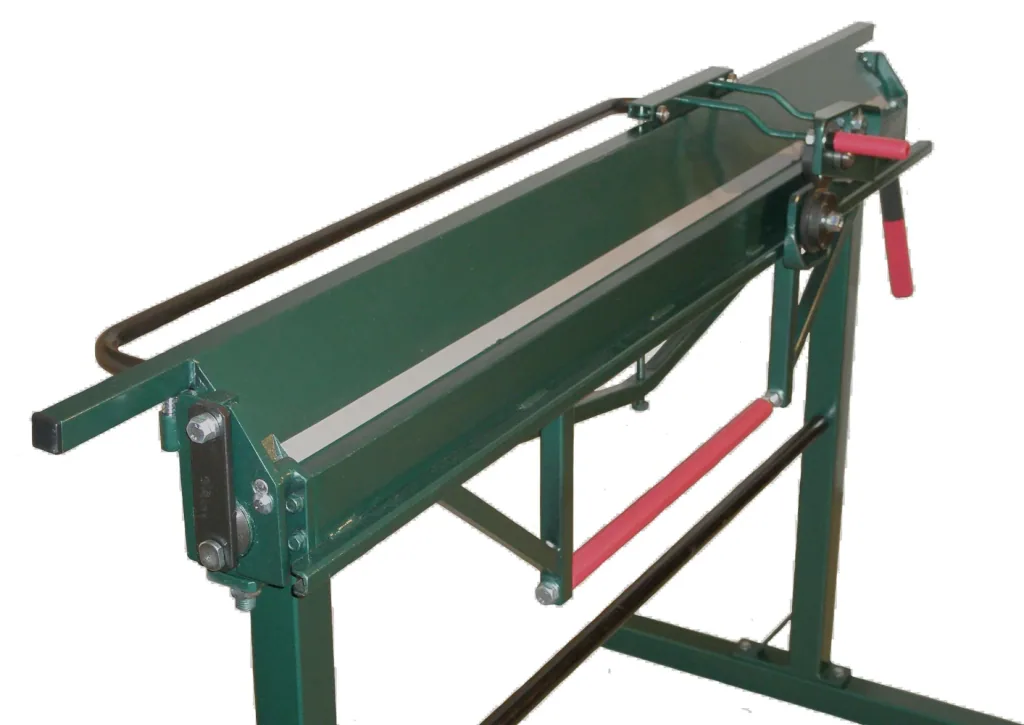

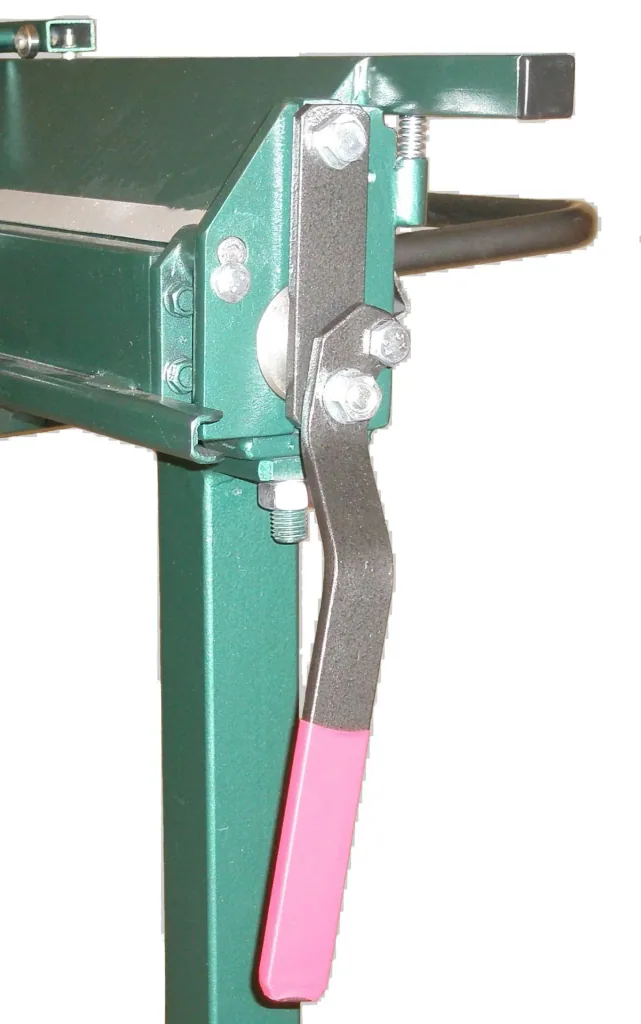

Eccentric bending device AKE1300 with sheet metal shears
Guaranteed Secure Checkout
| Item number | WF-922825 |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- With a max. passage of 1300 mm under the upper beam
- With adjustable sheet support bracket for easier positioning and pushing through of the sheets
- Bending cheek 20 mm
- Closing aid for fold (fold)
Dimensions
- H: 1000 mm W: 1624 mm D: 710 mm
- Working width: 1300 mm
Max. Bending angle: up to 135°
Weight: 79 kg
Folding
- Steel sheet up to: 1.0 mm
- Coloured sheet up to 1.2 mm
- Stainless steel up to: 0.6 mm
Cutting
- Steel sheet up to: 0.7 mm
- Cotton sheet metal up to: 0.9 mm
- Stainless steel up to: 0.6 mm
| Weight | |
|---|---|
| Weight | 79 kg |
| Carrying case | |
| Carrying case | no |
| Maximum bending angle | |
| Maximum bending angle | 135 |
| External dimensions | |
| External dimensions | 1000 x 1660 x 770 |
| Working width | |
| Working width | 1320 mm |
| Drive | |
| Drive | Manual |
