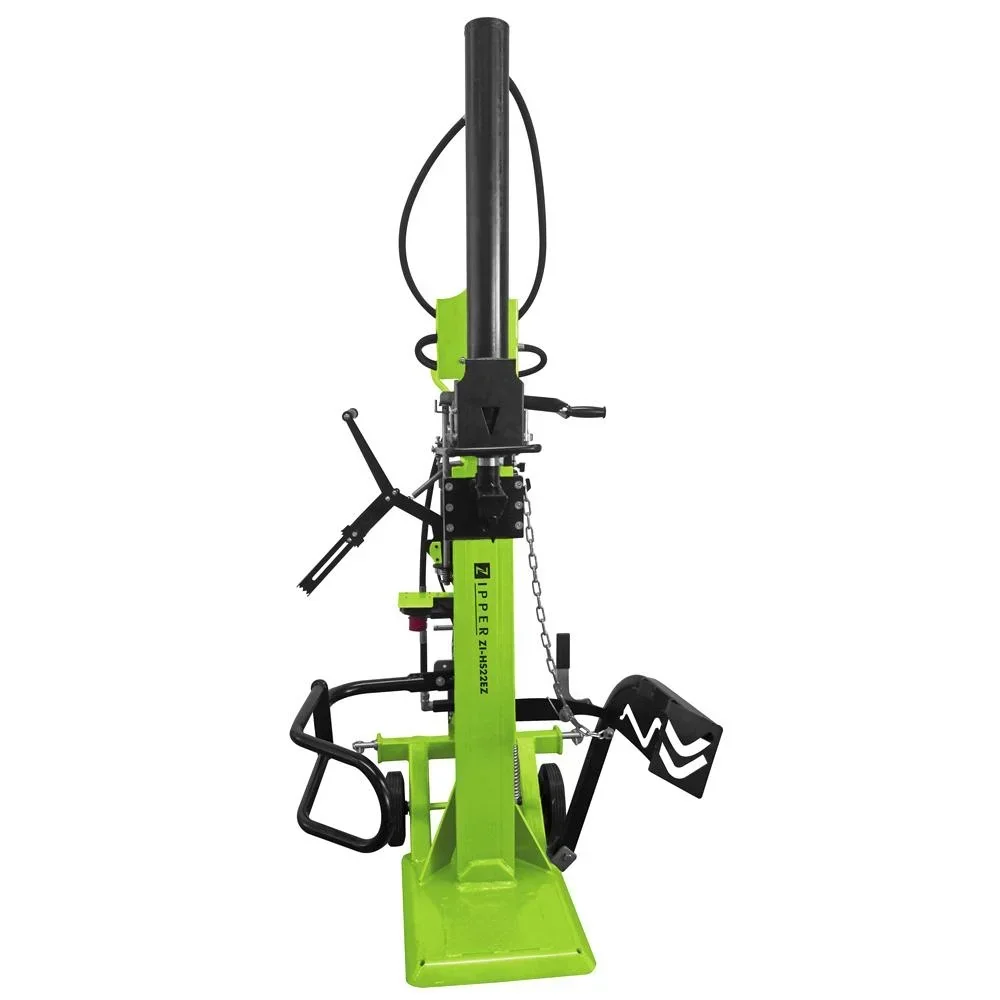

Log splitter 400 V - ZI-HS22EZ
Guaranteed Secure Checkout
| Item number | WF-923340 |
| Brand | Zipper |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Vertical design for splitting short and meter-long logs - 1100 mm
- Forward travel has two speed settings (slow and fast)
- Operation via integrated electric motor or PTO shaft possible
- Combination 3-point suspension
- Sturdy, torsion-resistant steel construction
- Fast operation thanks to continuously adjustable splitting stroke
- State-of-the-art safety operation according to the new 2017 standard
- Base plate for depth insertion
- Convenient transport thanks to the trolley
Technical specifications
- Motor power S6 in W: 5100 (40%)
- Voltage: 400V 50Hz
- Splitting force in t: 22
- Max. splitting stroke in mm: 948
- Splitting material diameter in mm: 350
- Splitting length (without accessories) in mm: 1100
- Hydraulic oil capacity in l: 24
- Hydraulic stroke in MPa: 24.73
- Forward speed in cm/s: 4.3 / 10.5
- Reverse speed in cm/s: 7.5
- Sound pressure level in dB(A): <80
- Handle vibration in m/s2: <2.5
Net weight in kg: 320
Installation dimensions in mm: 1050x1700x2500
| Splitting stroke adjustment | |
|---|---|
| Splitting stroke adjustment | 94.8 cm |
| Drive | |
| Drive | 380V motor |
| Return speed | |
| Return speed | 7.5 cm/s |
| Forward speed | |
| Forward speed | 10.5 cm/s |
| Output power | |
| Output power | 5,100 W |
| Voltage | |
| Voltage | 400 |
| Vertical setup | |
| Vertical setup | true |
| Maximum splitting diameter | |
| Maximum splitting diameter | 35 cm |
| Maximum splitting length | |
| Maximum splitting length | 110 cm |
| Splitting force (tonnes) | |
| Splitting force (tonnes) | 22 t |
