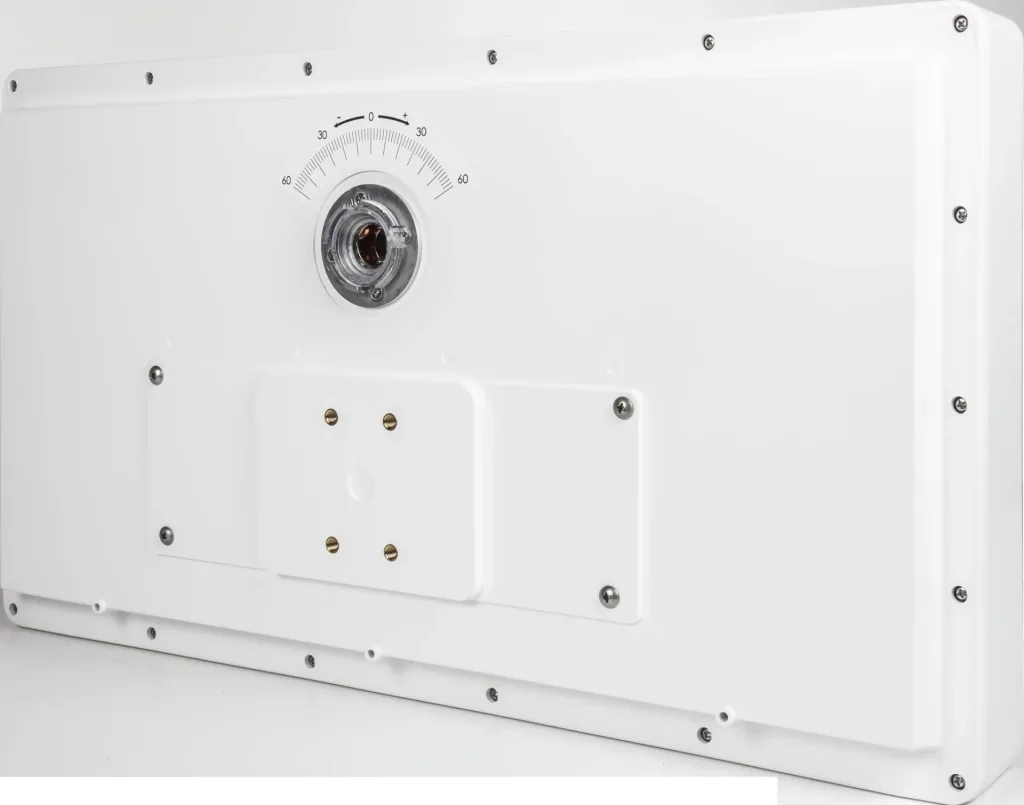

- The flat antenna is the ideal solution for receiving satellite television in a space-saving and unobtrusive manner.
- Its flat, compact, and easy-to-install design makes the antenna (almost) invisible.
- The robust and stable housing protects the high-quality electronics inside from the elements.

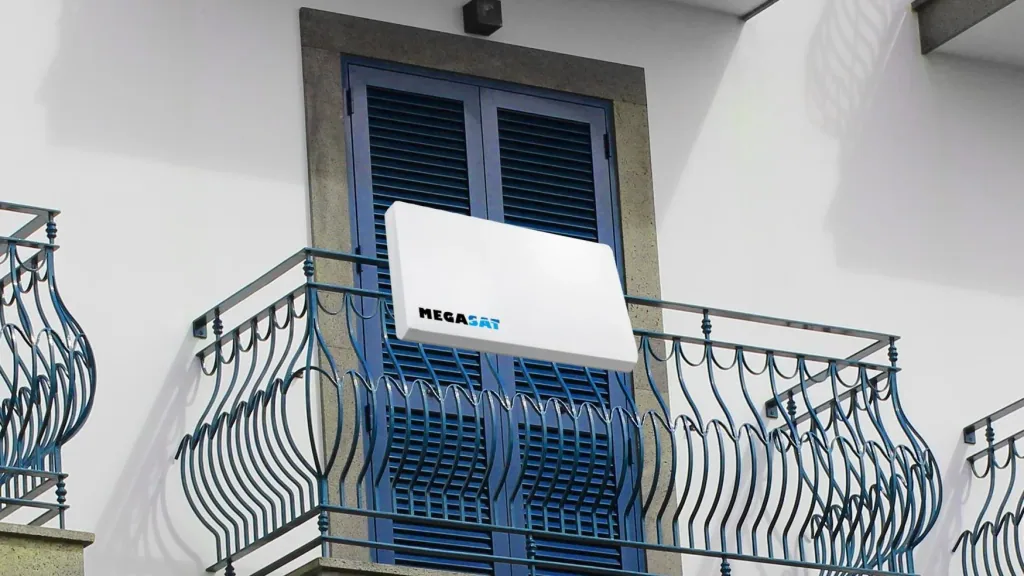

- The reception performance is equivalent to a conventional 60 cm parabolic dish and is perfect for mounting on the balcony or directly on the house wall.
- A universal LNB is already integrated and is connected directly to the receiver with a coaxial cable. If necessary, the LNB can be replaced in just a few simple steps.
Technical data
- Input frequency: 10.7 - 12.75 GHz
- Polarization: Linear (vertical / horizontal)
- Antenna gain: 33 dBi @ 12.75 GHz
- LNB output: 1, 2 or 4
- LNB output frequency: 950 - 1,950 MHz / 1,100 - 2,150 MHz
- L.O. Frequency: 9.75 GHz / 10.6 GHz
- LNB gain: min. 55 dB / max. 66 dB
- Gain flatness: 5 dB
- Power supply: 12 - 14 V DC (V) / 16 - 19 V DC (H)
- Current consumption: max. 160 mA
- Operating temperature: -20° C - +60° C
- Storage temperature: -40° C - +80° C
Dimensions
- Dimensions: 525 x 290 x 68 mm (without LNB)
- Dimensions: 525 x 290 x 145 mm (with LNB)
Weight 4.5 kg
Scope of delivery
- Flat antenna
- LNB
- Wall bracket

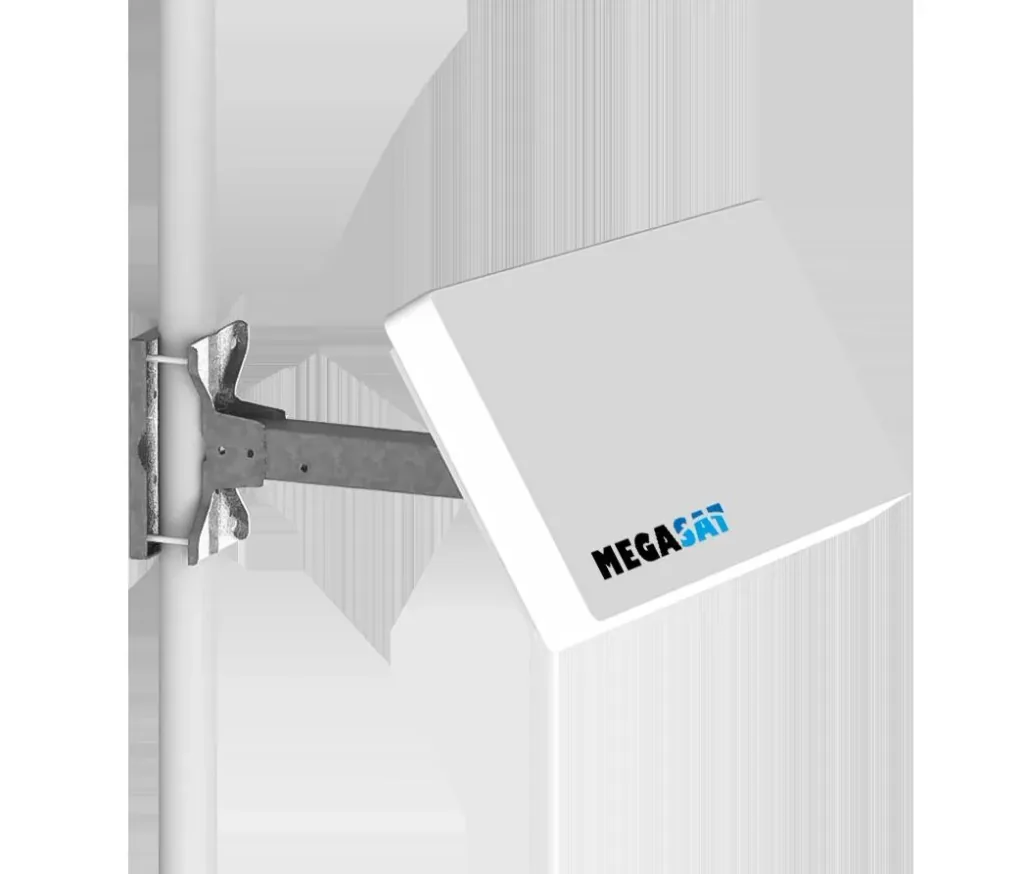

- Mast/balcony bracket

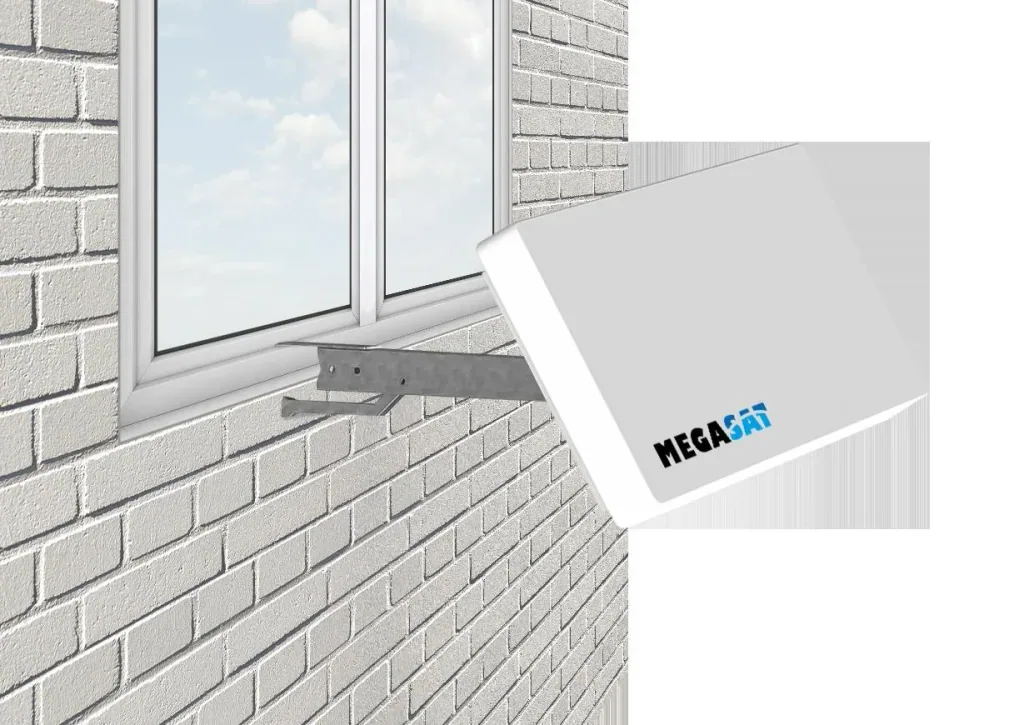

- Window bracket
- Tools
- Screw set
- Compass
- Operating instructions
| Number | |
|---|---|
| Number | 1 |
| Connection type | |
| Connection type | LNB |
