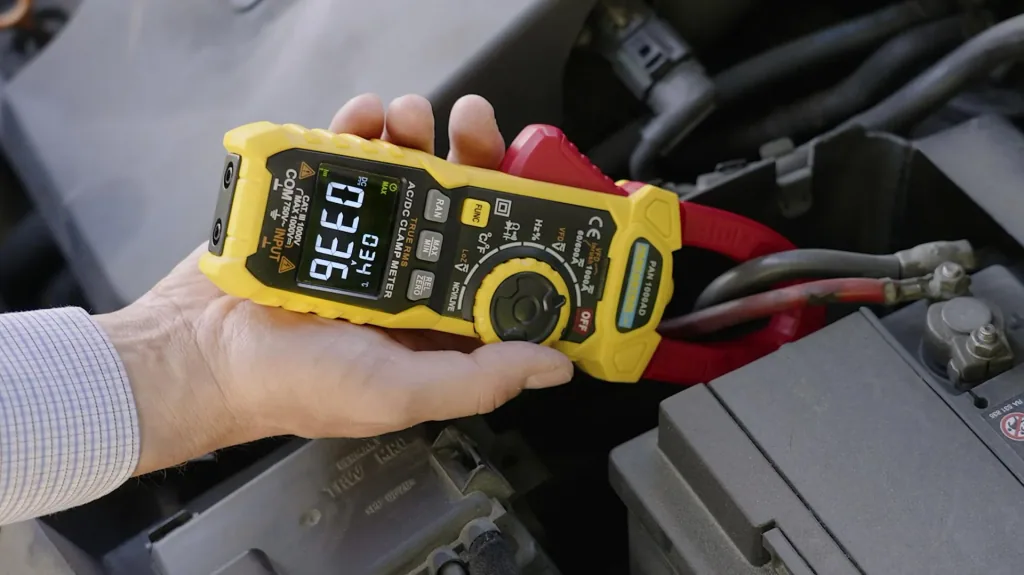

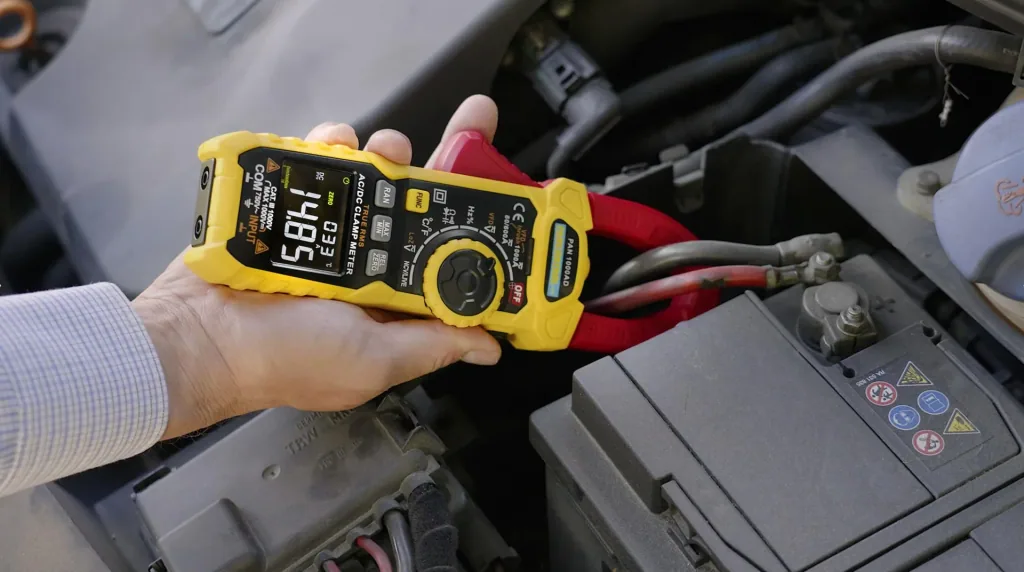

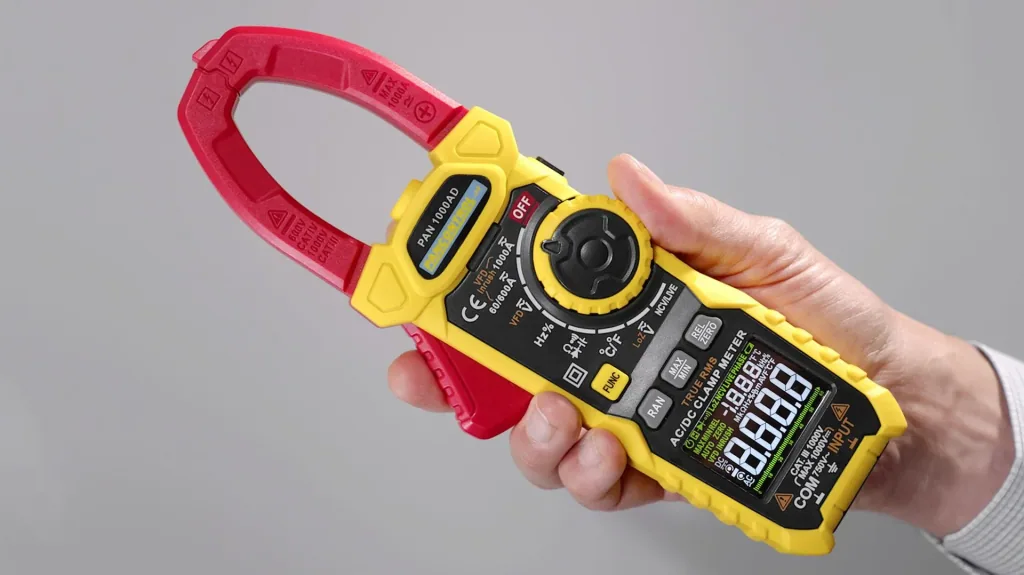

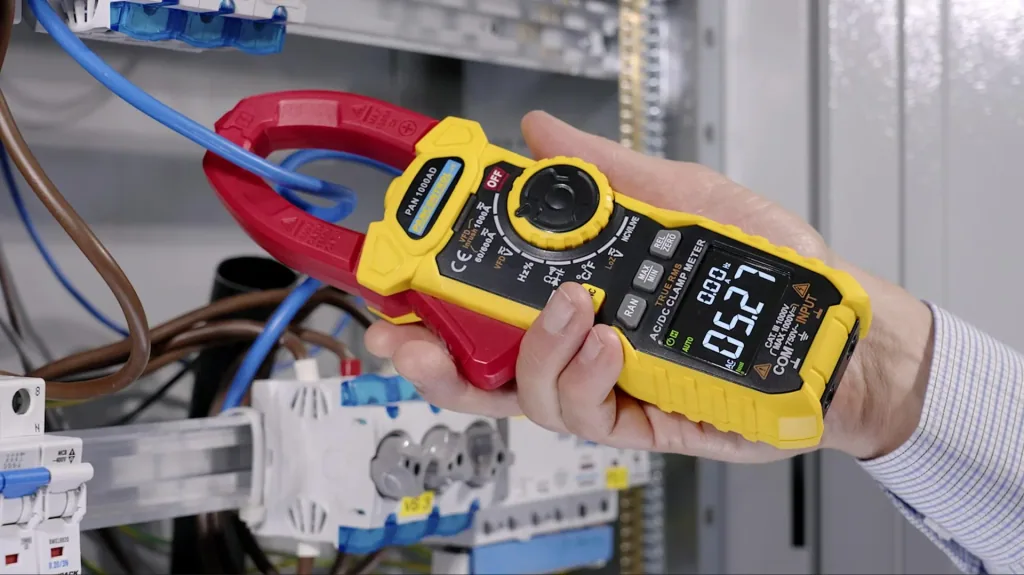

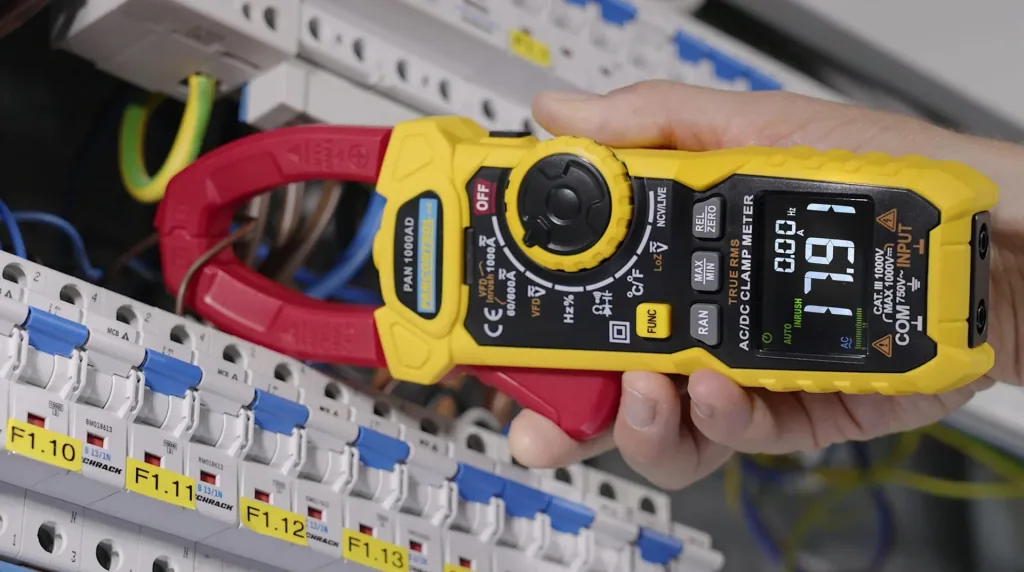

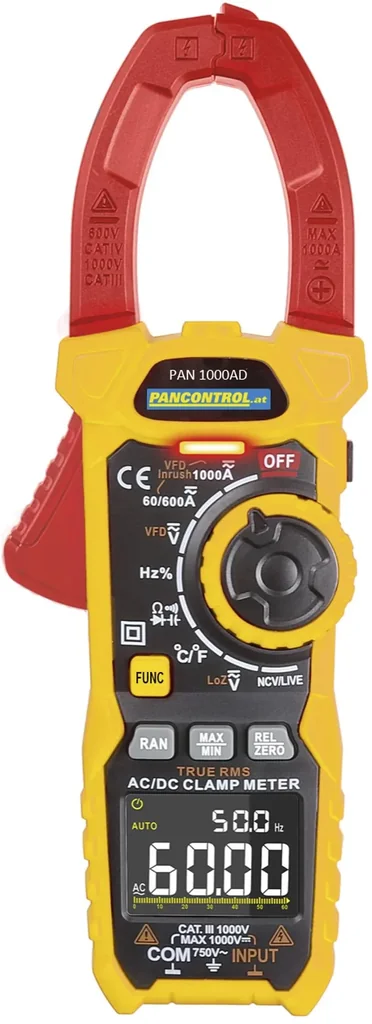

Current clamp 1000A AC/DC True RMS
Guaranteed Secure Checkout
| Item number | WF-926292 |
| Brand | Pancontrol |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- True RMS (true effective value measurement)

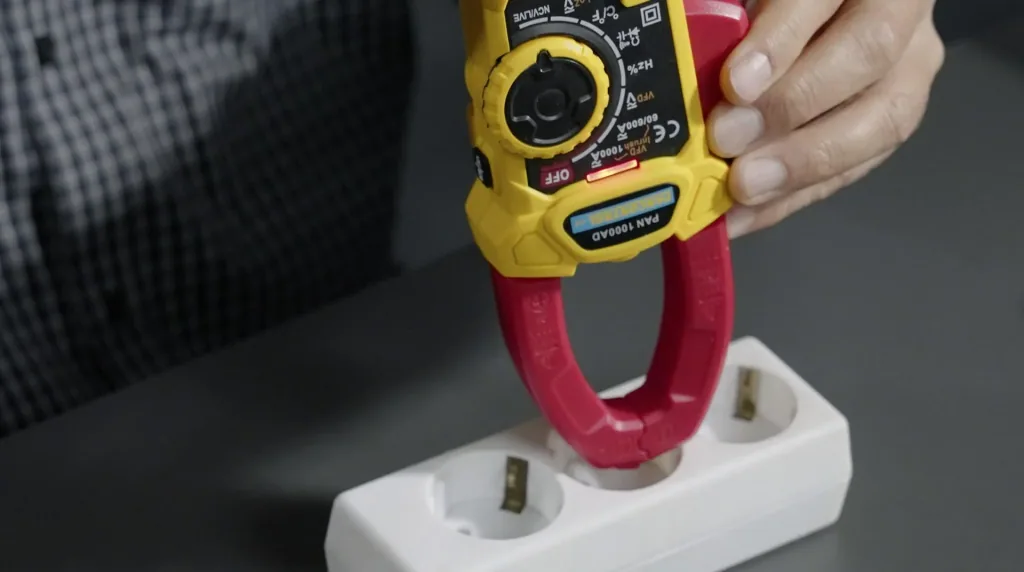

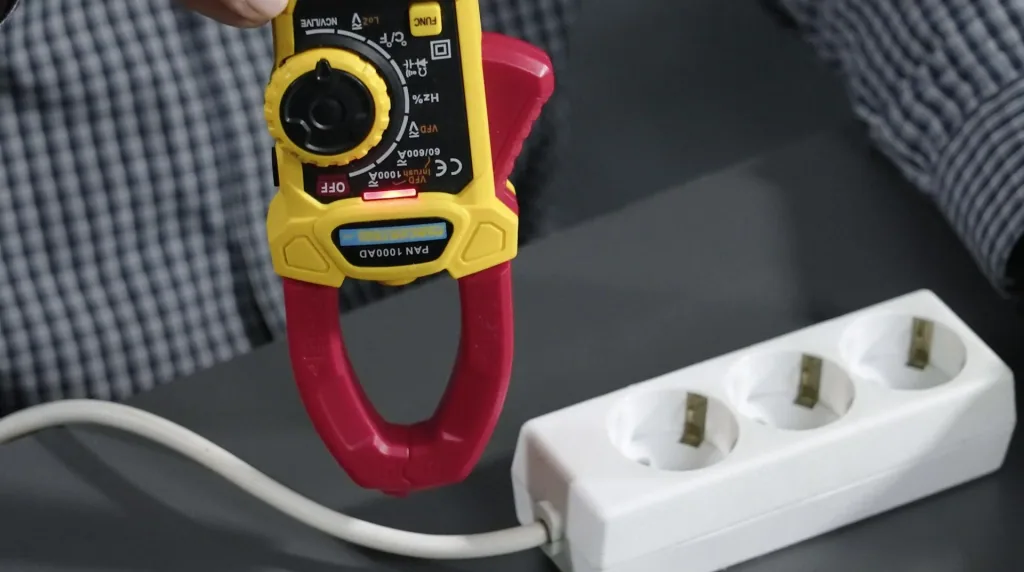

- 2-stage contactless voltage tester (NCV)
- Digital display with analog bargraph
- 13 mm digital display
- Display value up to 5999
- Color display
- Backlight
- Automatic and manual range selection
- 40 mm clamp opening
- 1-pole phase test with audible alarm

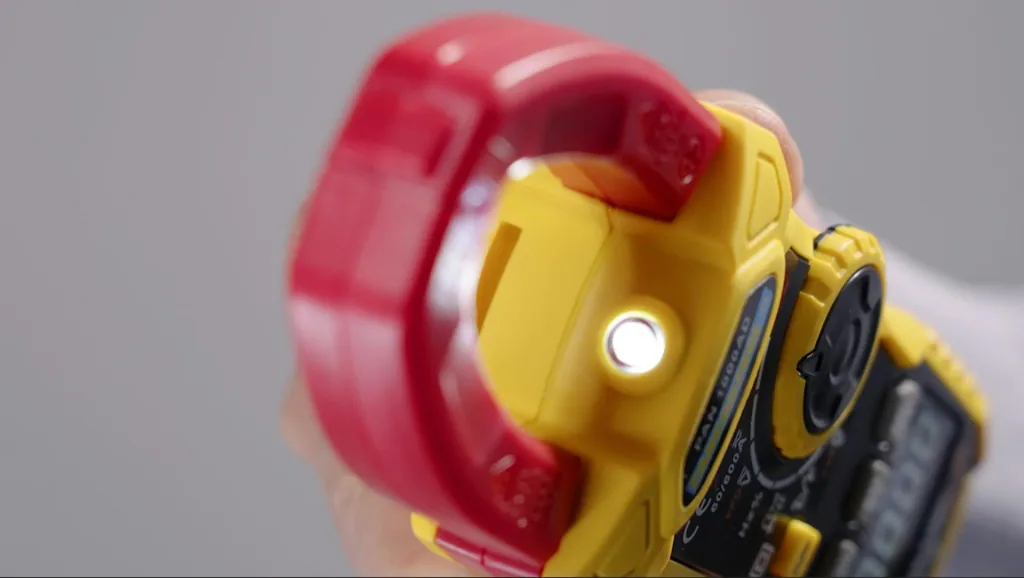

- LED flashlight
- Min/Max memory
- Peak value memory (peak value memory)
- Frequency measurement
- Capacitance measurement
- Relative value measurement
- Duty cycle in % (PBM) 1-99%
- Temperature measurement
- VFC function enables measurement of true values in accordance with the Frequency
- Data Hold
- Diode Test
- Automatic Shutdown
Technical Data:
- DC Voltage (V =): 0.1 mV - 1000 V
- AC Voltage (V ~): 0.1 mV - 750 V
- DC Current (A =): 0.01 A - 1000 A
- AC Current (A ~): 0.01 A - 1000 A
- Resistance (Ω): 0.1 Ω - 60 MΩ
- Frequency (Hz): 0.001 Hz - 10 MHz
- Capacitance (F): 0.001 nF - 10 mF
- Temperature (°C): (Sensor Type K) -20 °C - 1000 °C
- Ambient temperature: -20 °C - 100 °C
- Acoustic continuity tester (<30 Ω)
- Accuracy (%): 0.5% - 5%
Dimensions: 240 x 81 x 46 mm
Weight (gross / net): 660 / 339 g
Required battery(ies): 3 x 1.5V AAA
Measurement category (CAT): CAT III 1000 V / CAT IV 600 V
Scope of delivery:
- Instruction manual
- Test cable
- Bag
- Type-K temperature sensor
| External dimensions | |
|---|---|
| External dimensions | 240 x 81 x 46 mm |
| Battery type | |
| Battery type | Primary alkaline manganese (AlMn) cells up to 50 g |
| Number of batteries | |
| Number of batteries | 3 |
| Weight | |
| Weight | 339 g |
