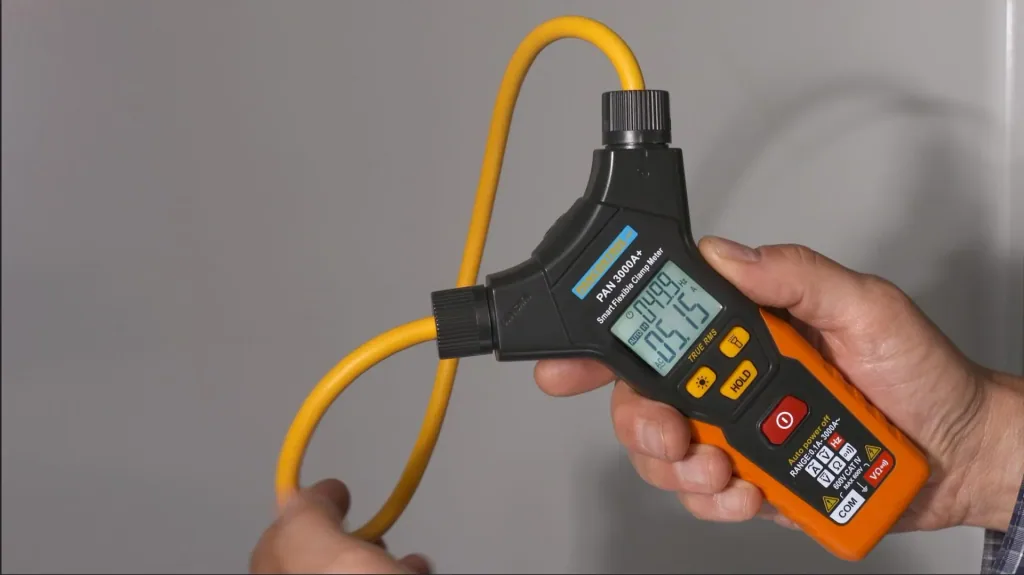

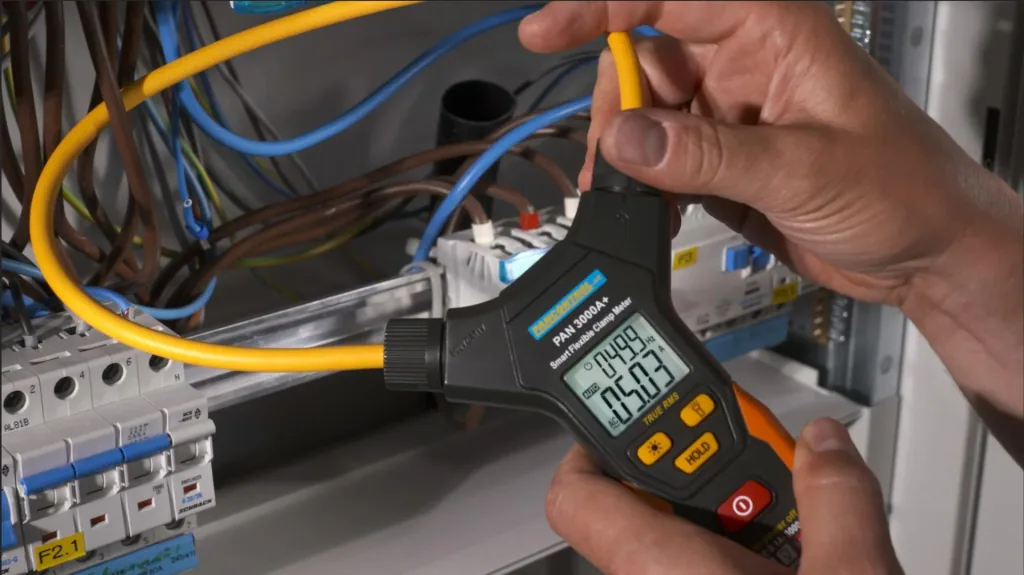

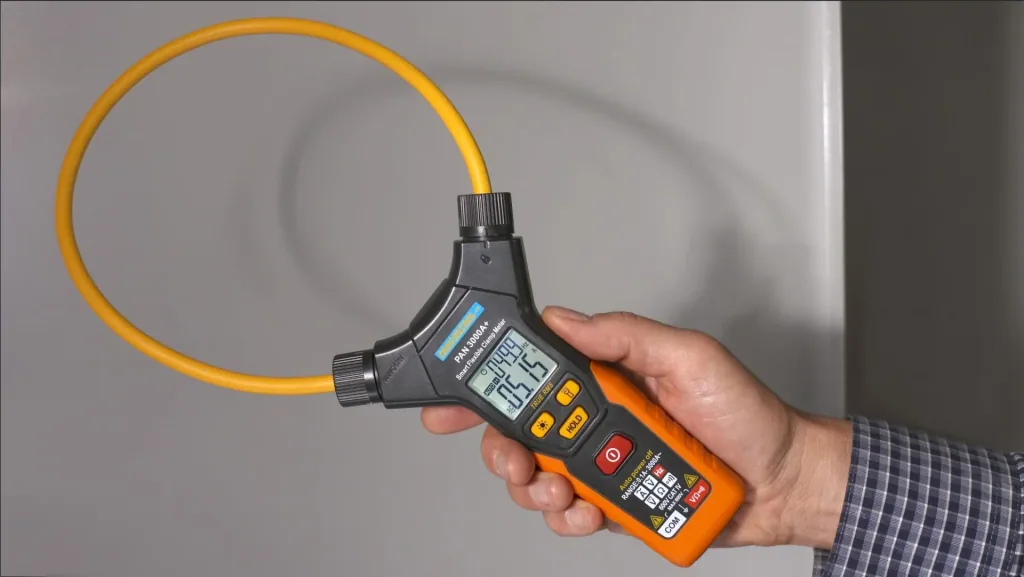

Flexible current clamp 3000A True RMS
Guaranteed Secure Checkout
| Item number | WF-926298 |
| Brand | Pancontrol |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Clamp opening 160 mm
- True RMS (true effective value measurement)
- Digital display 21 mm
- Backlight
- Display value up to 5999
- LED flashlight
- Data hold
- Automatic range selection
- Automatic shutdown
Technical specifications:
- DC voltage (V =): 1 mV - 600 V
- AC voltage (V ~): 1 mV - 600 V
- AC current (A ~): 10 mA - 3000 A
- Resistance (Ω): 1 Ω - 6 MΩ
- Frequency (Hz): 0.1 Hz - 10 kHz
- Acoustic continuity tester (<50 Ω)
- Accuracy (%): 1% - 3%
Dimensions: 120 x 350 x 25 mm
Weight (gross / net) 510 / 177 g
Required battery(ies): 3 x 1.5 V AAA
Measurement category (CAT) CAT IV 600 V
Scope of delivery:
- Instruction manual
- Test cable
- Bag
| Weight | |
|---|---|
| Weight | 177 g |
| External dimensions | |
| External dimensions | 120 x 350 x 25 mm x mm x mm |
| Number of batteries | |
| Number of batteries | 3 |
| Battery type | |
| Battery type | Primary alkaline manganese (AlMn) cells up to 50 g |
