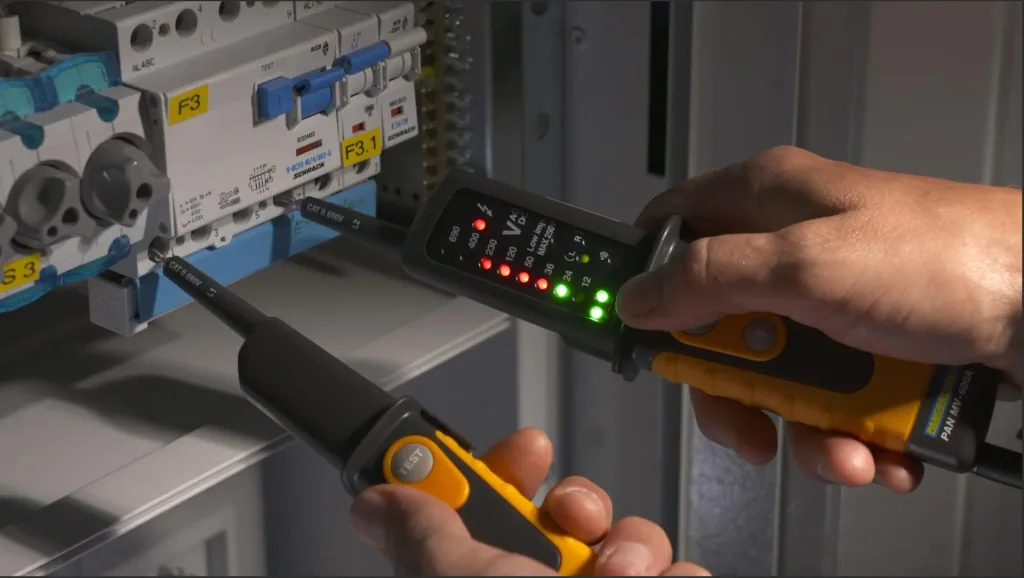

Voltage & continuity tester 690V AC/DC with LED and rotating field display
Guaranteed Secure Checkout
| Item number | WF-926300 |
| Brand | Pancontrol |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
Voltage & Continuity tester with LED display 12 - 690V AC/DC + rotating field display
- 2-pole voltage tester AC and DC
- With test button for 30 mA residual current circuit breaker
- Switchable load to suppress stray voltages
- Low voltages up to 24 V: green, dangerous voltages from 50 V: red
- Polarity display for DC voltage
- 1-pole phase test with acoustic alarm
- 2-pole rotating field display
- LED flashlight
- Automatic shutdown
- Splash-proof and dust-proof IP 64
Technical data:
- DC voltage (V =): 12 - 24 - 36 - 50 V - 120 - 230 - 400 - 690 V
- AC voltage (V ~): 12 - 24 - 36 - 50 V - 120 - 230 - 400 - 690 V
- Frequency range (Hz): 50 - 60 Hz
- Acoustic continuity tester •))): < 40 Ω
Dimensions 240 x 78 x 40 mm
Weight (gross / net) 408 / 254 g
Required battery(ies): 2 x 1.5 V AAA
Measurement category (CAT) CAT III 690 V
Scope of delivery:
- Operating instructions
- Screw-on contact sleeves for sockets
| Number of batteries | |
|---|---|
| Number of batteries | 2 |
| Battery type | |
| Battery type | Primary cells alkaline manganese (AlMn) up to 50g |
