Voltage/continuity tester 1000V
Guaranteed Secure Checkout
| Item number | WF-926323 |
| Brand | Pancontrol |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews

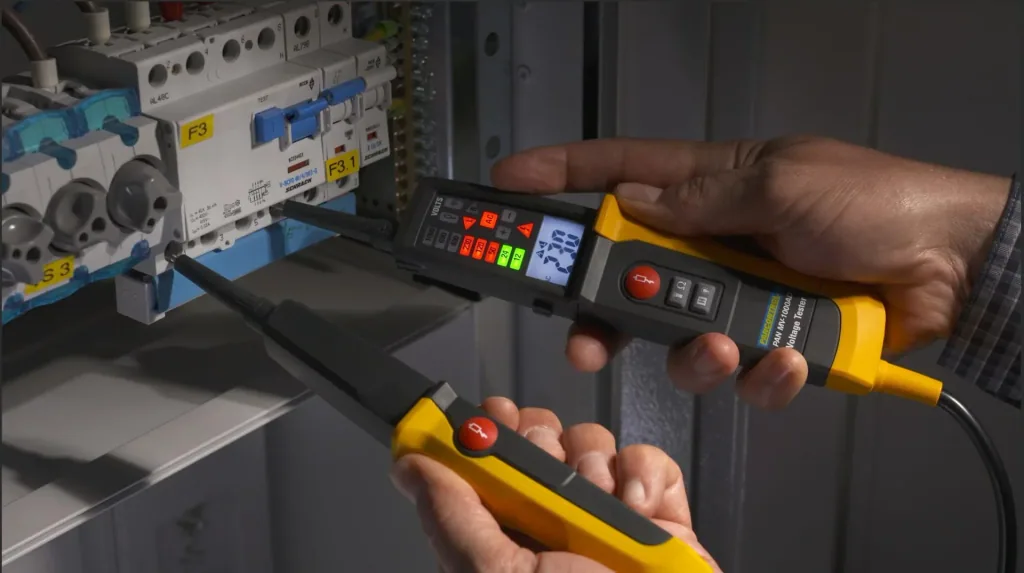

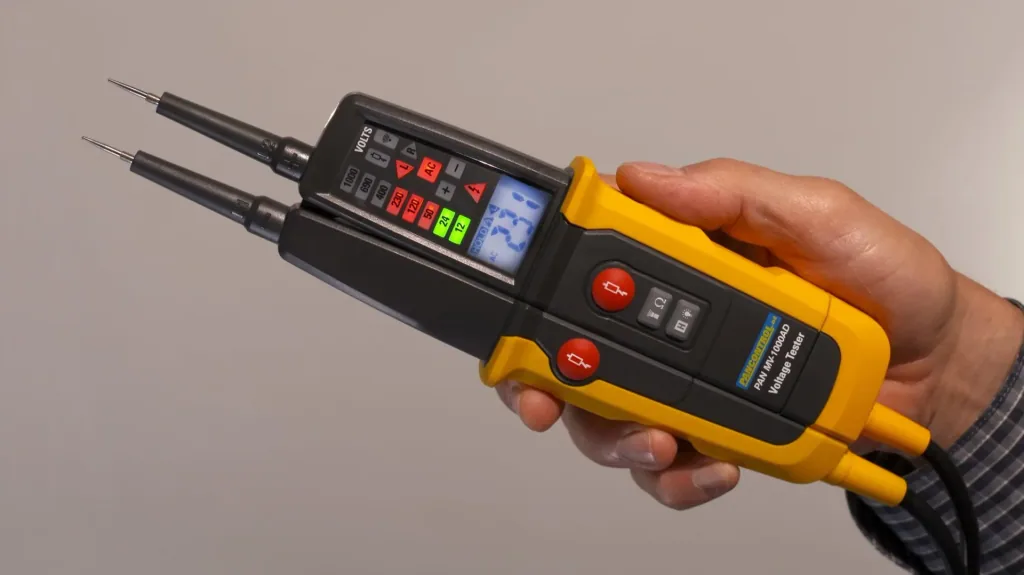

Voltage tester with LED and LCD display 1000V + rotating field display

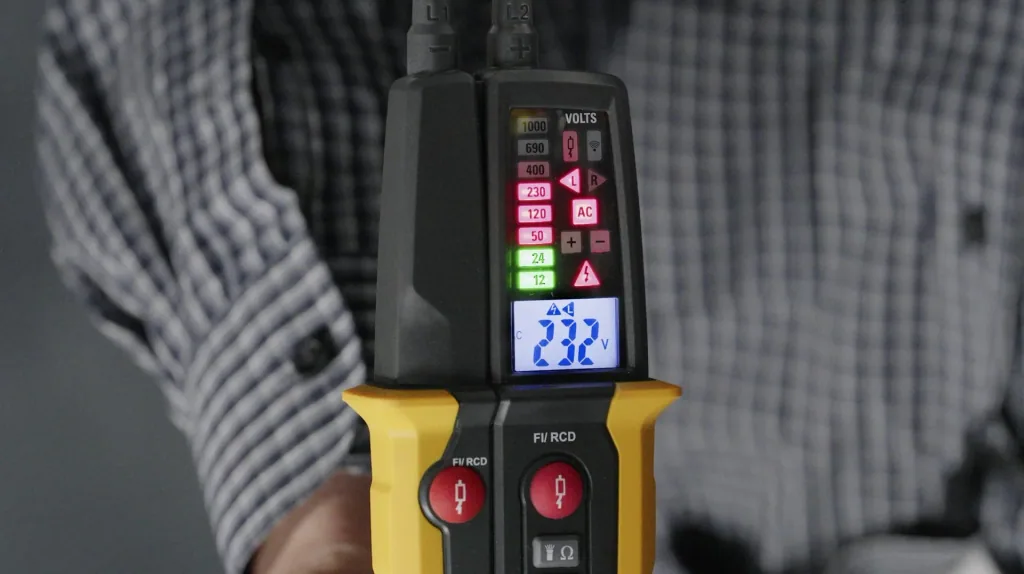

- Analog LED and illuminated digital LCD display
- Display value up to 1999
- 2-pole rotating field display
- Switchable load to suppress stray voltages
- Low voltages up to 24 V: green, dangerous voltages from 50 V: red
- FI test 30mA
- 1-pole phase test with acoustic alarm
- Resistance measurement
- LED flashlight
- Data hold
- Automatic shutdown
- Splash-proof and dust-proof IP 64
Technical specifications:
- DC voltage (V =): 12 - 24 - 50 - 120 V - 230 - 400 - 690 - 1000 V
- AC voltage (V ~): 12 - 24 - 50 - 120 V - 230 - 400 - 690 - 1000 V
- Resistance (Ω): 1 Ω - 1999 Ω
- Frequency range (Hz): 40 - 400 Hz

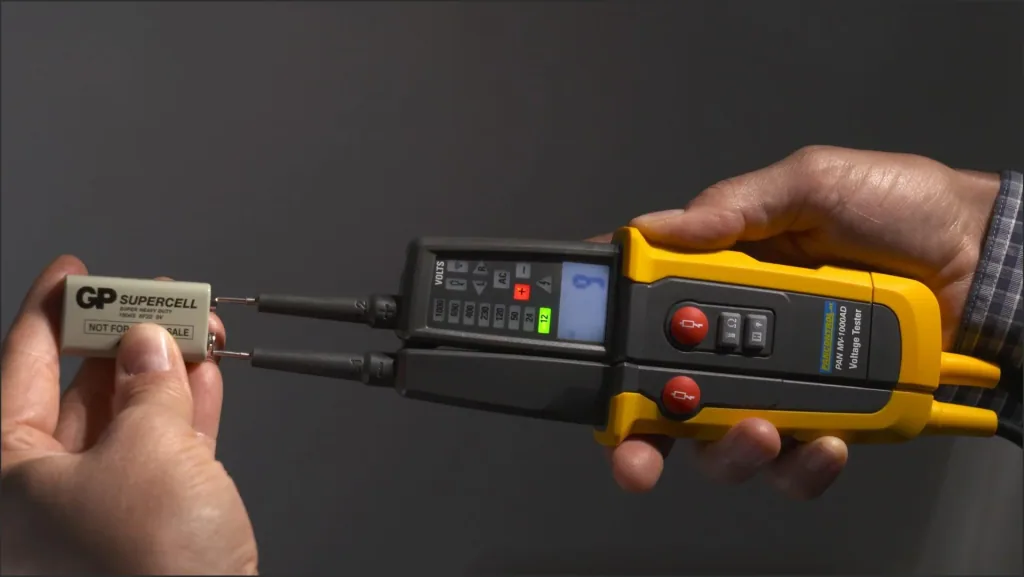

- Acoustic continuity tester •))): < 400 Ω
- Accuracy (%): 3.0% - 5.0%
Dimensions: 240 x 73 x 34 mm
Weight (gross / net) 493 / 207 g
Required battery(ies): 2x 1.5V AAA
Measurement category (CAT) CAT III 1000 V / CAT IV 600 V
Scope of delivery:
- Operating instructions
- Screw-on contact sleeves for sockets
| Battery type | |
|---|---|
| Battery type | Primary cells alkaline manganese (AlMn) up to 50g |
| Number of batteries | |
| Number of batteries | 2 |
