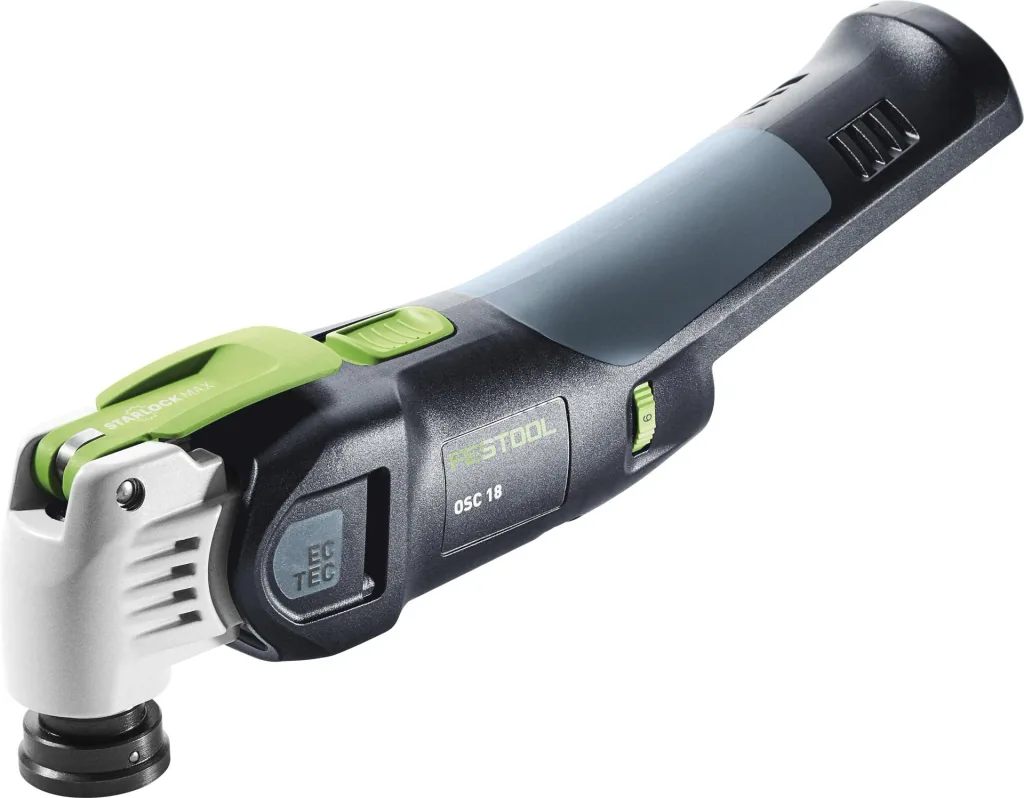

Battery Oszillierer OSC 18 Li E-Basic Vecturo

More precision with maximum performance

Precise cutouts on the scribe mark, precisely guided plunge cuts on delicate surfaces, and low-dust work, even overhead: this is what the cordless VECTURO OSC 18 stands for. The StarlockMax tool holder guarantees quick and tool-free tool changes. And the brushless EC-TEC motor with vibration isolation ensures maximum work progress while maintaining a high level of comfort. The interaction with the well-thought-out attachment and extraction accessories makes the VECTURO an intelligent system solution for the highest demands on performance, comfort and precision.

• Time-saving: Quick-clamping system with StarlockMax tool holder for tool-free and quick tool changes

• Well-thought-out: Optional system accessories enable precisely guided plunge cuts and low-dust sawing - even when working overhead

• Comfortable: Vibration and noise dampening for optimal working comfort. Thanks to the anti-vibration system, the housing and motor are completely decoupled.

• Fast: Brushless EC-TEC motor with continuously variable speed adjustment for maximum work progress.

• Mobile: Complete freedom of movement without cables thanks to the 18 V Li-Ion Compact battery pack.

Product highlights

• Faster results for the best results.

The cordless VECTURO OSC 18 with StarlockMax tool holder and EC-TEC motor guarantees maximum performance for the toughest applications. Also equipped with a quick-clamping system for quick and tool-free tool changes.

• Comfortable and safe.

Optimal working comfort thanks to minimized vibrations and running noise. Thanks to the anti-vibration system, the housing and motor are completely decoupled. For low-dust work, a mobile dust extractor can be connected to the optional extraction system.

• Innovative down to the last detail

The system accessories enable precise positioning at the marking, easy orientation along a guide rail, and precise adjustment of the immersion depth – simply attach to the adapter as required without tools. For low-dust and precise work.

Product details

• Quick-clamping system with StarlockMax tool holder

Short setup times thanks to tool-free changing of saw blades and accessories. Maximum power transmission to the saw blade.

• Anti-vibration system

Comfortable working thanks to complete decoupling of motor and housing.

• Maximum work progress

Oscillation angle of 2°/2° (left/right) for fast, precise work.

• Enormous versatility

Saw blades for wood, universal, and special applications.

• Powerful in use

EC-TEC motor with continuously variable speed control for consistently fast work progress.

• Perfect ergonomics

Slim housing with rubberized handle for comfortable working.

Main areas of application

• Notches, cutouts, and plunge cuts in wood, coated wood, painted wood, composite materials, GRP, plasterboard, Non-ferrous metals, plastics

• Cutting skirting boards, beams and profiles of all kinds; Cutting door frames and pipes to length

• Spatula for removing tile adhesive, old paint, adhesive residue, silicone, carpeting, and subfloor coatings

• Suitable for cutting marble joints, epoxy resin joints, trass joints, hard epoxy, and cement joints

• Removing glazing from windows (window kit)

Features

• EC-TEC Motor

The EC-TEC drive concept stands for exceptional power development with the lowest possible energy consumption.

• Electronic overload protection

Protects the motor if the tool blocks.

• Quick brake

For safe work when planing, sawing, and milling.

• MMC Electronic Digital

Processor-controlled power electronics "Multi Material Control" with adjustable and constant Speed ​​and temperature monitoring for material-appropriate work.

• Electronic monitoring of the winding temperature

Electronic monitoring of the winding temperature protects against motor damage.

Technical specifications

• Battery voltage: 18 V

• Oscillation: 10,000 – 19,500 min⁻¹

• Oscillation angle: 2 x 2.0°

• Tool holder: StarlockMax

• Battery capacity Li-Ion: 3.10 Ah

• Weight with Li-Ion: 1.60 kg

Noise and vibration values

• Sawing: Uncertainty (vibration) K: 1.50 m/s²

• Sawing: A-weighted sound pressure level Lp: 83.00 dB(A)

• Sawing: Total mean vibration value ah min.: 2.50 m/s²

• Sawing: A-weighted sound power level Lw: 94.00 dB(A)

• Sawing: Total mean vibration value ah max.: 7.00 m/s²

• Sawing: Total mean vibration value ah: 2.5 - 7 m/s²

• Sawing: Standard series EN 60745: EN 62841

• Sawing: Uncertainty (noise) K: 3.00 dB

Scope of delivery

• Cordless oscillator in the Systainer SYS 2 T-Loc

• Universal saw blade USB 78/32/Bi/OSC

• Without battery pack

• Without charger
