Table saw CS 50 EBG Set Precisio

Full power perfectly under control.

Whether in interior design, furniture construction, or exhibition stand construction: the PRECISIO CS 50 is the ideal solution for cross-cutting and rip cuts. This is especially true for changing applications, such as in the automotive industry. B. on assembly, it shows its strengths thanks to its low weight and many clever functions.

• Tool-free FastFix saw blade change

• Multifunctional pull handle: One handle, all functions in one hand

• Quickly switch from longitudinal to cross-cutting with the angle stop

• Sawing on both sides with little splintering thanks to the moving splinter guard

• Circumferential V-groove for inserting the angle stop

• Can be expanded as a sawing station with extensive accessories

Product highlights

• Faster to the best results:

With the angle stop you can quickly switch from longitudinal to cross-cutting. And FastFix saw blades for sawing that's right for the material at all times.

• Comfortable and safe:

All functions safely in one hand with a single handle: On/off, speed setting, short-cut, quick-off and pull mechanism.

• Better in the system:

Extension system for greater width, length and size. Extraction option for dust-free and healthy working.

Product details

• Tear-free cut on both sides

The moving splinter guard ensures the highest quality of results. This enables tear-free cuts on both sides.

• Tool-free saw blade change

The FastFix saw blade change makes it easier to work according to the material. The right blade can be inserted in no time.

• One handle for all functions

On/off switch, speed setting, short-cut, quick-off and pull mechanism – all important controls are integrated and clearly arranged in the multifunctional pull handle.

• Tools always within easy reach

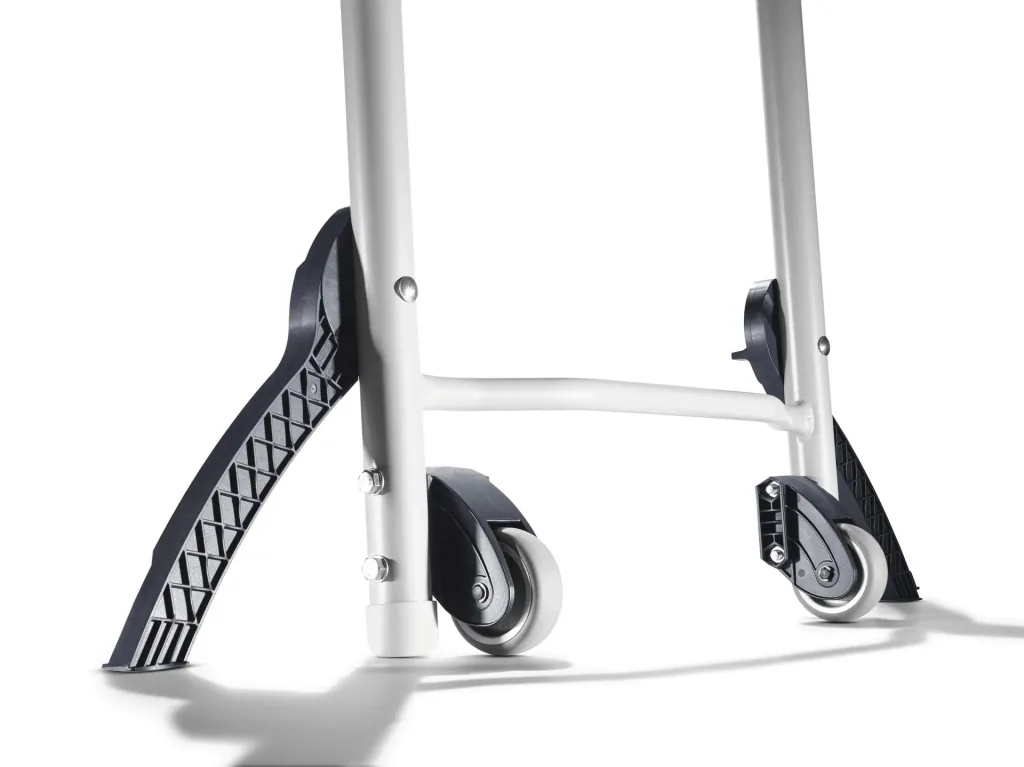

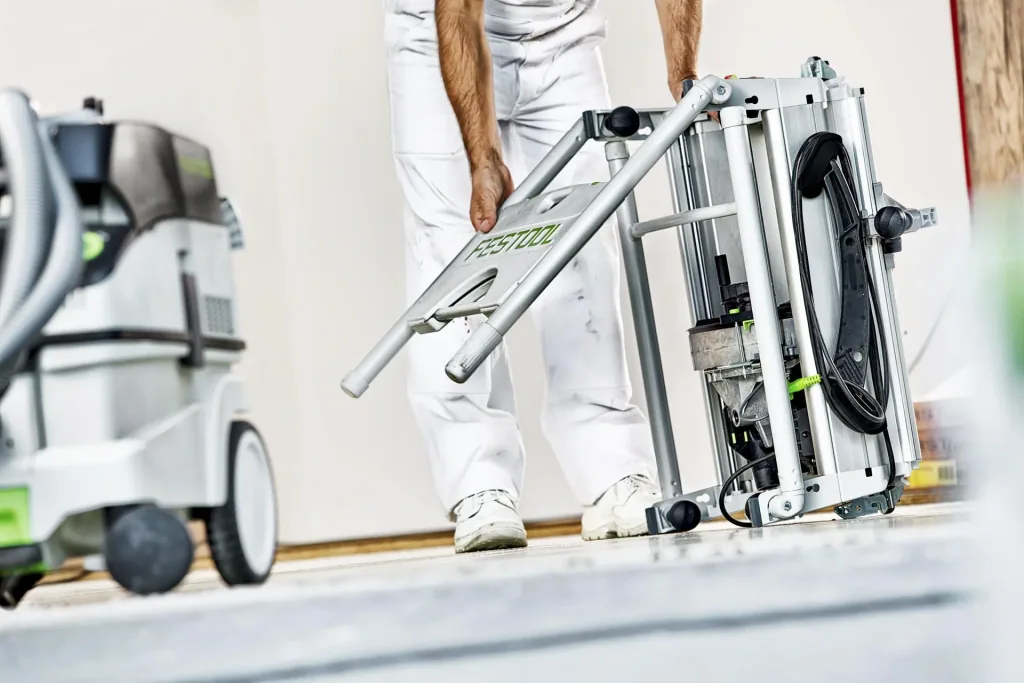

• Easy to transport

Lightweight and integrated folding legs. The CS 50 is easy to transport and can be set up in no time. Easy changing of the working height included.

• Always work at the correct angle

Angle cuts from -2° to 47° can be set quickly and easily on the CS 50 – thanks to the convenient controls.

• For long cross cuts

The CS 50 has a pull path of 304 mm. This allows cross cuts of up to 200 mm to be made, even at a 45° angle.

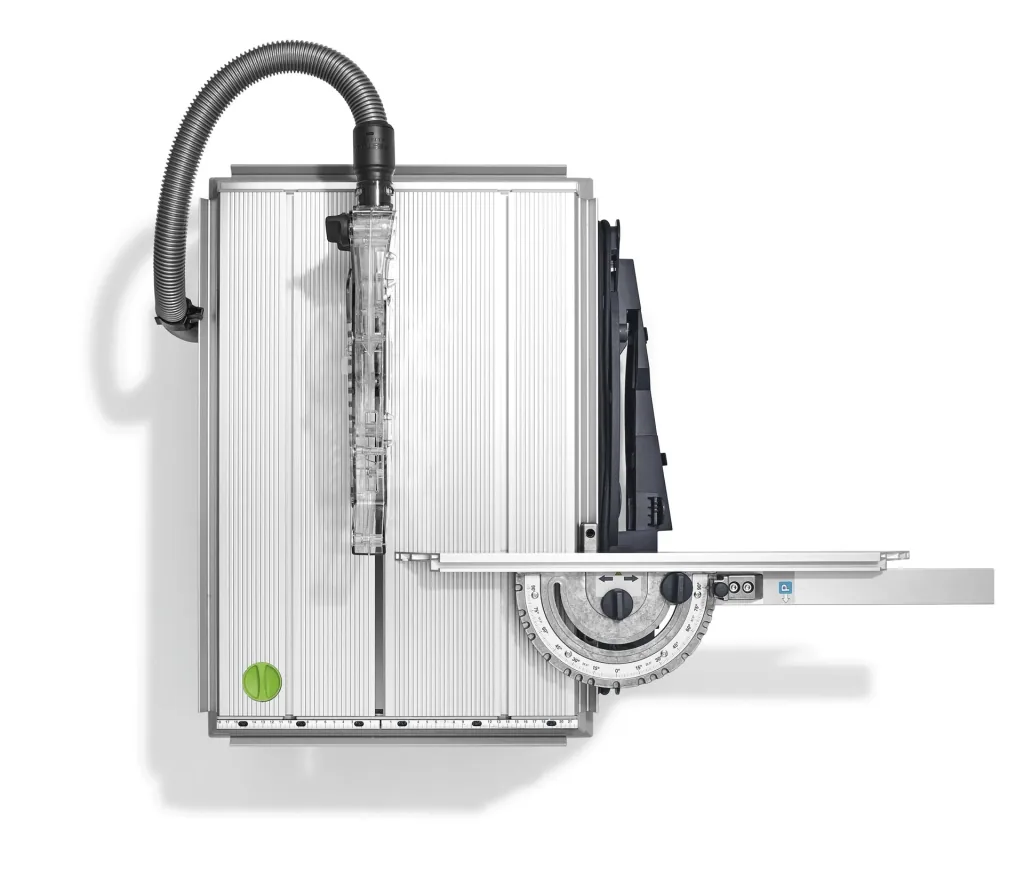

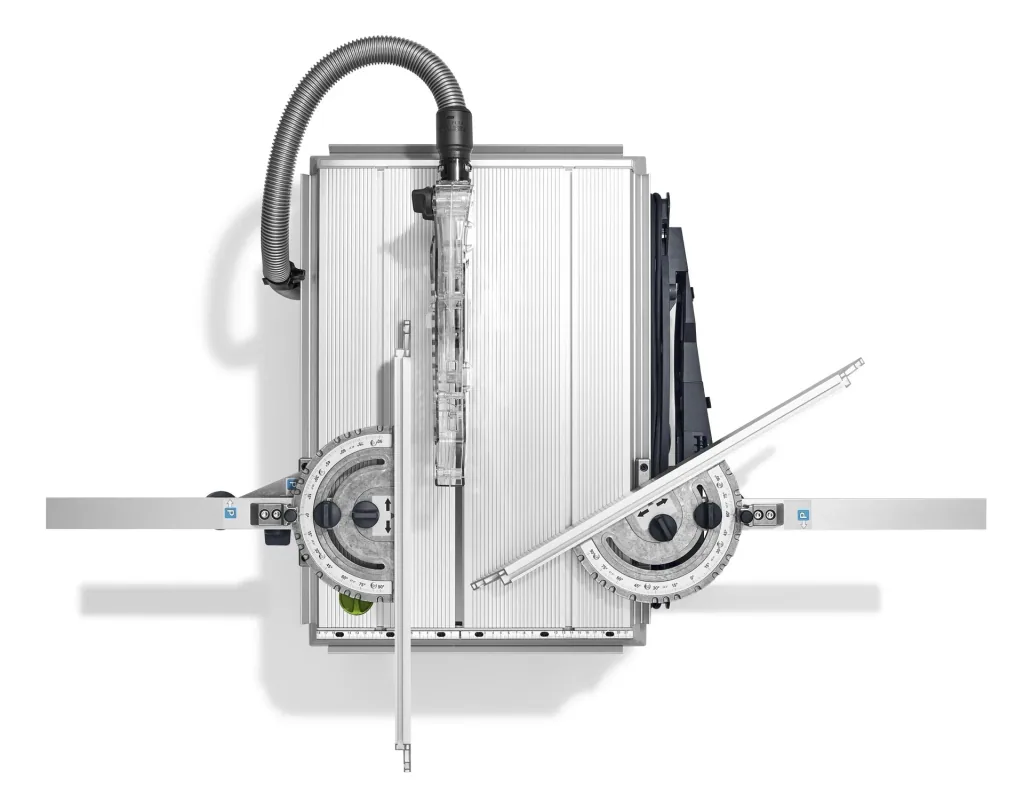

• Quick change from cross cuts to rip cuts

The 180° pivoting angle stop can be easily inserted on either side. The CS 50 can be converted from cross cuts to rip cuts in no time at all.

• Expandable

With a table extension, table extension, and sliding table, the PRECISIO can be easily transformed into a fully-fledged sawing station.

• The accessory garage

The 1,200-watt motor ensures powerful cutting performance, even with harder materials.

• Simply mobile. Simply stable

The accessory garage allows the push stick, protective cover, and angle stop to be safely and space-savingly stored directly next to the saw. This means that the system accessories are neatly stored and always within easy reach.

Main areas of application

• Cross cuts up to 300 mm wide, precise and fast by pulling the saw blade

• Cross cuts up to 200 mm wide at 45°

• Longitudinal cuts up to a cutting height of 52 mm

• Angle cuts from -2° to 47° thanks to the pivoting saw blade

• Concealed cuts thanks to the retractable riving knife – without disassembly

Performance features

• MMC Electronic Digital

Processor-controlled power electronics "Multi Material Control" with adjustable and constant speed and temperature monitoring for material-appropriate work.

• Splinter guard

The patented splinter guard for low-tear cuts on both sides when sawing.

• FastFix

Facilitates the change from Application tools for milling, sawing, planing, sanding, drilling, and screwing.

• CLEANTEC

Standard connection (27/36/50 mm) for dust extraction.

• Quick-release brake

For safe work when planing, sawing, and milling.

• Groove in the saw table

For secure fixing and as protection against accidental slipping of the workpieces using lever clamps.

Technical data

• Power consumption: 1,200 W

• Idle speed: 1,600 – 4,200 rpm

• Saw blade diameter: 190.00 mm

• Cutting height 90°/45°: 0 - 52/0 - 37 mm

• Inclination: 0 (-2)° - 45 (+47) °

• Traction path: 304.00 mm

• Table dimensions: 585 x 400 mm

• Table height folded: 316.00 mm

• Table height unfolded: 900.00 mm

• Dust extraction connection Ø: 27/36 mm

• Weight: 42.90 kg

• Cutting height: 52 mm

Noise and vibration values

• Idle: A-weighted sound power level Lw: 97.00 dB(A)

• Idle: EN 60745 series of standards: 61029-2-1

• Idle: Uncertainty (vibration) K: 1.50 m/s²

• Idle: A-weighted sound pressure level Lp: 84.00 dB(A)

• Idle: Total mean vibration value ah: 2.50 m/s²

• Idle: Uncertainty (noise) K: 3.00 dB

• Sawing: Total mean vibration value ah: 2.50 m/s²

• Sawing: Standard series EN 60745: 61029-2-1

• Sawing: Uncertainty (noise) K: 3.00 dB

• Sawing: A-weighted sound power level Lw: 103.00 dB(A)

• Sawing: A-weighted Sound pressure level Lp: 90.00 dB(A)

• Sawing: Uncertainty (vibration) K: 1.50 m/s²

Scope of delivery

Table saw CS 50 EBG set

• Extraction set CS 70 AB

• Support with transport roller

• HW universal saw blade 190 x 2.6 FF W32

• Allen key SW 6

• Folding legs CS 50 KB

• Longitudinal stop LA-CS 50/CMS

• Push stick ST

• Sliding table

• 3 x splinter guards

• Table extension VB

• Table extension VL

• Angle stop WA

• Accessory garage
