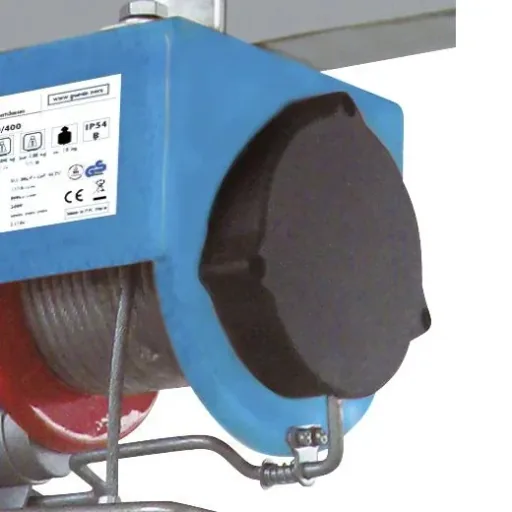

Electric rope hoist 100/200 KG
Guaranteed Secure Checkout
| Item number | WF-934821 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews

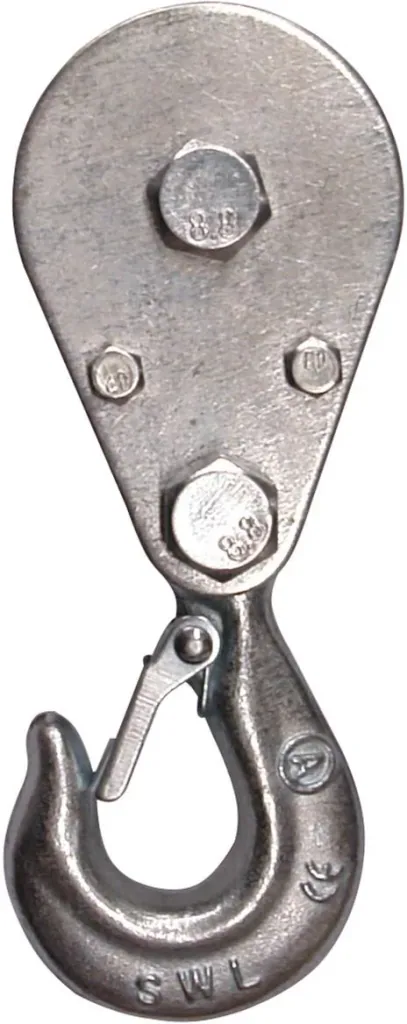

- Deflection pulley
- 2 fastening brackets
- 4x hexagon screws
- Motor and gear housing made of die-cast aluminum
- Max. lifting capacity without deflection pulley 100 kg / with 200 kg
Technical data
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 450 W
- Max. lifting capacity without deflection pulley: 100 kg
- Max. lifting height without deflection pulley: 11 m
- Ø lifting speed without deflection pulley: 10 m/min
- Max. lifting capacity with deflection pulley: 200 kg
- Max. Lifting height with pulley: 5.5 m
- Average lifting speed with pulley: 5 m/min
- Rope length: 12 m
- Rope diameter: 3.0 mm
- Operating cable length: 1.6 m
- Length: 340 mm
- Width: 180 mm
- Height: 120 mm
- Net weight: 9 kg
- Gross weight: 10.48 kg
| Weight | |
|---|---|
| Weight | 9 kg |
| Voltage | |
| Voltage | 230 V |
| Power output | |
| Power output | 450 W |
| Cable diameter | |
| Cable diameter | 3 mm |
| Drive | |
| Drive | 230 V motor |
| Cable length | |
| Cable length | 12 m |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

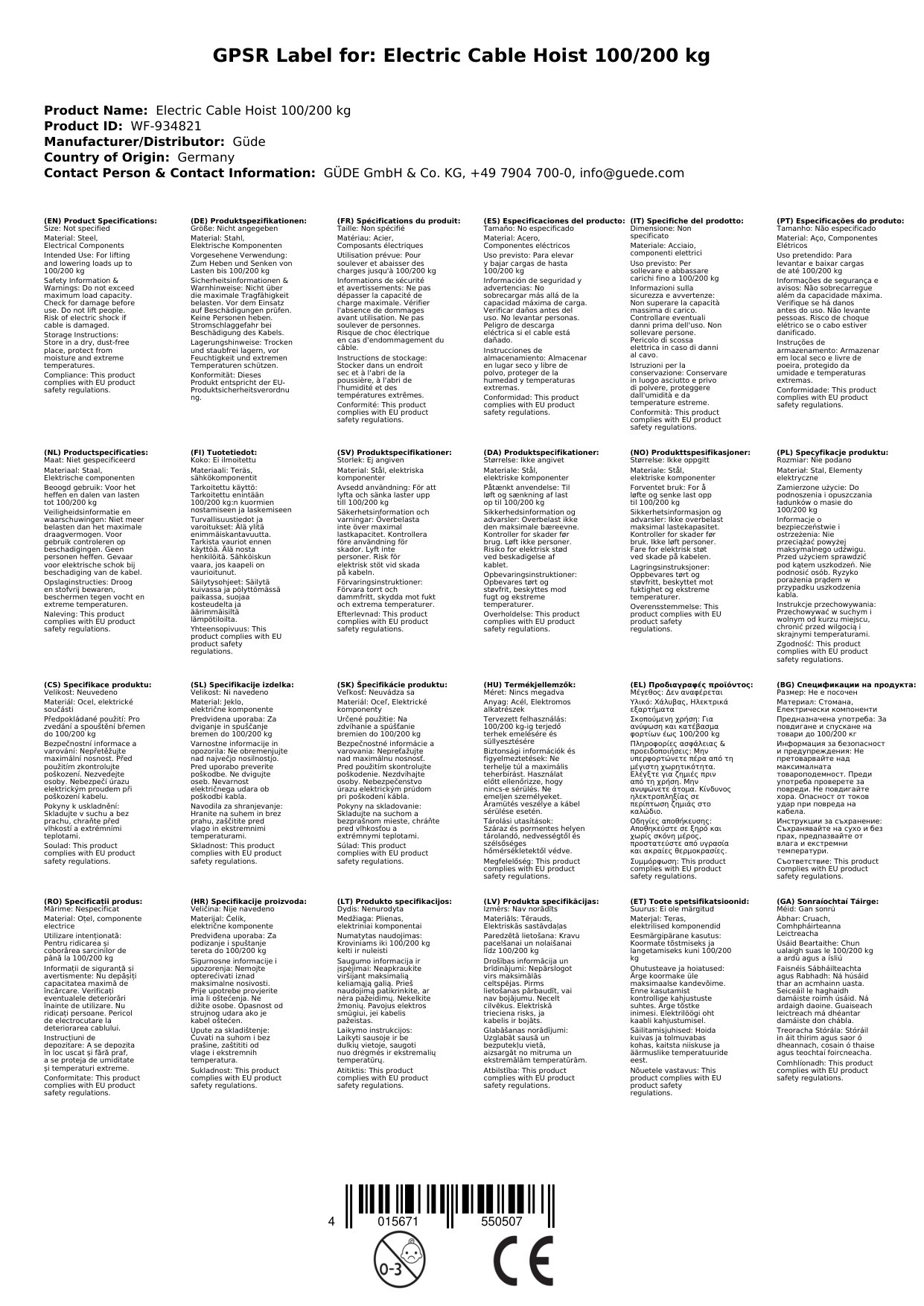

GPSR attachment:
