Electric rope hoist 300/ 600
Guaranteed Secure Checkout
| Item number | WF-934824 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews

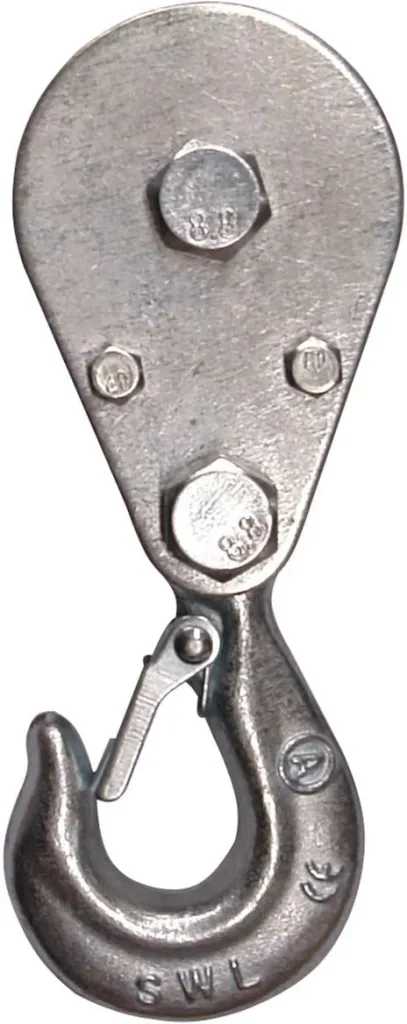

- Deflection pulley
- 2 mounting brackets
- 4x hexagon screws

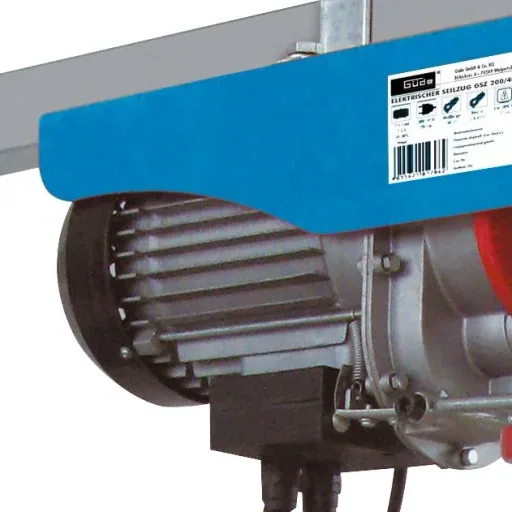

- Motor and gear housing made of die-cast aluminum
- Max. lifting capacity without deflection pulley 300 kg / with 600 kg
Technical data
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 1050 W
- Protection class: I
- Protection type (IP): 54 B
- Max. lifting capacity without deflection pulley: 300 kg
- Max. lifting height without deflection pulley: 11 m
- Ø lifting speed without deflection pulley: 10 m/min
- Max. Lifting capacity with pulley: 600 kg
- Max. lifting height with pulley: 5.5 m
- Average lifting speed with pulley: 5 m/min
- Rope length: 12 m
- Rope diameter: 4.5 mm
- Operating cable length: 1.6 m
- Length: 420 mm
- Width: 150 mm
- Height: 270 mm
- Net weight: 17.6 kg
- Gross weight: 18.12 kg
| External dimensions | |
|---|---|
| External dimensions | 420 x 150 x 270 mm |
| Cable diameter | |
| Cable diameter | 4.5 mm |
| Weight | |
| Weight | 17.6 kg |
| Power output | |
| Power output | 1,050 W |
| Drive | |
| Drive | 230 V motor |
| Cable length | |
| Cable length | 12 m |
| Voltage | |
| Voltage | 230 V |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

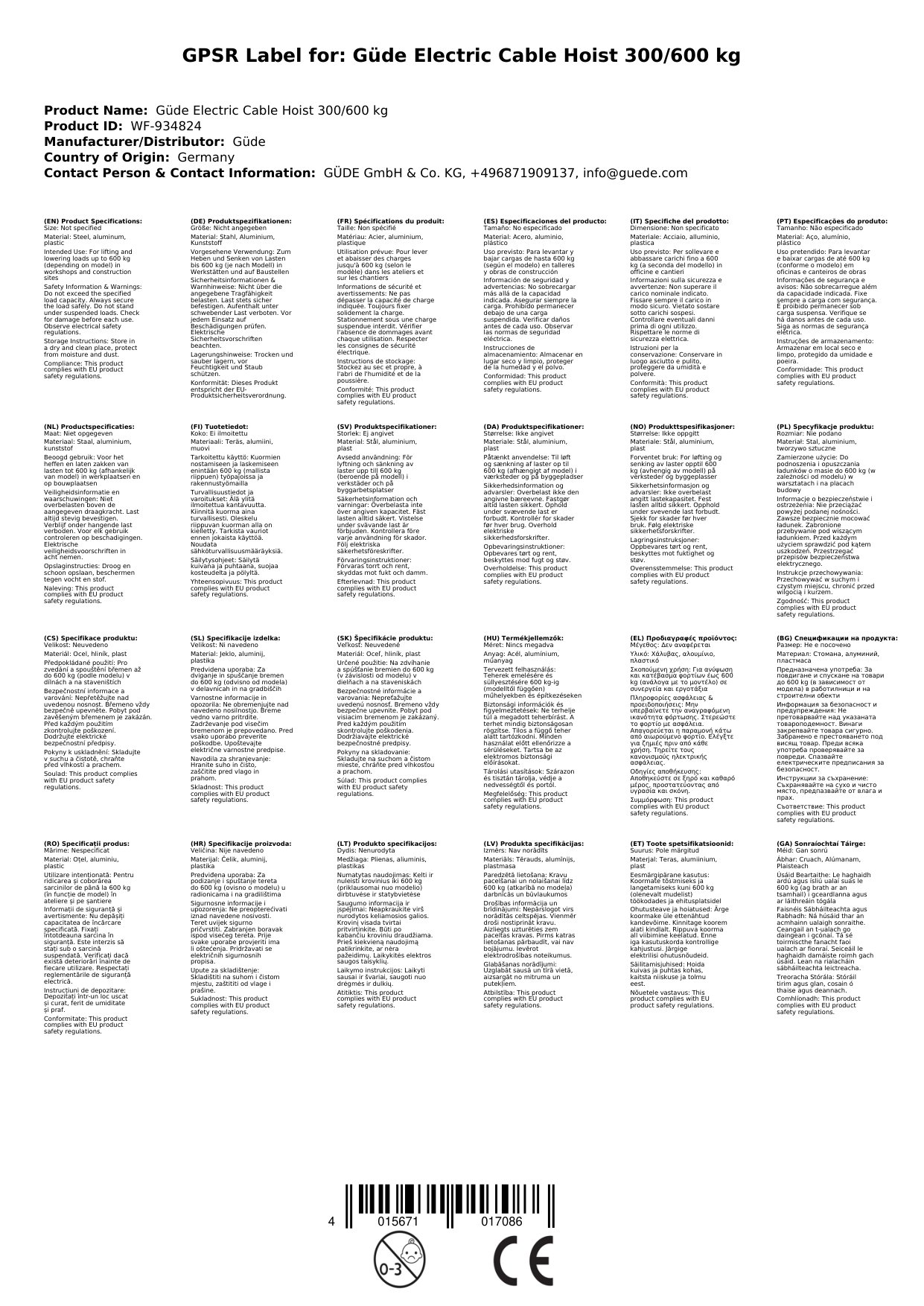

GPSR attachment:
