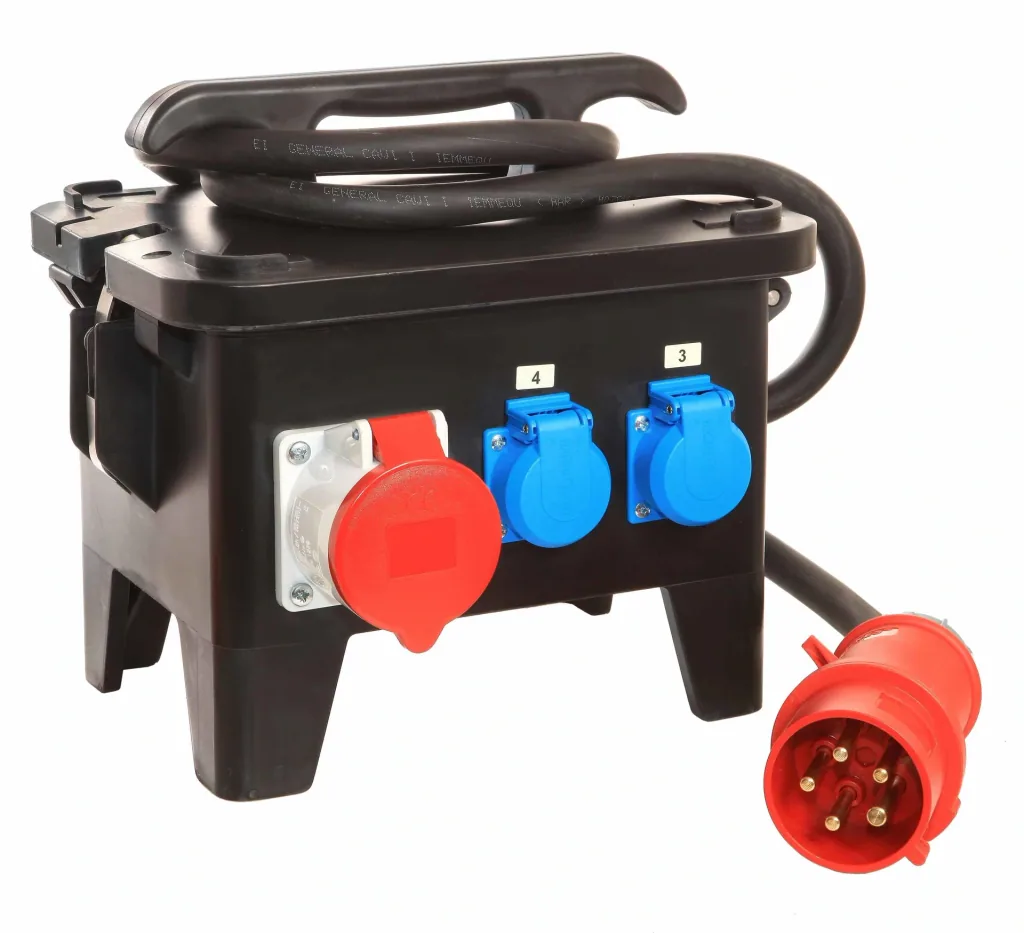

Construction site power distributor M5 connection CEE 400V, 32A, 3 sockets 230V, 1+2 CEE sockets 400V
Guaranteed Secure Checkout
| Item number | WF-936892 |
| Brand | AS Schwabe |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
• The power distributors are stackable and therefore extremely space-saving to store.
• Closed housing base with 77 mm ground clearance prevents water ingress.
• Easy replacement of the add-on sockets.
• Housing cover with stainless steel quick-release fasteners.
• Touch-safe – even when the cover is open – according to BGV A2.
• Additional security with a screw or padlock.
Input
• CEE 400 V, 32 A, 5-pin
• Plug with 2 m H07RN-F 5G6 heavy-duty rubber-sheathed cable
Output
• 3 230 V earthed sockets, 16 A,
• 1 CEE socket 400 V, 16 A, 5-pin
• 2 CEE sockets 400 V, 32 A, 5-pin
Fuse protection
• 1 residual current device 40 A
• 3 miniature circuit breakers C 16 A, 1-pin
• 1 miniature circuit breaker C 16 A, 3-pin
Technical data
• 400 V/ 230 V
| Number of 380V sockets | |
|---|---|
| Number of 380V sockets | 3 |
| Number of 230V sockets | |
| Number of 230V sockets | 3 |
